HELLA 1AL 009 998-001 DE/Halogen Headlight 90mm performance 12V round/SAE AMP- right/left

Name: HELLA 1AL 009 998-001 DE/Halogen Headlight 90mm performance 12V round/SAE AMP- right/left
Brand: Hella
SKU: 1AL-009-998-001
Price: 75.57 GBP
Availability: InStock

SKU: 1AL-009-998-001

In stock

1 3

Product Details Related Products Specifications Reviews

Product Details

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

Individual front design thanks to modular construction
Numerous application possibilities even in more demanding environments
Excellent light output and extremely homogeneous illumination with little scattered light from a 70 mm optic-free lens
Simple installation with pre-mounted adjusting screws

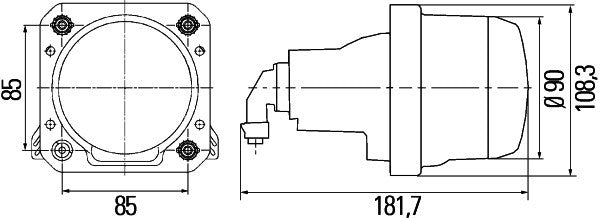

Width: 182mm - Height: 108mm - Depth: 182mm - Lamp Type: H7 - with bulbs/Electromagnetic Compatibility (EMC)
Light functions: 2 - with low beam/with high beam
Registration Type: ECE/CCC/SAE - for right-hand traffic

Equivalent OEMs

AGCO 63595600, AGCO 72477446, AGCO G334 900 160 020, AGCO V63595600, AMAZONE NA298, BUCHER 46-421, CATERPILLAR 539-0528, CLAAS 21659480, DEUTZ-FAHR 2.8039.313.0, FENDT 72477446, FENDT G 260 900 020 020, FENDT G334.900.160.020, FENDT G334900160021, FIAT 50525990, HAKO 05104150000, HYMER 1640519, HYMER 1893941, HYMER 1893941 H, HYMER 8015920, HYMER X1603.15.164, KOMATSU 20G-06-51530, KRONE 200842950, LAIKA 3062615, LANDINI 6603320A1, LINDNER 3005785, REFORM 900530209, STREETSCOOTER A12X213022_02, VALMET 63595600

Fits

Claas / Fendt

Specifications

Item Attributes	Item Attributes
Mounting Type	Fitting
Lamp Type	H7
Light Design	Halogen / DE
Voltage	12 V
Fitting Position	right / left
Width	182 mm
Height	108 mm
Depth	182 mm
Light Function	with high beam / with low beam
Light functions	2
Registration Type	ECE / SAE / CCC
Plug	AMP
Reference number	12.5
Left-hand/Right-hand Traffic	for right-hand traffic
Shape	round
Illuminated Area	90 mm
Diffusing Lens Material	Glass
Supplementary Article/Info 2	with bulbs / Electromagnetic Compatibility (EMC)
SVHC	7439-92-1; Lead
Assembly by qualified personnel required!	Assembly by qualified personnel required!
