Truck Wiring Kits (27)

Truck wiring kits provide the electrical foundation for safe and reliable lighting installations. Truckstop Group supplies a range of truck wiring kits designed for commercial vehicle lighting applications. Our selection includes relay kits, fused looms and plug-and-play solutions from trusted brands such as Lazer Lamps. Fast UK nationwide delivery available.

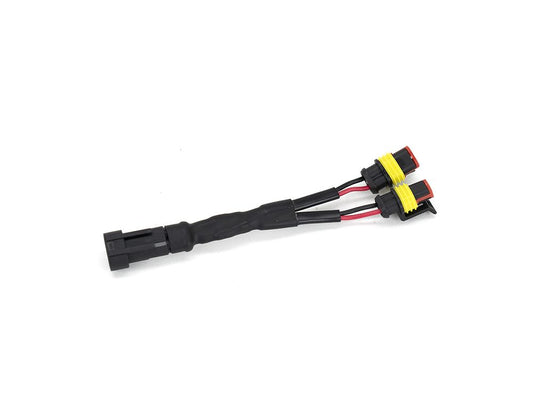

  • LAZER LAMPS Y-Splitter – Single-Lamp to Two-Lamp (2-Pin, Superseal)

    LAZER LAMPS Y-Splitter – Single-Lamp to Two-Lamp (2-Pin, Superseal)

    SKU: 2L-LP-Y

    The Y-Splitter complete with 2-pin superseal connections, is the ideal solution for wiring multiple low power Lazer Lamps avoiding the need for additional wiring kits run in parallel. The splitter is an ideal solution for wiring 3 or more lights, where the power rating of each light is 75W or less, and a corresponding 4-Lamp Wiring Kit doesn’t already exist for example. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: ST2 ST4 ST6 Triple-R 750 Triple-R 850 Linear-6 Linear-12 Sentinel 7''

    • Y-splitter for adapting Single Lamp connection to Two Lamp setup
    • Suitable for lamps 75W or less
    • 2-pin superseal connections
    £11.50 £13.80 inc. VAT
    £0.00 £11.50 £13.80 inc. VAT
    In stock Click & Collect Same Day Delivery

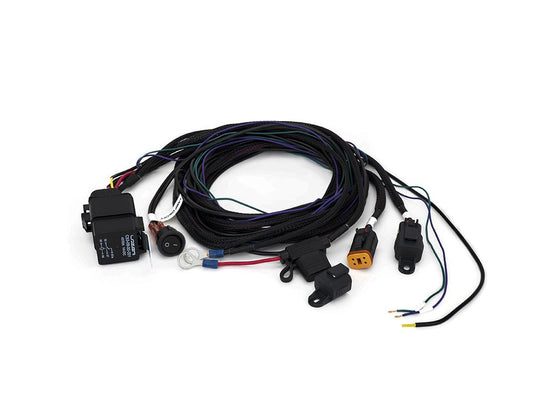

  • LAZER LAMPS Two-Lamp Harness Kit (4-Pin, Deutsch DT, 12V)

    LAZER LAMPS Two-Lamp Harness Kit (4-Pin, Deutsch DT, 12V)

    SKU: 2L-DT4-235

    The ideal solution for wiring a pair of Lazer Carbon-6 (Gen3) / RP Hyperspot High Performance LED Driving Lights. The setup is quick, easy, and reliable with Deutsch DT06-4S connectors and no configuration procedures. The kit features a 12V relay, fuse, and battery terminal at one end, and 2.35m of flex on the lamp cable(s). The wiring kit allows for the operation of two lamps via an on/off switch which can be mounted inside your vehicle’s cockpit. Compatiable with: Carbon-2 (Spot / Drive) Carbon-4 (Spot / Drive) Carbon-6 (Spot / Drive) RP Hyperspot Utility-50 with Beacon Utility-50 with Red Tail Light Utility-80 HD with Variable Brightness

    • Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
    • 2m cable lengths
    • Includes 12V relay and 25 amp fuse
    • Relay holder approved to IP53 when mounted in a vertical (upright) orientation
    • Deutsch DT06-4S connections
    • Includes on/off switch for independent operation of lights
    • Braided cable sections for added protection in engine bay
    £63.00 £75.60 inc. VAT
    £0.00 £63.00 £75.60 inc. VAT
    In stock Click & Collect Same Day Delivery
  • LAZER LAMPS Two-Lamp Wiring Kit (2 Pin, Deutsch DT, 12V)

    LAZER LAMPS Two-Lamp Wiring Kit (2 Pin, Deutsch DT, 12V)

    SKU: 2L-UT-200

    Two-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Deutsch connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 2m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: Linear-24 Flood Utility-25 Utility-25 MAXX Utility-45 Utility-50 Utility-80 HD (Heavy Duty) RP Spot

    • Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
    • 2m cable lengths
    • Includes 12V relay and 10 amp fuse
    • Relay holder approved to IP53 when mounted in a vertical (upright) orientation
    • 2-pin deutsch connections
    • Includes on/off switch for independent operation
    • Braided cable sections for added protection in engine bay
    £35.00 £42.00 inc. VAT
    £0.00 £35.00 £42.00 inc. VAT
    In stock Click & Collect Same Day Delivery

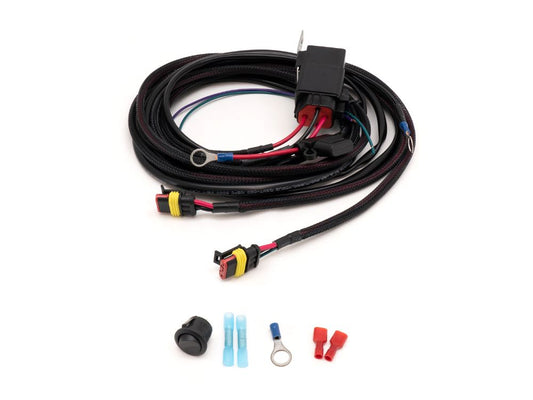

  • LAZER LAMPS Two-Lamp Wiring Kit (3-Pin, Superseal, 12V)

    LAZER LAMPS Two-Lamp Wiring Kit (3-Pin, Superseal, 12V)

    SKU: 2L-LP-PL-120

    Two-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 3-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 1.2m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: Air-55 Air-90 Triple-R 750 Triple-R 850 Triple-R 1000 Linear-12 Elite (with Position Light) Sentinel 7'' Elite Sentinel 9'' Sentinel 9'' Chrome

    • Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
    • 1.2m cable lengths
    • Includes 12V relay and 30 amp fuse
    • Relay holder approved to IP53 when mounted in a vertical (upright) orientation
    • Superseal connections
    • Includes optional on/off switch for independent operation of high beam
    • Braided cable sections for added protection in engine bay
    £43.00 £51.60 inc. VAT
    £0.00 £43.00 £51.60 inc. VAT
    In stock Click & Collect Same Day Delivery

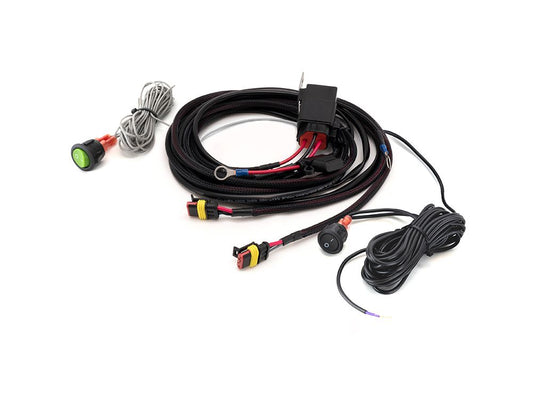

  • LAZER LAMPS Two-Lamp Wiring Kit - Long (2-Pin, Superseal, 12V)

    LAZER LAMPS Two-Lamp Wiring Kit - Long (2-Pin, Superseal, 12V)

    SKU: 2L-LP-320

    Two-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: ST Evolution (All Products) Triple-R 750 Elite Triple-R 850 Elite Triple-R 1000 Elite Linear-6 (Std / Elite) Linear-12 (Std / Elite) Linear-18 (Std) Sentinel 7''

    • Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
    • 3.2m cable lengths
    • Flat cable profile facilitates installation inside/along vehicle trim panels
    • Includes 12V relay and 35 amp fuse
    • Relay holder approved to IP53 when mounted in a vertical (upright) orientation
    • Superseal connections
    • Includes optional on/off switch for independent operation of high beam
    • Braided cable sections for added protection in engine bay
    £43.00 £51.60 inc. VAT
    £0.00 £43.00 £51.60 inc. VAT
    In stock Click & Collect Same Day Delivery

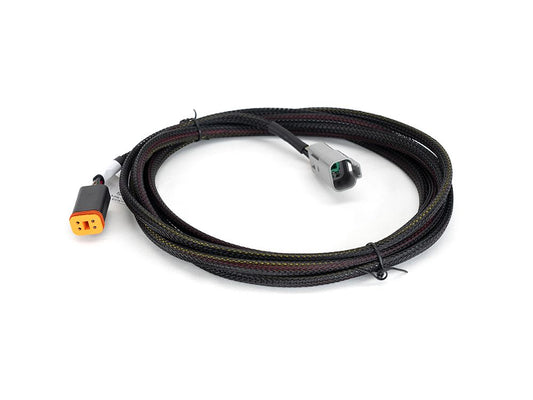

  • LAZER LAMPS 3m Cable Extension Kit (4-Pin, Deutsch DT)

    LAZER LAMPS 3m Cable Extension Kit (4-Pin, Deutsch DT)

    SKU: 8213-DT4

    The 3m cable extension kit is ideal for custom builds and mounting which requires additional wiring to the lights. Includes IP68 connectors at either end. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: Carbon-2 (Spot / Drive) Carbon-4 (Spot / Drive) Carbon-6 (Spot / Drive) RP Hyperspot Utility-50 with Beacon Utility-50 with Red Tail Light Utility-80 HD with Variable Brightness

    • 3m cable extension
    • Includes 4-pin Deutsch DT connectors
    • Suitable for Carbon-6, RP Hyperspot and Utility-80 HD with Variable Brightness
    • Compatible with any Deutsch DT Wiring Kit
    £35.00 £42.00 inc. VAT
    £0.00 £35.00 £42.00 inc. VAT
    In stock Click & Collect Same Day Delivery

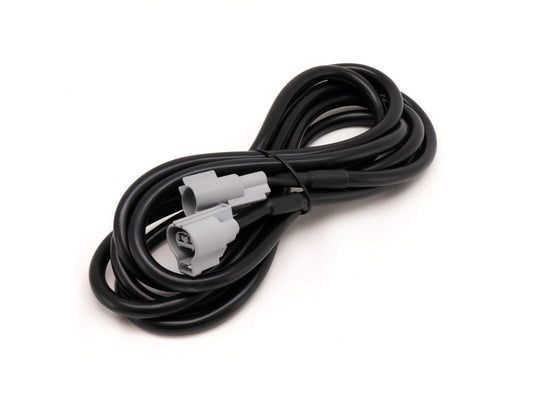

  • LAZER LAMPS 3m Cable Extension Kit (2-Pin, Econoseal)

    LAZER LAMPS 3m Cable Extension Kit (2-Pin, Econoseal)

    SKU: 8212

    The 3m cable extension kit is ideal for custom builds and mounting which requires additional wiring to the lights. Includes IP68 connectors at either end. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: T-16 Evolution T-24 Evolution T-28 Evolution Triple-R 16 Elite Triple-R 24 Elite Triple-R 28 Elite

    • 3m cable extension
    • Includes IP68 Connectors
    • Suitable for all non E-mark approved Lazer products (excluding Linear-48)
    • Compatible with Single-Lamp Wiring Kit (High Power, 12V)
    £22.00 £26.40 inc. VAT
    £0.00 £22.00 £26.40 inc. VAT
    In stock Click & Collect Same Day Delivery

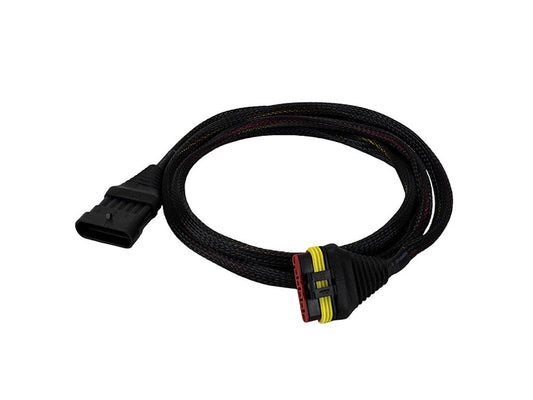

  • LAZER LAMPS 3m Cable Extension Kit (6-Pin, Superseal)

    LAZER LAMPS 3m Cable Extension Kit (6-Pin, Superseal)

    SKU: 8213-6C

    The 3m cable extension kit is ideal for custom builds and mounting which requires additional wiring to the lights. Includes IP68 connectors at either end. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: Triple-R 1000 Beacon

    • 3m cable extension
    • Includes 6-pin TE Superseal connectors
    • Suitable for Triple-R Beacon products
    • Compatible with Lazer Beacon Wiring Kit (12V)
    £35.00 £42.00 inc. VAT
    £0.00 £35.00 £42.00 inc. VAT
    In stock Click & Collect Same Day Delivery

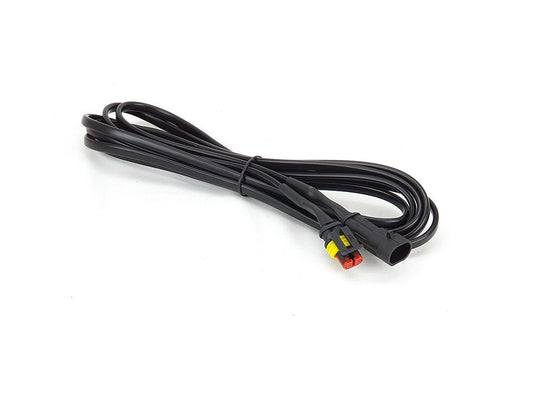

  • LAZER LAMPS 3m Cable Extension Kit (2-Pin, Superseal)

    LAZER LAMPS 3m Cable Extension Kit (2-Pin, Superseal)

    SKU: 8213-2C

    The 3m flat cable extension kit is ideal for custom builds and mounting which requires additional wiring to the lights. Includes IP68 connectors at either end. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring into your vehicle system Compatible with: ST Evolution (All Products) Triple-R 750 Elite (Gen2) Triple-R 850 Elite (Gen2) Triple-R 1000 Elite (Gen2) Linear-6 (Std / Elite) Linear-12 (Std / Elite) Linear-18 (Std / Elite) Linear-36 Linear-42 Linear-48 Sentinel 7'' Sentinel 9'' Elite

    • 3m Cable Extension
    • Includes IP68 Connectors
    • Suitable for ST, Linear and Triple-R lamps (ECE approved models only)
    £11.50 £13.80 inc. VAT
    £0.00 £11.50 £13.80 inc. VAT
    In stock Click & Collect Same Day Delivery

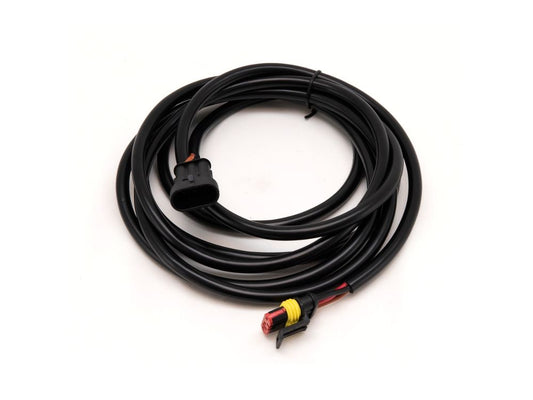

  • LAZER LAMPS 3m Cable Extension Kit (3-Pin, Superseal)

    LAZER LAMPS 3m Cable Extension Kit (3-Pin, Superseal)

    SKU: 8213-3C

    The 3m cable extension kit is ideal for custom builds and mounting which requires additional wiring to the lights. Includes IP68 connectors at either end. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: Triple-R 750 Triple-R 850 Triple-R 1000 Triple-R 1250 Linear-12 Elite (with Position Light) Linear-18 Elite (with Position Light) Sentinel 7'' Elite Sentinel 9'' Sentinel 9'' Chrome Sentinel 9'' Elite (with Position Light)

    • 3m cable extension
    • Includes 3-pin TE Superseal connectors
    • Suitable for all E-mark approved Lazer products (with Position Light)
    • Compatible with any Wiring Kit (Position Light, 12V)
    £13.50 £16.20 inc. VAT
    £0.00 £13.50 £16.20 inc. VAT
    In stock Click & Collect Same Day Delivery

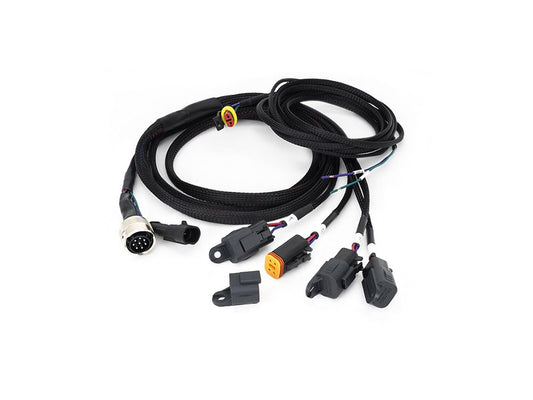

  • LAZER LAMPS Four-Lamp Harness Kit with ITT Connector (4-Pin, Deutsch DT, 12V)

    LAZER LAMPS Four-Lamp Harness Kit with ITT Connector (4-Pin, Deutsch DT, 12V)

    SKU: 4L-CS-185

    The ideal solution for wiring 4x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an ITT Cannon Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 1.85m of flex on the lamp cable(s) to the 8-pin Trident Ringlock ITT Cannon Connector (compatible with Skoda R5 rally cars as an example) Additional signal wires from the ITT Connector are included for operation of lamps’ in either: ‘Fog’ mode (purple wire), or ‘E-mark’ mode (green wire). All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts). Compatiable with: - Carbon-6 DRIVE (Gen3) - Carbon-6 SPOT (Gen3)

    • Four-Lamp Wiring Kit for Carbon-6 (Gen3) LED spotlights / 4-Way Rally Pod System
    • 2m cable length
    • ITT Connector connections
    • Additional extension cable for Fog and E-Mark modes
    • Braided cable sections for added protection in engine bay
    £135.00 £162.00 inc. VAT
    £0.00 £135.00 £162.00 inc. VAT
    In stock Click & Collect Same Day Delivery

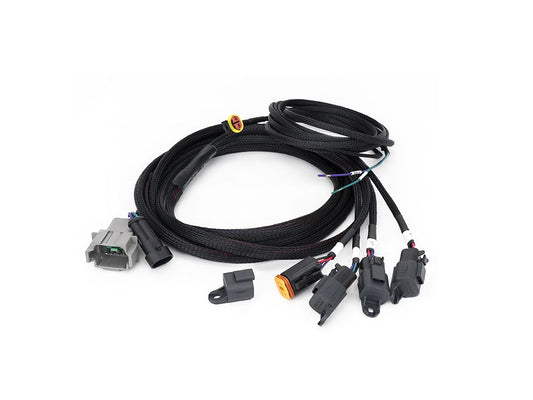

  • LAZER LAMPS Four-Lamp Harness Kit with DT04-08 Connector (4-Pin, Deutsch DT, 12V)

    LAZER LAMPS Four-Lamp Harness Kit with DT04-08 Connector (4-Pin, Deutsch DT, 12V)

    SKU: 4L-CS-320

    The ideal solution for wiring 4x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an DT04-08 Deutsch Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 3.2m of flex on the lamp cable(s) to the 8-pin DT04-08 Connector (compatible with Citroen C3 rally cars as an example). Additional signal wires from the DT04-08 Connector are included for operation of lamps’ in either: ‘Fog’ mode (purple wire), or ‘E-mark’ mode (green wire). All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts). Compatiable with: - Carbon-6 DRIVE (Gen3) - Carbon-6 SPOT (Gen3)

    • Four-Lamp Wiring Kit for Carbon-6 (Gen3) LED spotlights / 4-Way Rally Pod System
    • 3.2m cable lengths
    • DT04-08 Deutsch connections
    • Additional extension cable for Fog and E-Mark modes
    • Braided cable sections for added protection in engine bay
    £115.00 £138.00 inc. VAT
    £0.00 £115.00 £138.00 inc. VAT
    In stock Click & Collect Same Day Delivery

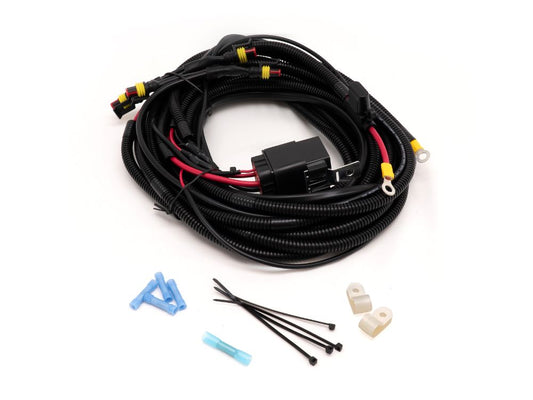

  • LAZER LAMPS Four-Lamp Wiring Kit with Splice (2-Pin, Superseal, 12V)

    LAZER LAMPS Four-Lamp Wiring Kit with Splice (2-Pin, Superseal, 12V)

    SKU: 8230-12V-SP

    The ideal solution for wiring four Lazer high performance LED lights, most commonly on pick-up trucks where the requirement is for 2x lights at the front of the vehicle, and 2x lights on the roof/sports bar. Only suitable where lights without additional position light function are being used. The setup is quick, easy, and reliable with 2-pin superseal connection and no configuration procedures. The kit features a 12V relay, 35A fuse, a battery terminal at one end, and 1.5m and 6.5m of flex on the lamp cables, and allows for the operation of Lazer products in parallel with the standard high beam driving lights on your vehicle. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: ST Evolution (All Products) Triple-R 750 Elite Triple-R 850 Elite Triple-R 1000 Elite Linear-6 (Std / Elite) Linear-12 (Std / Elite) Linear-18 (Std)

    • Four-Lamp Wiring Kit for Lazer driving lights (2-Pin, Superseal connections)
    • 1.5m / 6.5m cable lengths
    • Includes 12V relay and 35 amp fuse
    • Relay holder approved to IP53 when mounted in a vertical (upright) orientation
    • 2-pin Superseal connections
    • Allows for operation of lights in parallel with standard high beam lights
    • Conduit cable sections for added protection within engine bay
    £63.00 £75.60 inc. VAT
    £0.00 £63.00 £75.60 inc. VAT
    In stock Click & Collect Same Day Delivery

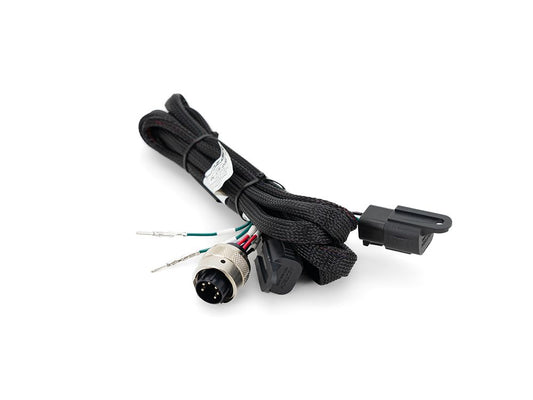

  • LAZER LAMPS Two-Lamp Harness Kit with ITT Connector (4-Pin, Deutsch DT, 12V)

    LAZER LAMPS Two-Lamp Harness Kit with ITT Connector (4-Pin, Deutsch DT, 12V)

    SKU: 2L-CS-200

    The ideal solution for wiring 2x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an ITT Cannon Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 1.85m of flex on the lamp cable(s) to the 8-pin Trident Ringlock ITT Cannon Connector (compatible with Skoda R5 rally cars as an example) Additional signal wires from the ITT Connector are included for operation of lamps’ in ‘E-mark’ mode (green wires). All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts). Compatiable with: - Carbon-6 DRIVE (Gen3) - Carbon-6 SPOT (Gen3)

    • Two-Lamp Wiring Kit for Carbon-6 (Gen3) LED spotlights
    • 2m cable length
    • ITT Connector connections
    • Additional extension cables for E-Mark mode
    • Braided cable sections for added protection in engine bay
    £125.00 £150.00 inc. VAT
    £0.00 £125.00 £150.00 inc. VAT
    In stock Click & Collect Same Day Delivery

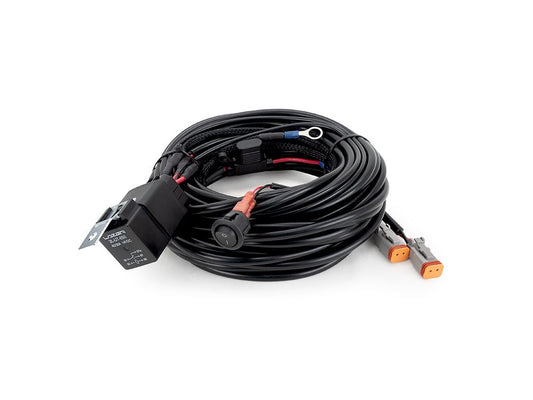

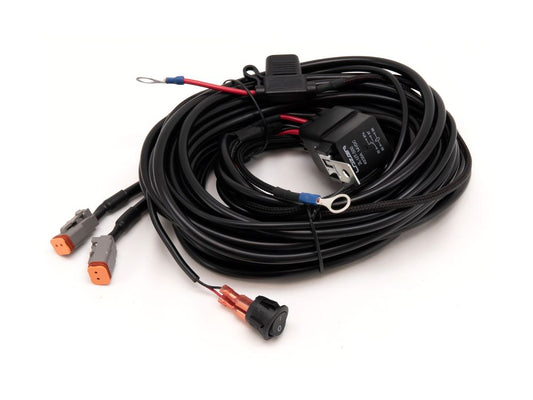

  • LAZER LAMPS Two-Lamp Wiring Kit - Long (2 Pin, Deutsch DT, 12V)

    LAZER LAMPS Two-Lamp Wiring Kit - Long (2 Pin, Deutsch DT, 12V)

    SKU: 2L-UT-650

    Two-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Deutsch connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 6.5m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: Linear-24 Flood Utility-25 Utility-25 MAXX Utility-45 Utility-50 Utility-80 HD (Heavy Duty) RP Spot

    • Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
    • 6.5m cable lengths
    • Includes 12V relay and 20 amp fuse
    • Relay holder approved to IP53 when mounted in a vertical (upright) orientation
    • 2-pin deutsch connections
    • Includes on/off switch for independent operation
    • Braided cable sections for added protection in engine bay
    £63.00 £75.60 inc. VAT
    £0.00 £63.00 £75.60 inc. VAT
    In stock Click & Collect Same Day Delivery

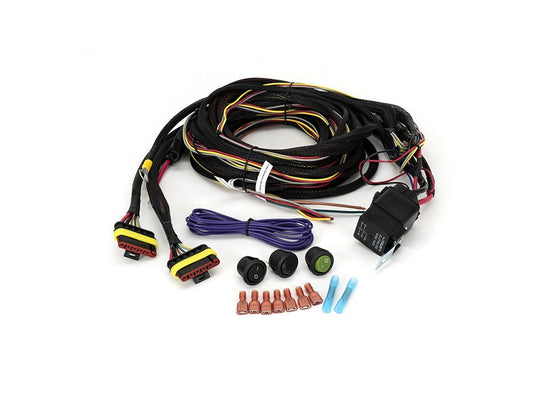

  • LAZER LAMPS Two-Lamp Wiring Kit (6-Pin, Superseal, 12V)

    LAZER LAMPS Two-Lamp Wiring Kit (6-Pin, Superseal, 12V)

    SKU: 2L-LP-6C-350

    The ideal solution for wiring a pair of Lazer high performance LED spotlights, which also feature integrated Side/Position Light and Beacon function. The setup is quick, easy, and reliable with 6-pin superseal connections and no configuration procedures. The kit features a 12V relay (in waterproof housing), 30A fuse, a battery terminal at one end, and 3.5m of flex on lamp cables, and allows for the operation of Lazer products in parallel with the standard lighting on the vehicle. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring into your vehicle system. Compatible with: Triple-R 1000 with Beacon

    • Two-Lamp Wiring Kit for Lazer products with integrated Position Light and Beacon function
    • 3.5m cable lengths
    • Includes 12V relay and 30 amp fuse
    • Superseal connections
    • High beam trigger wire allows for operation of lights in parallel with standard high beams
    • Conduit cable sections for added protection in engine bay
    £98.00 £117.60 inc. VAT
    £0.00 £98.00 £117.60 inc. VAT
    In stock Click & Collect Same Day Delivery

Shop truck wiring kits at Truckstop Group

Proper wiring is essential when installing auxiliary lighting on trucks and commercial vehicles. Incorrect connections can lead to voltage drop, overheating, blown fuses or electrical faults, particularly when high-output LED lighting is involved. Wiring kits simplify installation by providing correctly rated components and structured layouts.

Truck wiring kits typically include relays, fuses, switches and pre-terminated cables designed to handle the power demands of auxiliary lights safely. Using a dedicated loom helps isolate lighting circuits from the vehicle’s main electrical system, reducing the risk of interference or damage. On modern vehicles, wiring kits may also be used alongside integration modules to ensure compatibility with CANbus systems.

Selecting the right wiring kit depends on the lighting type, power requirements and vehicle configuration. Quality kits are designed to withstand vibration, moisture and temperature fluctuations common in commercial environments.

Truckstop Group stocks wiring solutions trusted by workshops and fleet operators, supporting professional installations that prioritise safety, reliability and long-term performance.

Frequently Asked Questions

Do LED lights need relays?

In most cases, yes. Relays help manage current draw and protect switches and vehicle wiring from overload.

Can one wiring kit power multiple lights?

Some kits are designed to support multiple lights, but power requirements should always be checked to ensure safe operation.

Are wiring kits vehicle-specific?

Many are universal, while others are designed for specific applications or lighting types. Integration kits may also be required on newer vehicles.

Can I install lighting without a wiring kit?

It’s possible, but not recommended. Wiring kits reduce risk, simplify installation and improve long-term reliability.

Do wiring kits affect vehicle warranties?

Correctly installed wiring kits that do not alter factory wiring are less likely to cause issues, but it’s always best to follow manufacturer guidance.

How can I tell if the wiring kit will work with my truck?

Simple. If you add the item to your cart, and let us know your vehicle registration using the option on the cart page, we'll check the part fits before we process your order. If it doesn't match the vehicle, we'll get in touch to discuss your options.

Do you sell truck wiring kits near me?

At Truckstop, we offer same-day delivery on all parts in stock placed before 11am to Worcestershire, Warwickshire, Herefordshire & Gloucestershire. For orders to the UK mainland, we offer next-day delivery by courier. You can learn more about our delivery solutions here.
