Collection: Truck Spotlights (130)

LEDSON Pollux9+ Generation 3: More powerful and smarter than ever

With the Pollux9+ Generation 3, you enhance your driving experience with the latest technology from Ledson in an auxiliary light filled with features. With an impressive 120W power output and the groundbreaking feature of pulse-controlled Powerboost, this third generation of Pollux9+ offers increased flexibility and improved brightness when needed most.

Pollux9+ Generation 3 provides outstanding brightness and range to ensure superior visibility and safety in all driving conditions. With its robust design, the Pollux9+ Generation 3 is engineered to withstand tough conditions and is ready to deliver superior performance for years to come.

Pulse-controlled Powerboost - It doesn't get smoother than this.

The Pollux9+ Gen3 comes equipped with Powerboost – an extra power mode for those moments when you need maximum illumination. You can conveniently switch between standard and power boost mode from the driver's seat in your vehicle. With the new generation of Powerboost from Ledson, switching modes is easy with the light switch through a few simple steps.

Switch to Powerboost mode with "10+10+5"

This is done most easily with the 'light switch' when the light switch is in off or parking light mode.

Turn on the auxiliary light for about 10 seconds (between 7-13 seconds)

Flash the auxiliary light rapidly 10 times (within 10 seconds)

On the eleventh flash, hold the light on and after about 5 seconds the Powerboost function will automatically switch on or off.

TIR reflectors

TIR stands for Total Internal Reflection and means that all light is effectively reflected and directed before it is emitted from the reflector. Spill light (the light that is not directed but disappears "unfocused" from the lighting without actually serving any purpose) is minimized. A traditional reflector directs and focuses most of the light but far from all; Pollux 9+ has these TIR reflectors for maximum light.

Features:

E-marked, ECE R112 / R10 / R7 (white position light)
Equipped with pulse-controlled Powerboost
EMC secured (does not interfere with radio signals)
With position light (4 pcs LED) yellow-orange or xenon white (connect the colour you prefer)
"Driving beam" light pattern (33491236) or "Spot Beam" light pattern (33491237)
Driving Beam Range: 407 m (1 lux), Powerboost: 659 m (1 lux)
4200 lumens (theoretical), 3500 lumens (actual)
Powerboost 13000 lumens (theoretical), 10500 lumens (actual)
Colour temperature 5000K (Neutral White)
TIR optical system (Total Inner Reflection)
Pressure equalization membrane
36-month warranty

Technical Data:

120W (12 x 10W LED)
Nominal power 92.4 W
IP68 & IP69K (water/dustproof)
DT connector (4-pin) included
Electronic heat management
Voltage 9-36 V Load 3.2 A @ 12 V and 1.6 A @ 24 V Load
Powerboost 9.8 A @ 12 V and 4.6 A @ 24 V

Dimensions & Weight:

Width: 218 mm
Height: 234.5 mm (including bracket)
Depth: 68.5 mm
Weight: 1.9 kg
Cable length: 650 mm

Included:

Ledson Pollux9+ Generation 3 LED extra light
Bolts and screws to attach the extra light with either one or two mounting points
DT connector (4-pin)
Installation instructions

Cable Installation Instructions (detailed installation instructions are included with the product):

Red: Extra light (+)
Black: Extra light / Position lights (- ground)
White: Position lights (+) white light
Yellow: Position lights (+) yellow-orange light

NOTE: The DT connector must not be cut, as it increases the risk of moisture damage and voids the warranty.

• Clear, brilliant, cold white LED light
• Long-lasting light output
• Immediate response when headlight flashing operated
• Multi-voltage: suitable for 12 V and 24 V
• High beam with reference number 25 and with position light
• Particularly energy-efficient and fuel-saving
• Power consumption at 12 V: position light 1.3 W and high beam 8 W
• Power consumption at 24 V: position light 2.7 W and high beam 8 W
• ECE type-approved
• Weight 980 g

The HELLA auxiliary high beam headlamps offer that something extra: more light, so you can stay on top of the road in every driving situation. In turn, this increases the safety of every road user. HELLA's indisputable quality and use of state-of-the-art technology are a given. Tried-and-tested standard solutions or innovative LED technology: whatever it may be, the HELLA headlamp series is specially tailored to the demands of trucks and continuously developed to offer the optimum solution for every situation. Light you can rely on!

• Width: 195mm - Height: 96mm - Depth: 83mm - Fitting Depth: 18mm - Overall Height: 119mm - Lamp Type: H3 - with bulb - with cap
• Light functions: 1 - with high beam
• Registration Type: SAE - Fulfils ECE norm.: R8
• Synthetic Material Housing - Housing Colour: Black - Lens Colour: Crystal clear
• Mounting Type: Bolted - Fastening Type: Swivelling Mounting Bracket/Vertical

Durite LED driving work lamp bar features a position lamp. Supplied with a 3-PIN DT connector & 500mm flying leads.

• 60W; 20 x 3W LEDs & 14 position LEDs
• 6000 Lumens
• Protected to IP67
• Aluminium housing with polycarbonate lens
• L 293 x W 80 x H 83.5mm
• E-Marked R10 EMC, R148/149 approved

Auxiliary high beam headlamp with a futuristic look at the cutting edge of LED technology.
The striking night design is created by the LED position light with its characteristic hexagonal contoured design.
The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² brings about efficient thermal management.

Pollux9+ Strobe – an auxiliary light with extra everything!

Pollux9+ Strobe is a further development of Ledson’s immensely popular Pollux9+ Gen 2. In addition to a wide and long light pattern with the Driving beam from the TIR reflectors with 480 meters at 1 Lux, it also has selectable position light (white or orange), stable attachment, electronic temperature optimization, Goretex pressure equalization membrane and all that which distinguishes the standard Pollux9+. The Pollux9+ Strobe also has an ECE R65 approved strobe light. This warning light consists of four powerful LEDs that can be set in five different flash patterns.

TIR reflectors

TIR stands for Total Inner Reflection and means that all light is effectively reflected and directed before it is sent out from the reflector. The spill light (the light that is not directed but which disappears “unfocused” from the light without making any real use) is minimized. In summary, you get more efficient light on the road and take full advantage of every LED on the auxiliary light with the TIR reflectors.

Specifications:

• Five different warning light patterns, one that is ECE R65 approved
• Synchronizable with each other
• E marked (E8, ref. 37,5), ECE R112 / R10 / R7 (white position light)
• EMC secured (does not disturb the radio)
• With position light (4 LEDs) yellow-orange or xenon white (connect the color you want)
• Driving beam light pattern with range: 960 m (0.25 lux), 480 m (1 lux)
• Spot beam light pattern with range: 1148 m (0,25 lux), 574 m (1 lux)
• 12000 lumens (theoretical), 9600 lumens (actual)
• Cold White Light (6500 K)
• TIR optical system (Total Inner Reflection)
• Pressure equalization membrane
• 36 month warranty

Technical data:

• 120 W (12 x 10 W Cree XM-L2 LED)
• 4 pcs LED for strobe light
• Nominal power 92,4 W
• IP68 (water/dust proof)
• 6 pole DT connector (2-pin adapter included)
• Electronic heat management
• Voltage 9-36 V
• Load 7,7 A @ 12 V and 3,6 A @ 24 V

Measurement & weight:

• Width: 218 mm
• Height: 234,5 mm (incl bracket)
• Depth: 68,5 mm
• Weight: 1,9 kg
• Cable length: 650 mm

Supplied:

• Pollux9+ Strobe Ledson LED auxiliary light 9″ with strobe function
• Bolts and screws for attaching the auxiliary light with either one or two attachment points
• DT connector (6 pole, supplied with 2 pole adapter)
• Installation instructions

Installation instructions for cables (detailed instructions included with the product):

• Red: Auxiliary light (+)
• Black: Auxiliary light/ Position light (- ground)
• Grey: Position light (+) white light
• Yellow: Position light (+) orange light
• Green: Strobe light (+)
• Blue: Strobe light switch of pattern / synchronization

Strobe pattern synchronization: Connect the blue wires of two or more auxiliary lights, then momentarily connect these to the positive terminal for 3 seconds to reset the strobe frequency on all connected lights, then all flash patterns are shifted.

Left hand front grill spotlight to suit Scania Next Gen models.

OE - 2552711, 2659163

Right hand front grill spotlight to suit Scania Next Gen models.

OE - 2552712, 2659164

• Width: 81mm - Height: 83mm - Depth: 68mm - Lamp Type: LED - Number of LEDs: 4 - with cable/with switch
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP68/IP69K
• Housing Colour: Black
• Mounting Type: mounting - Fastening Type: Swivelling Mounting Bracket=
• Full blackout appearance including black brackets
• Sleek design eliminates dust and dirt from being lodged in edges
• Each kit includes the wiring harness with DT connector, switch, connector and relays (easy to install)
• Compact design for universal installation
• Part Number: 1FA 358 176-811

HELLA‘s Black Magic Cubes are available in 2 sizes, 2.7˝ and 3.2˝. Distinguished by the full blackout appearance and sleek design makes this light stand out from the crowd. Black Magic Cubes received the highest dust and waterproof rating. They come in kits of 2 lights including a wiring harness with DT connector, switch, connector and relays making them easy to install. The 3.2˝ is available in Flood or Spot light and can be upright or pendant mounted or integrated into the body work or bumper. HELLA‘s Black Magic Cubes are ready to brighten up your next adventure.

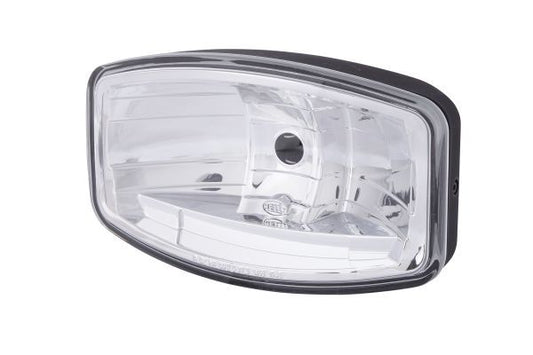

The HELLA Jumbo 320: A large headlamp for large vehicles. This auxiliary headlamp not only makes an impressive impression from the outside, but also knows how to convince with its technical specifications and material properties. The housings are made of robust plastic. High-boost reflectors specially developed for the rectangular shape provide maximum light output. The variant with additional LED position light with 6 high-performance LEDs also leads to significantly improved vehicle visibility and thus offers an additional safety gain.

• H7 driving lamp with position light made of 6 high-power LEDs with bluish-white light
• High-boost reflectors specially developed for the rectangular shape offer maximum luminous efficiency
• Robust plastic housing
• Die-cast metal reflector
• Width: 247mm - Height: 141mm - Depth: 109mm - Fitting Depth: 23mm - Overall Height: 161mm - Lamp Type: H7 - without bulb - without cap
• Light functions: 1 - with high beam
• Fulfils ECE norm.: R112

The HELLA auxiliary high beam headlamps offer that something extra: more light, so you can stay on top of the road in every driving situation. In turn, this increases the safety of every road user. HELLA's indisputable quality and use of state-of-the-art technology are a given. Tried-and-tested standard solutions or innovative LED technology: whatever it may be, the HELLA headlamp series is specially tailored to the demands of trucks and continuously developed to offer the optimum solution for every situation. Light you can rely on!

• Width: 242mm - Height: 133mm - Depth: 89mm - Fitting Depth: 35mm - Overall Height: 166mm - Lamp Type: H3 - without bulb - with cap
• Light functions: 1 - with high beam
• Fulfils ECE norm.: R8
• Synthetic Material Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear
• Mounting Type: Bolted - Fastening Type: Swivelling Mounting Bracket/Suspended

The COMET FF auxiliary driving lights unite modern design, convincing light performance and proven HELLA quality. As highbeam headlights they are the ideal supplement to the standard high-beam light and ensure as fog lights improved vision in case of fog, rain or snowfall. Three different models in modern design – optionally: rectangular, round or oval – integrate harmoniously into vehicle front-ends.

• COMET FF auxiliary lights combine modern design, convincing lighting performance and proven HELLA quality
• As driving lamps, they are the ideal supplement to the standard main beam and as fog lamps they ensure better visibility in fog, heavy rain or snowfall
• New free-form reflectors with computer-calculated light distribution ensure powerful lighting performance
• Fully compatible when exchanged with the predecessors (same mounting and assembly options as the previous series)
• Low installation depth for easy mounting
• Width: 192mm - Height: 94mm - Depth: 96mm - Overall Height: 118mm - Lamp Type: H3 - with bulb - with cap
• Light functions: 1 - with high beam

Auxiliary Lamp Series FF 50 and FF 75. There are vehicles whose small dimensions or lack of mounting options make it difficult to use conventional auxiliary lamps. This is why HELLA engineers expanded the FF series to include several high-performance compact models. To ensure that your light is always where you need it. The FF series is available in 2 model variants: the FF 50 with an oval design and the FF 75 with a flat design. Both variants are available as highbeam headlamps and fog lamps. Thanks to the metal bracket, universal assembly is possible either in the upright or suspended positions.

• The compact design of the headlamp enables the auxiliary headlamp to be mounted even where space is limited
• The reflector with free-form lighting technology ensures optimum light distribution on the road
• Thanks to the metal bracket, universal mounting is possible both standing and hanging
• The spotlight has a very light reflector material with high inherent strength
• Resistant to high-pressure cleaners and protection against water during high-pressure / steam jet cleaning due to IP protection classes 5K4K and IP X9K
• Width: 156mm - Height: 54mm - Depth: 98mm - Fitting Depth: 70mm - Overall Height: 64mm - Lamp Type: H7 - with holder/with bulb - without cap
• Light functions: 1 - with high beam

The first Rallye 3003 auxiliary driving lamp in LED technology impresses with its outstanding light design. When switched on, the clear, cool-white light shows a characteristic light design both during the day and at night. EdgeLight technology has been applied for a more intense appearance of the position light. The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management. The LED headlight insert is replaceable. The PC lens is impact resistant and the impact resistant housing is made of high quality thermoplastic. The mounting brackets made of galvanized sheet steel allow a large adjustment range.

• Auxiliary driving lamps with future-oriented look using the latest LED technology
• The striking night design is realized by the LED position light with characteristic hexagonal contour design
• Delay-free light signal thanks to attention-grabbing flasher function
• The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
• Impact-resistant housing made of high-quality thermoplastic
• Width: 222mm - Height: 222mm - Depth: 125mm - Fitting Depth: 49mm - Overall Height: 243mm - Lamp Type: LED - with LED - Electromagnetic Compatibility (EMC)/without cap
• Light functions: 2 - with high beam (LED)/with position light (LED)

The first Rallye 3003 auxiliary driving lamp in LED technology impresses with its outstanding light design. When switched on, the clear, cool-white light shows a characteristic light design both during the day and at night. EdgeLight technology has been applied for a more intense appearance of the position light. The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management. The LED headlight insert is replaceable. The PC lens is impact resistant and the impact resistant housing is made of high quality thermoplastic. The mounting brackets made of galvanized sheet steel allow a large adjustment range.

• Auxiliary driving lamps with future-oriented look using the latest LED technology
• The striking night design is realised by the LED position light with characteristic hexagonal contour design
• Delay-free light signal thanks to attention-grabbing flasher function
• The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
• Impact-resistant housing made of high-quality thermoplastic
• Width: 222mm - Height: 222mm - Depth: 125mm - Fitting Depth: 49mm - Overall Height: 243mm - Lamp Type: LED - with LED - Electromagnetic Compatibility (EMC)/without cap
• Light functions: 2 - with position light (LED)/with high beam (LED)
