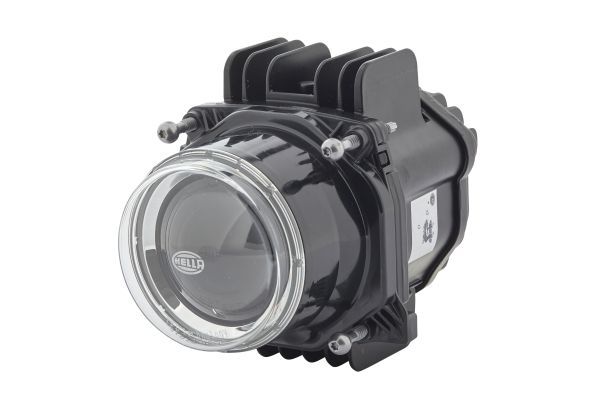

HELLA 1AL 010 820-021 LED/DE Headlight 90mm performance Bi-LED L70 24/12V round transparent- right/left

HELLA 1AL 010 820-021 LED/DE Headlight 90mm performance Bi-LED L70 24/12V round transparent- right/left

SKU: 1AL-010-820-021

Out of stock

  • SKU: 1AL-010-820-021
  • SKU: 1AL-010-820-021
  • SKU: 1AL-010-820-021
1 3
Product Details Related Products SpecificationsReviews

Product Details

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • 90 mm cover lens: Made of plastic especially resistant to stone chipping. Optics-free - for direct view of the lens.
  • 70 mm lens: Optic-free, made of glass, the light from the reflector is projected in the desired direction. Excellent light output and extremely homogeneous illumination with little stray light.
  • Free-form reflector: Computer-calculated free-form plastic reflector focuses the light through the precision lens.
  • Simple installation with 4 pre-mounted adjusting screws on the vehicle body or optionally on an additional support frame (accessory).
  • Can be ideally combined with other modules of the 90 mm series.

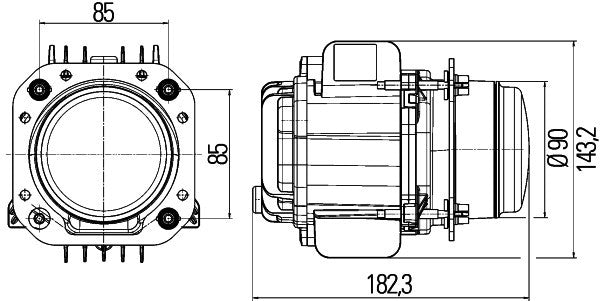

  • Width: 143mm - Height: 143mm - Depth: 182mm - Lamp Type: LED - Electromagnetic Compatibility (EMC)
  • Light functions: 2 - with high beam (LED)/with low beam (LED)

Equivalent OEMs

AGCO ACW2150560, AGCO G743 900 020 100, ALEXANDER DENNIS 76100011, BCS 620435, DOOSAN 301005-02704, FENDT G 743 900 020 100, GOLDHOFER 260315, GRIMME FIN.00011, HOLMER 1019057420, HYMER 2500407, HYMER 2500407 X1603.15.219, KAMAG 64233373, KÖGEL 64233373, KRONE 200824550, KUBOTA 3J036-6249, KUBOTA 3J03662491, KUBOTA 3J036-62492, LIEBHERR 12104194, LINDNER 3010858, MANITOU 923447, MARCOPOLO 11510636-24VDC, NOVABUS 22576789, SAME 2.8039.382.0, SCANIA 2 497 629, SCANIA 2 497 635, SOLARIS 0000-158-490, SOLARIS 3408-005-447, TAM 11040180, VOLVO 1 543 267 7, VOLVO 2 257 678 9, VOLVO 22576789, VOLVO TEL15432677

Related Products

Specifications

Item Attributes Item Attributes
Mounting Type Fitting
Lamp Type LED
Light Design LED / DE
Voltage 24 V / 12 V
Fitting Position right / left
Width 143 mm
Height 143 mm
Depth 182 mm
Outer Diameter 110 mm
Light Function with high beam (LED) / with low beam (LED)
Light functions 2
Registration Type ECE
Left-hand/Right-hand Traffic for right-hand traffic
Shape round
Housing Colour Black
Illuminated Area 90 mm
Lens Colour transparent
Supplementary Article/Info 2 Electromagnetic Compatibility (EMC)
SVHC 1317-36-8; Lead monoxide (lead oxide) / 1303-86-2; Diboron trioxide / 7439-92-1; Lead
Assembly by qualified personnel required! Assembly by qualified personnel required!
