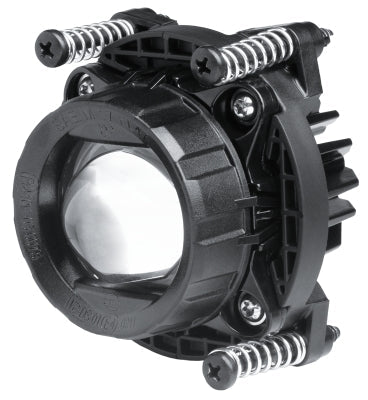

HELLA 1KL 998 670-051 Symmetric/LED-Spotlight Modul 60 12V round CCC Clear diffusing lens Crystal clear - left /right

HELLA 1KL 998 670-051 Symmetric/LED-Spotlight Modul 60 12V round CCC Clear diffusing lens Crystal clear - left /right

SKU: 1KL-998-670-051

Out of stock

  • SKU: 1KL-998-670-051
  • SKU: 1KL-998-670-051
  • SKU: 1KL-998-670-051
1 3
Product Details Related Products SpecificationsReviews

Product Details

Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA's compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water. A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.

  • Specially developed lens system for homogeneous illumination provides exactly the safety and reliability needed on the road and off-highway.
  • The lens system specially developed by HELLA concentrates the light of the LEDs and distributes it optimally to the area of application.
  • The products are also durable and resistant to vibration, dirt and water.
  • Enables easy changeover from halogen to LED technology.

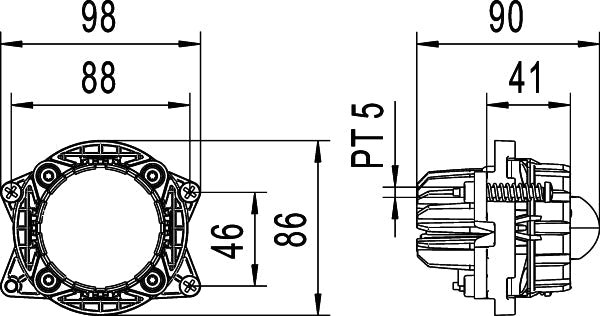

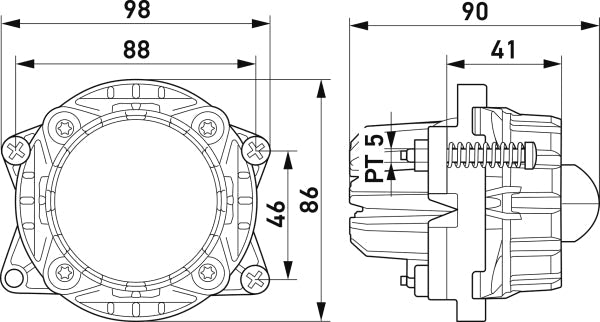

  • Width: 98mm - Height: 86mm - Depth: 90mm - Fitting Depth: 52mm - Lamp Type: LED - with LED - with carrier frame/Electromagnetic Compatibility (EMC)
  • Light functions: 1 - with high beam (LED)
  • Registration Type: CCC - Fulfils ECE norm.: R113/R10/R149

Related Products

Specifications

Item Attributes Item Attributes
Mounting Type Screw Connection
Fastening Type 3-point attachment
Light Design LED / Symmetric
Lamp Type LED
Voltage 12 V
Fitting Position right / left
Height 86 mm
Width 98 mm
Depth 90 mm
Fitting Depth 52 mm
Light Function with high beam (LED)
Light functions 1
Registration Type CCC
Fulfils ECE norm. R10 / R149 / R113
Reference number 12.5
Housing Colour Black
Lens Colour Crystal clear
Frame Colour Black
Shape round
Housing Type Metal Housing
Diffusing Lens Type Clear diffusing lens
Supplementary Article/Info 2 Electromagnetic Compatibility (EMC) / with carrier frame
Supplementary Article/Supplementary Info with LED
SVHC 7439-92-1; Lead
Assembly by qualified personnel required! Assembly by qualified personnel required!
