BPW (21)

BPW is Europe's leading manufacturer of Axle and Suspension Systems. We stock a comprehensive range of BPW parts and accessories

  • A1293PK Air Tank Saddle Straps 276mm Diameter

    A1293PK Air Tank Saddle Straps 276mm Diameter

    SKU: A1293PKMUL
    Length (mm) 685
    Width (mm) 32
    External Diameter (mm) 278
    Internal Diameter (mm) 276
    Radius (mm) 138
    Weight (KG) 1.16
    £11.19 £13.43 inc. VAT
    £0.00 £11.19 £13.43 inc. VAT
    In stock Click & Collect Same Day Delivery
  • A1292PK Air Tank Saddle Straps 246mm Diameter

    A1292PK Air Tank Saddle Straps 246mm Diameter

    SKU: A1292PKMUL
    Length (mm) 598
    Width (mm) 32
    External Diameter (mm) 278
    Internal Diameter (mm) 276
    Radius (mm) 138
    Weight (KG) 1.51
    £10.36 £12.43 inc. VAT
    £0.00 £10.36 £12.43 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Disc brake pad kit - 4.90930

    Disc brake pad kit - 4.90930

    SKU: 4.9093
    Properties Data
    Fitting Position Rear Axle
    Height [mm] 109.0
    Thickness [mm] 30.0
    WVA Number 29108
    Width [mm] 248.0
    £75.01 £90.01 inc. VAT
    £0.00 £75.01 £90.01 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Disc brake pad kit - 10.14000

    Disc brake pad kit - 10.14000

    SKU: 10.14
    Properties Data
    Fitting Position Front Axle
    Height [mm] 109.0
    Thickness [mm] 30.0
    Width [mm] 248.0
    £95.21 £114.25 inc. VAT
    £0.00 £95.21 £114.25 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Placeholder

    Brake disc - 10.14105

    SKU: 10.14105
    Properties Data
    Bolt Hole Circle Ø [mm] 335.0
    Bore Ø [mm] 22.5
    Brake Disc Thickness [mm] 45.0
    Brake Disc Type internally vented
    Centering Diameter [mm] 293.5
    Fitting Position Rear Axle
    Height [mm] 159.5
    Minimum thickness [mm] 40.0
    Number of Holes 10.0
    Outer Diameter [mm] 430.0
    £133.85 £160.62 inc. VAT
    £0.00 £133.85 £160.62 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Chamber Disc 24 - PRO7142410

    Brake Chamber Disc 24 - PRO7142410

    SKU: PRO7142410
    Bolt lengths 42.5 mm
    Bolt threads M16 x 1.5
    Calculated Volume (dm³) 7.182
    Calculated Weight (kg) 0
    Clamp band 189 mm
    Clamp band position 20°
    Cylinder length 108
    Distance between bolts 120.6 mm
    GTIN 04057877018375
    Norm TÜV certificate
    Port (side) M16 x 1.5
    Port (top) M16 x 1.5
    Port: working pressure [p emax.] 10.2
    Port angle 0°
    Product category Device
    ProVia warranty 1 year
    Push-rod length 15 mm
    Stroke 63.5 mm
    Technical specification AM specification
    Temperature range -40°C to +80°C
    Type 24
    UPC 193134006373
    Weight (kg) 3.9
    Weight (lb) 8.598
    £64.45 £77.34 inc. VAT
    £0.00 £64.45 £77.34 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Wheel nut surface: geomet - 4.40209

    Wheel nut surface: geomet - 4.40209

    SKU: 4.40209
    Properties Data
    Bolt Head-/Nut Design Male Hex
    Height [mm] 27.0
    Quality/ Grade 10
    Spanner Size 32
    Surface Geomitrised
    Thread Size M22 x 1,5
    £2.06 £2.47 inc. VAT
    £0.00 £2.06 £2.47 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Wheel nut - 3.61153

    Wheel nut - 3.61153

    SKU: 3.61153
    Properties Data
    Height [mm] 39.0
    Spanner Size 32
    Thread Size M22 x 1,5
    £6.36 £7.63 inc. VAT
    £0.00 £6.36 £7.63 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Wheel nut - 3.61152

    Wheel nut - 3.61152

    SKU: 3.61152
    Properties Data
    Height [mm] 62.0
    Spanner Size 32
    Thread Size M22 x 1,5
    £6.39 £7.67 inc. VAT
    £0.00 £6.39 £7.67 inc. VAT
    In stock Click & Collect Same Day Delivery

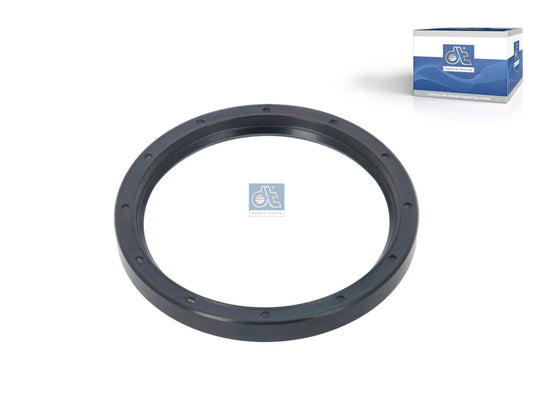

  • Oil seal - 2.65005

    Oil seal - 2.65005

    SKU: 2.65005
    Properties Data
    Fitting Position Front Axle
    Height [mm] 12.0
    Inner Diameter [mm] 100.0
    Outer Diameter [mm] 120.0
    £7.68 £9.22 inc. VAT
    £0.00 £7.68 £9.22 inc. VAT
    In stock Click & Collect Same Day Delivery
  • A1295PK Air Tank Saddle Straps 396mm Diameter

    A1295PK Air Tank Saddle Straps 396mm Diameter

    SKU: A1295PKMUL
    Length (mm) 1000
    Width (mm) 32
    External Diameter (mm) 398
    Internal Diameter (mm) 396
    Radius (mm) 198
    Weight (KG) 1.52
    £17.76 £21.31 inc. VAT
    £0.00 £17.76 £21.31 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Drum BP1046

    Brake Drum BP1046

    SKU: BP1046

    Ecomax. Machined Step On The Underside Of The Flange For Stud Location. Stud Has A Half Moon Shape.

    Pallet delivery charge applies.
    £147.63 £177.16 inc. VAT
    £0.00 £147.63 £177.16 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Pads WP1564

    Brake Pads WP1564

    SKU: WP1564
    BPW Applications.
    £90.87 £109.04 inc. VAT
    £0.00 £90.87 £109.04 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Drum BP1037

    Brake Drum BP1037

    SKU: BP1037

    Machined Step under stud face.

    Pallet delivery charge applies.
    £93.71 £112.45 inc. VAT
    £0.00 £93.71 £112.45 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Disc BP1040

    Brake Disc BP1040

    SKU: BP1040
    BP1022 has now been replaced by BP1040.
    £103.35 £124.02 inc. VAT
    £0.00 £103.35 £124.02 inc. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Pads WP1329

    Brake Pads WP1329

    SKU: WP1329
    Winnard ECE R90 approved. 4 Identical pads. Supplied with WA231 fitting kit. REPLACES WP1329S2.
    £59.64 £71.57 inc. VAT
    £0.00 £59.64 £71.57 inc. VAT
    In stock Click & Collect Same Day Delivery
