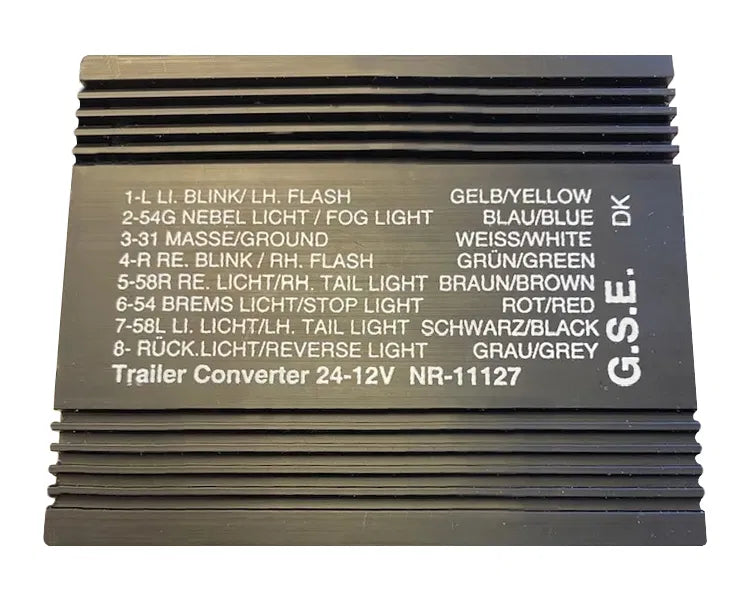

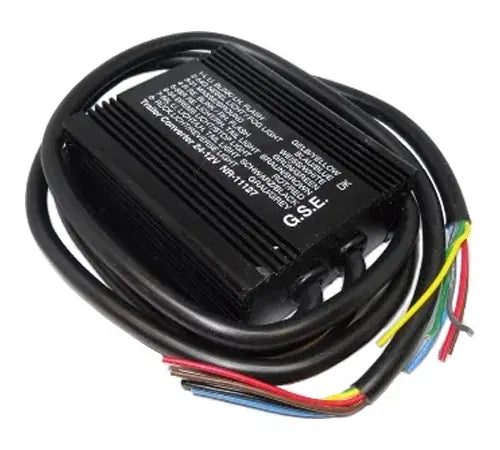

24V-12V Trailer Voltage Converter/Dropper

24V-12V Trailer Voltage Converter/Dropper

SKU: 11127

In stock

  • SKU: 11127
  • SKU: 11127
1 2
Product Details Related Products Reviews

Product Details

7 way voltage dropper that allows the user to tow a 12v trailer with a 24v vehicle without the need for changing bulbs etc.

Waterproof to IP65 - can be fitted externally on a chassis if required.
No connections to the battery needed, each circuit takes its own power from the vehicle and switches the output to 12v as needed.

Input Voltage - 24v
Output Voltage - 12v
Dimensions (mm) - 110L x 103W x 43H

  • Input voltage: 24 V (20 - 32 V)
  • Output voltage: 14V RMS 130 Hz. (with 28V input)
  • Efficiency: Flasher output 90% Other outputs 95%
  • Dimensions: L.105 MM x B.110 MM x H.43 MM
  • waterproof units in aluminium housing.
  • Cable connections: 24V input: 1 meter x (7x1.0 mm2 + 1x2,5 mm2)
  • 12V output: 1 meter x (7x1.0mm2 + 1x2,5 mm2)

Output ratings:

  • Flasher outputs: 2x21W
  • Tail light: 2x30W
  • Fog light rear: 2x21W
  • Reverse light: 2x21W
  • Stop light: 2x21W
