Ledson Breeze X1 Multifunction Rear LED Lamp

Name: Ledson Breeze X1 Multifunction Rear LED Lamp
Brand: Ledson
SKU: 360801
Price: 49.95 GBP
Availability: InStock

SKU: 360801

In stock

1 6

Product Details Related Products Reviews

Product Details

Tail / Brake / Indicator LED Lamp / Clear Glass.

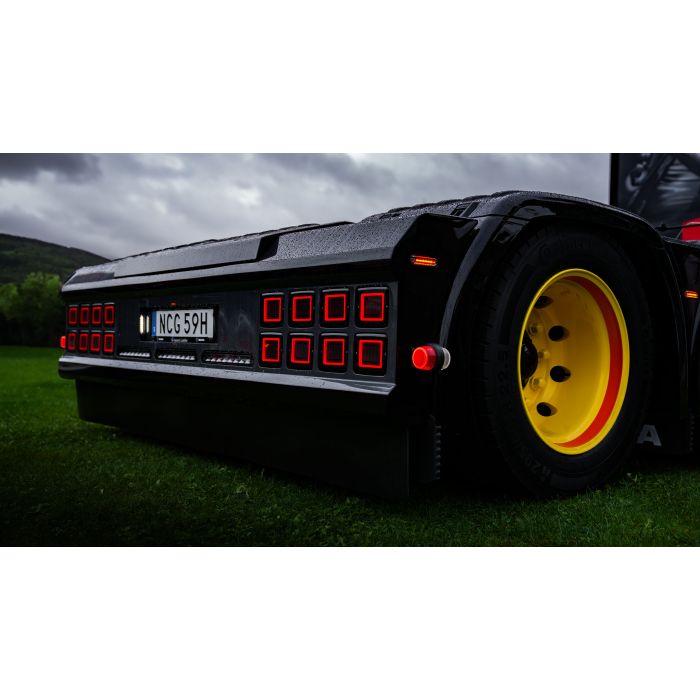

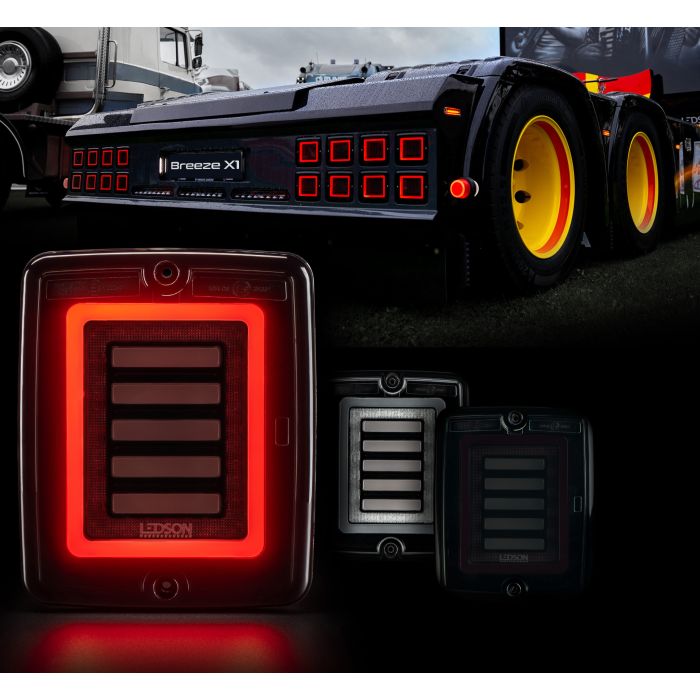

Breeze X1 from Ledson is an ultra-slim tail light, just 28 mm deep, combining sleek, modern design with cutting-edge technology. Perfect for those looking to give their vehicle a sophisticated and contemporary look without compromising functionality.

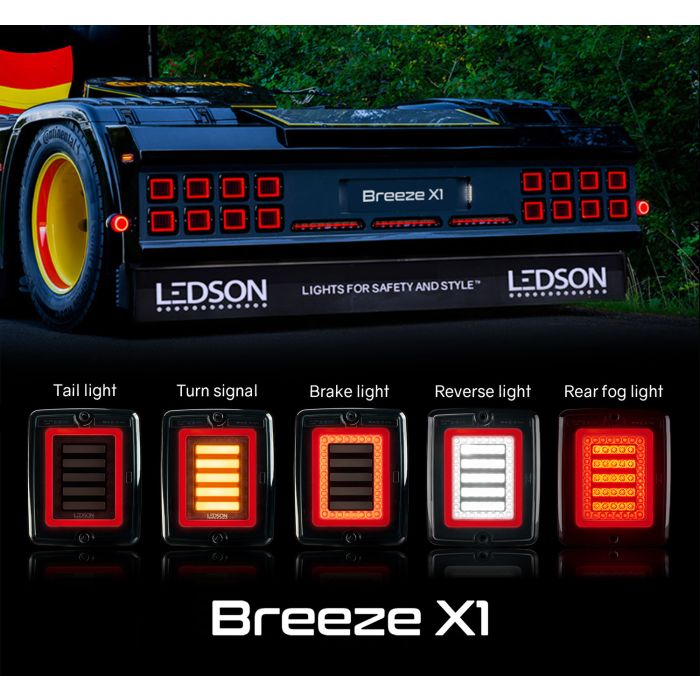

Breeze X1 is available with the following approved functions:

Tail light / brake light / indicator
Tail light / reverse light
Tail light / rear fog light

In addition, the version with indicator features a built-in dynamic indicator function, allowing you to connect up to four lights per side.

It can be mounted both horizontally and vertically, with both mounting options E-marked according to ECE R148. The ultra-slim design and generous 2.5-meter cable length make this tail light easy to install.

Specifications:

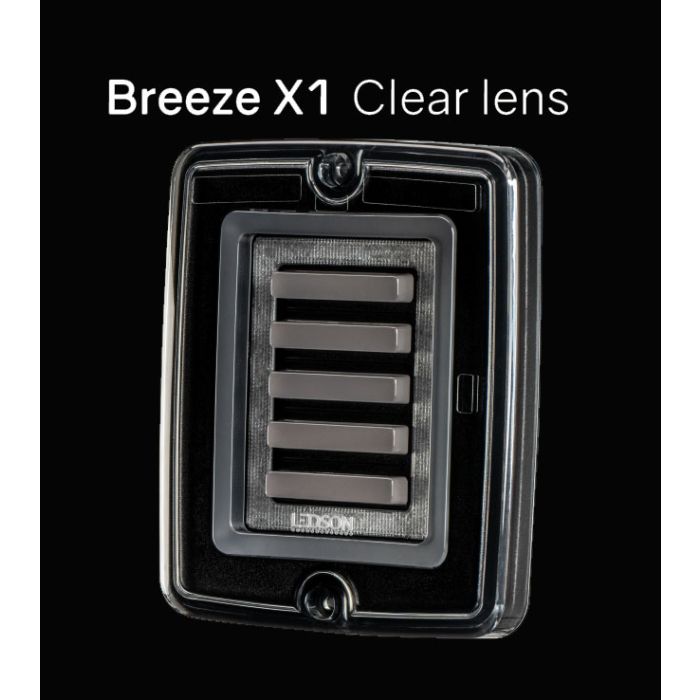

Clear lens
Multifunction tail light
ECE R148 (approved for all functions)
Total of 162 pcs LED
IP67 rated (waterproof and dustproof)
Voltage: 10-48V
Warranty: 36 months
Two screws and an instruction manual are included.

Measures:

Width: 110 mm
Height: 133 mm
Depth (total): 28 mm
Depth (recess): 10 mm
Cable: 2,5 m
CC: 115 mm

Synchronized Turn Signals: To ensure all turn signals on the same side flash simultaneously, connect all the yellow cables together on that side.

Dynamic turn signal: To achieve a dynamic turn signal, connect the yellow cable from the most inner light as in signal from the existing turn indicator signal. Then connect the green cable from the most inner light to the yellow cable on the light beside the first and continue this pattern from the inner to the outer lights.

Cable colors:

Black - earth (ground)
White - tail light
Red - brake light
Yellow - indicator (input signal)
Green - output signal for indicator to the next light
Brown - reverse light
Blue - rear fog light
