HELLA 1LB 003 177-301 Halogen Insert Headlight 12/24V rectangular Crystal clear Blade Terminal Front
HELLA 1LB 003 177-301 Halogen Insert Headlight 12/24V rectangular Crystal clear Blade Terminal Front
SKU: 1LB-003-177-301
In stock

Product Details
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.
- H4 headlight insert, main headlight for surface-mounting / installation
- The headlamp insert has 2 light functions: Low beam / High beam
- Lamp type: H4, without bulbs

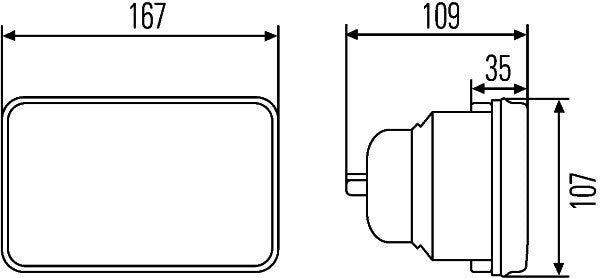

- Ø: 150mm - Length: 167mm - Width: 167mm - Height: 100mm - Depth: 109mm - Lamp Type: H4 - without bulb - without bulbs
- Light functions: 2 - with high beam/with low beam
- Fulfils ECE norm.: R20/R7 - for right-hand traffic/for left-hand traffic
- Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear
Equivalent OEMs
TEREX 1042 - PP1602136TEREX PP1602136
Related Products
Specifications
Item Attributes | Item Attributes |
Mounting Type | Fitting / mounting |
Fastening Type | Clamp Mounting |
Light Design | Halogen |
Lamp Type | H4 |
Voltage | 24 V / 12 V |
Fitting Position | Front |
Height | 100 mm |
Width | 167 mm |
Length | 167 mm |
Depth | 109 mm |
Ø | 150 mm |
Light Function | with low beam / with high beam |
Light functions | 2 |
Fulfils ECE norm. | R7 / R20 |
Plug | Blade Terminal |
Reference number | 12.5 |
Left-hand/Right-hand Traffic | for right-hand traffic / for left-hand traffic |
Lens Colour | Crystal clear |
Housing Colour | Chrome/Black |
Illuminated Area | 164 x 103 mm |
Shape | rectangular |
Diffusing Lens Material | Glass |
Supplementary Article/Info 2 | without bulbs |
Supplementary Article/Supplementary Info | without bulb |
Quantity | 1 |
Assembly by qualified personnel required! | Assembly by qualified personnel required! |
