HELLA 1LE 996 174-321 Headlight Combi 220 24V CEE 7/17 Shaped Plug- right
HELLA 1LE 996 174-321 Headlight Combi 220 24V CEE 7/17 Shaped Plug- right
SKU: 1LE-996-174-321
In stock

Product Details

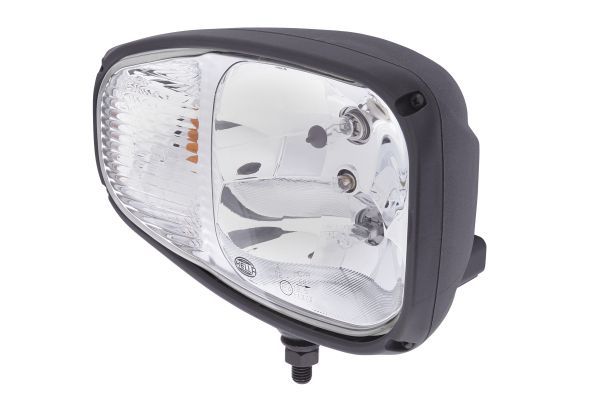

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.
- HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
- It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
- Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
- The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
- Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.
- Lamp Type: T4W/H7/H3/PY21W - with bulbs
- Light functions: 4 - with position light/with low beam/with indicator/with high beam
Equivalent OEMs
KOMATSU 42T0643170MANITOU 265417
MANITOU 265417 B
Related Products
Specifications
Item Attributes | Item Attributes |
Mounting Type | mounting |
Lamp Type | PY21W / T4W / H7/H3 |
Voltage | 24 V |
Fitting Position | right |
Light Function | with low beam / with indicator / with high beam / with position light |
Light functions | 4 |
Registration Type | ECE |
Plug | CEE 7/17 Shaped Plug |
Left-hand/Right-hand Traffic | for left-hand traffic |
Supplementary Article/Info 2 | with bulbs |
Assembly by qualified personnel required! | Assembly by qualified personnel required! |
