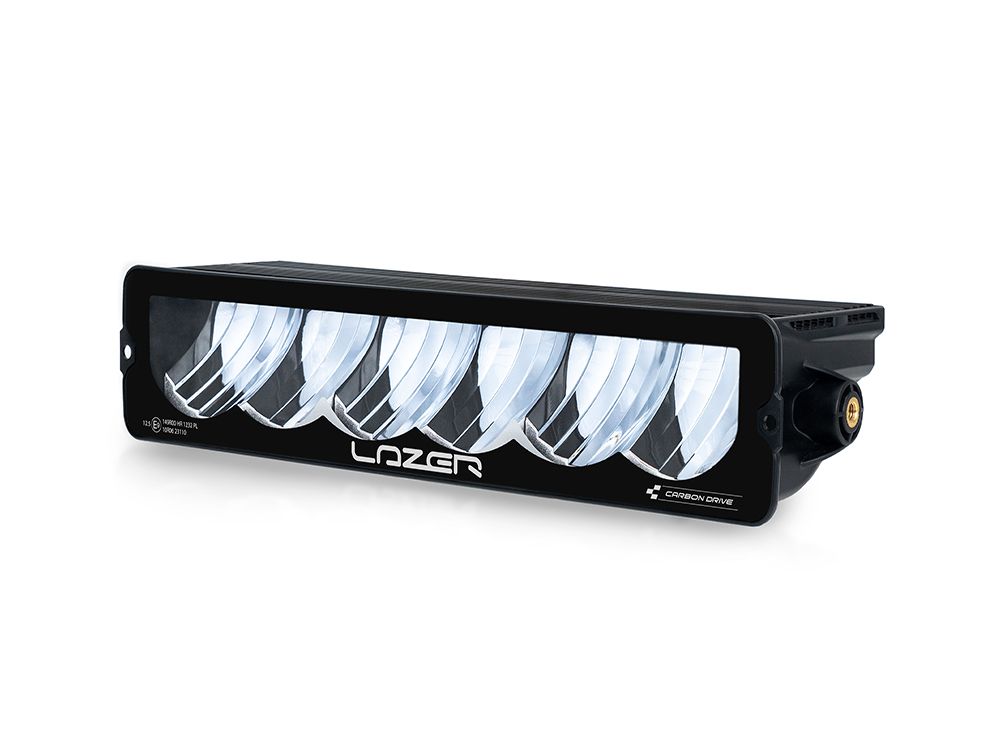

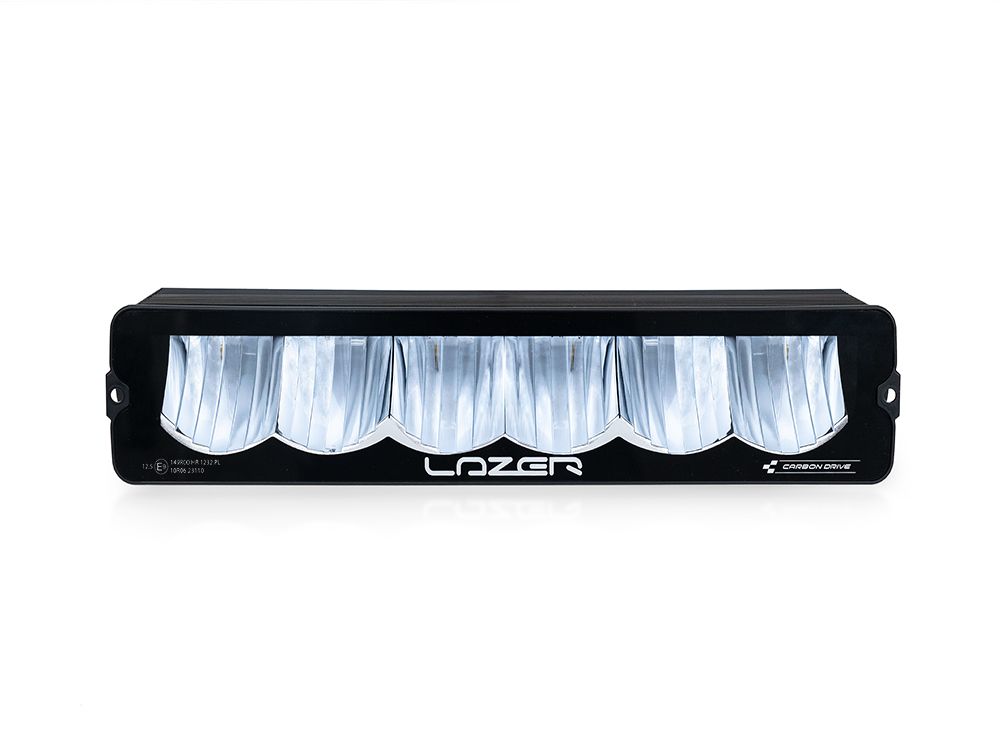

LAZER LAMPS Carbon-6 DRIVE (Gen3)

LAZER LAMPS Carbon-6 DRIVE (Gen3)

SKU: 00C6-DRIVE-G3

In stock

  • SKU: 00C6-DRIVE-G3
  • SKU: 00C6-DRIVE-G3
  • SKU: 00C6-DRIVE-G3
  • SKU: 00C6-DRIVE-G3
  • SKU: 00C6-DRIVE-G3
  • SKU: 00C6-DRIVE-G3
1 6
Product Details Related Products Reviews

Product Details

The 3rd generation of Carbon-6 LED driving lights represent years of continued development and testing at the very highest levels of professional rally and track motorsport. The re-design and re-engineering of the products delivers more light, less weight, and greater functionality, compared to previous iterations. Available as ‘SPOT’ or ‘DRIVE’ beam pattern, each light can operate in four modes: HIGH BEAM - BOOST MODE (100% output) DIP/LOW BEAM (100% output) HIGH BEAM - REDUCED OUTPUT (25% output) DIP/LOW BEAM - REDUCDED OUTPUT (25% output)

  • Ultra-lightweight, PC-ABS material housing
  • Combination of high intensity ‘matrix’ LEDs
  • Available with Spot or Drive optics
  • Full-beam mode can be limited to operate with UNECE E-mark regulation limits
  • Secondary ‘dip/low’ beam mode
  • Additional lighting modes possible with variable PWM input signals
  • Active Power Management regulates current draw (max 7.3A) at low voltages
  • Carefully selected 5000K colour temperature maximises sharpness and definition
  • Included quick fit and release lens covers – Amber and Black
  • CAE-optimised heatsink requires minimal airflow to maintain 100% light output
  • Dynamic drive modulation preserves electronic components in adverse conditions
  • Low profile, edge-to-edge design for improved aerodynamic performance
  • Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)
  • Vehicle side connector, plus 300mm cable length supplied with each lamp.
  • Compatible 2-lamp and 4-lamp wiring looms available
  • Rally mounting solutions available including carbon-fibre rally pods
  • Fine tune adjustment mechanism on each light for accurate aiming (when used with compatible rally pods)
  • ‘Unbreakable’ polycarbonate lens
  • IP68 watertight
  • 5-year warranty
  • Designed & manufactured in Britain
Variant Weight 450
Variant Weight Unit g
Total Luminous Flux 9360
Colour Temperature 5000K
Power Consumption (Watt) 85
Current Draw (at 14.4V) (Amper) 5.9

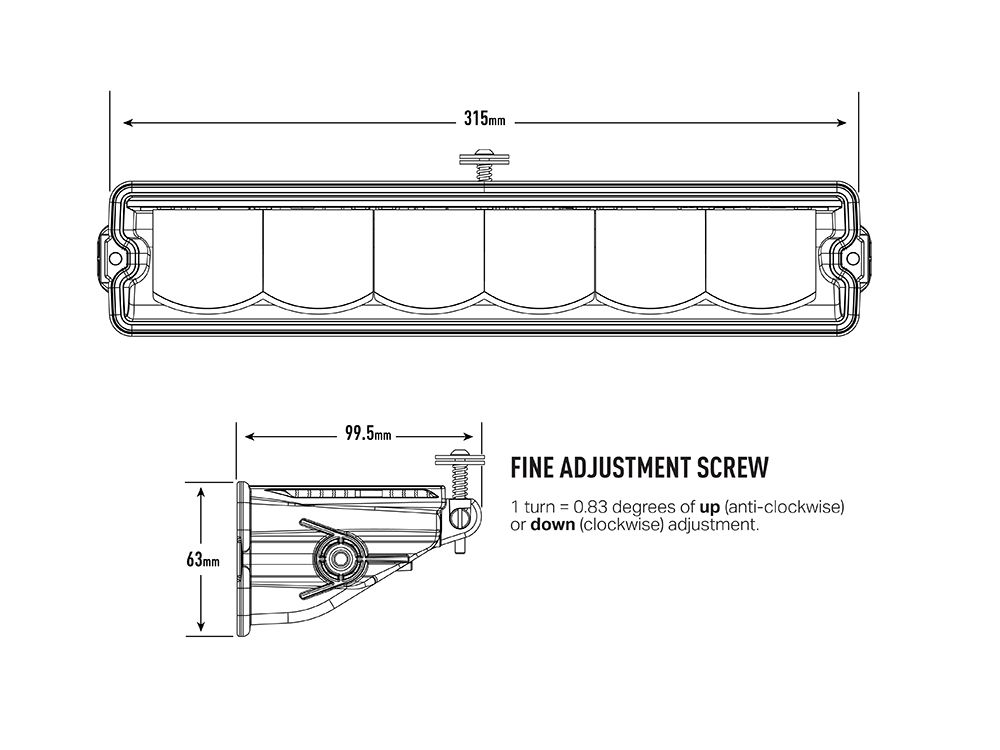

Width (mm) 315
Depth (mm) 99
Height (mm) 63

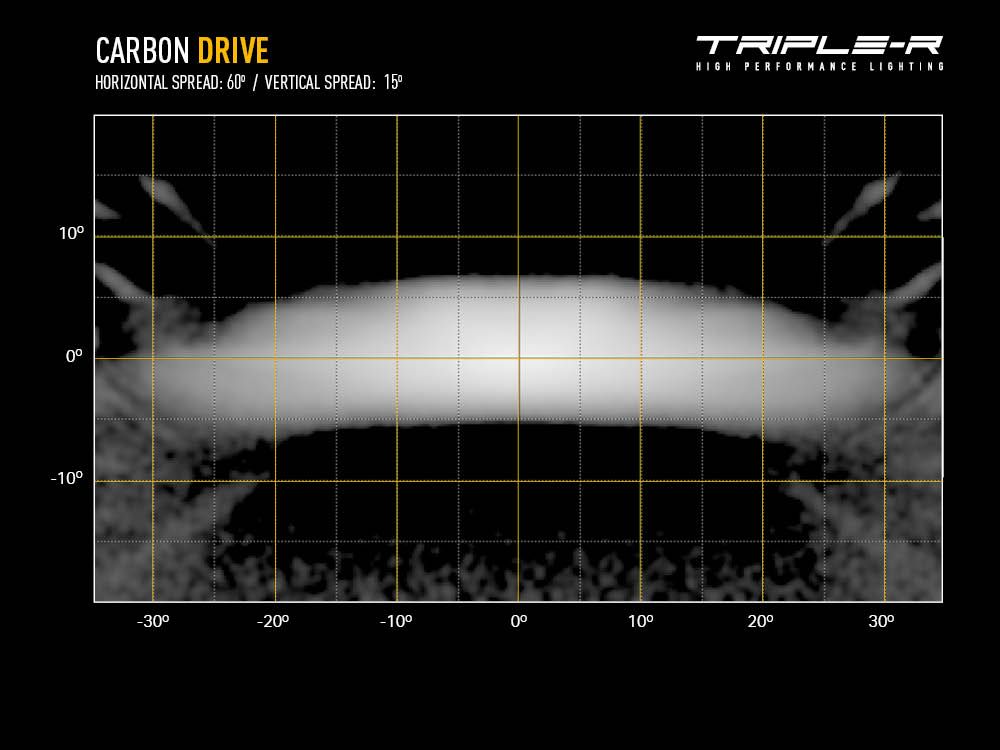

Hor. Beam Angle (degrees) 60

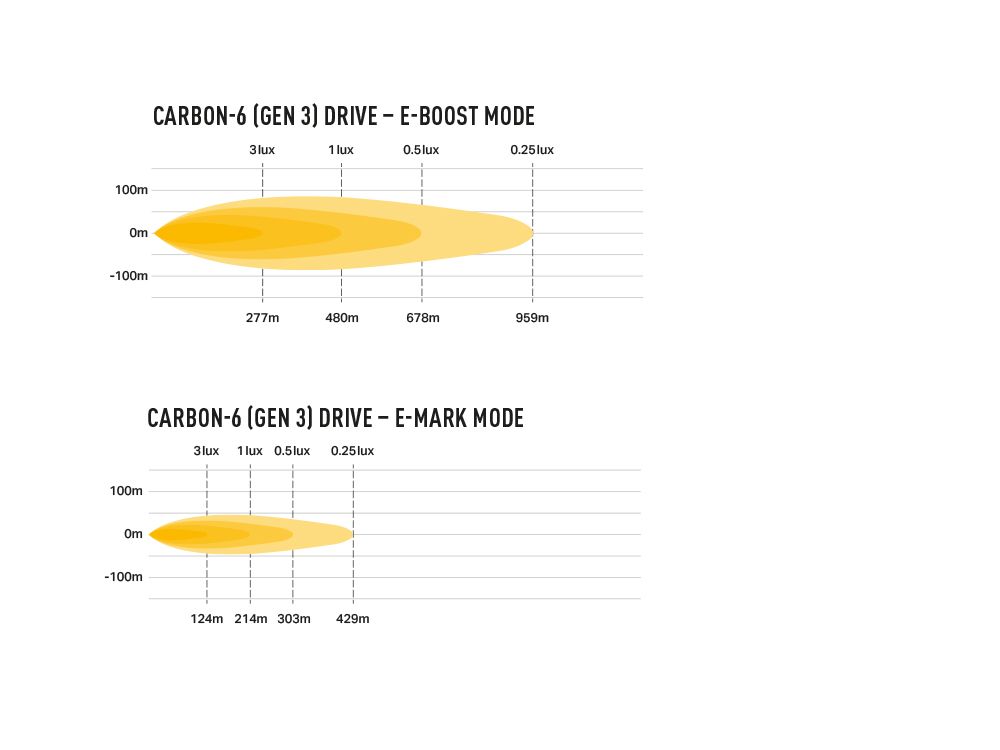

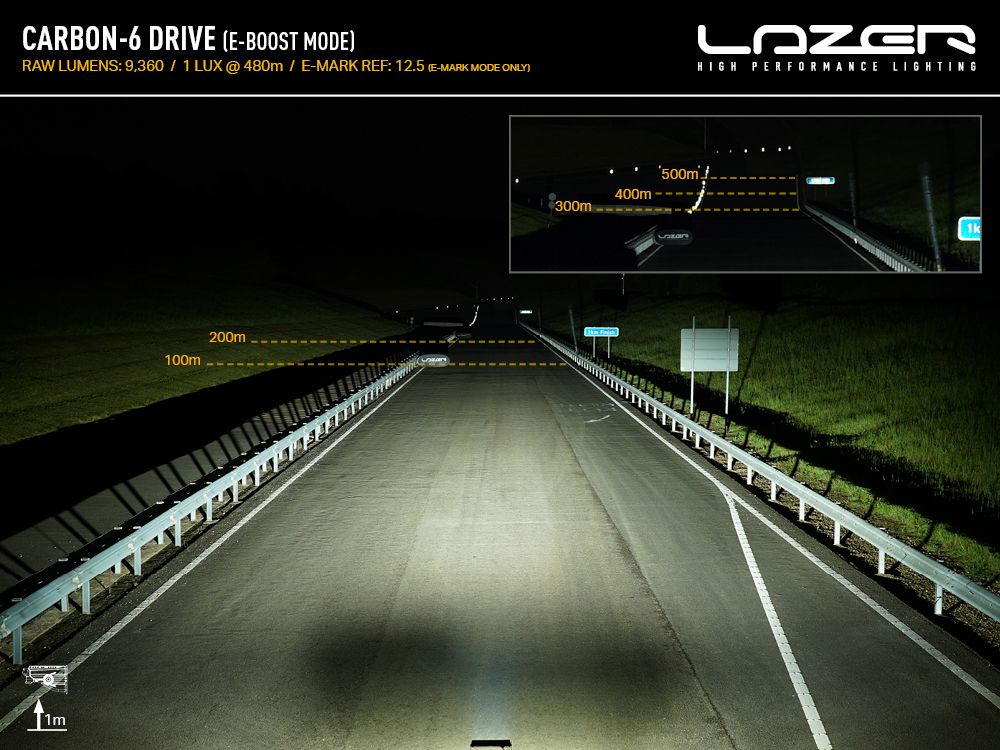

0.25 lx Line (meters) 959
0.5 lx Line (meters) 678
1 lx Line (meters) 480
3 lx Line (meters) 288
