Collection: Lazer Lamps (497)

For maximum control and flexibility with regards your auxiliary lighting installations, Lazer is pleased to offer a Bluetooth push button. Compatible with the CANNY Interface, the Smart Button enables control of your lights without the need for connecting additional wires within your vehicle

The CANNY Smart Button can be installed anywhere within the vehicle, or on your person, within 10m of the CANNY Interface it’s paired with. It allows for lighting functions to be controlled at the touch of a button, and via the CANNY.LZR app can be configured to control up to 4 outputs, as a stand-alone switch or in combination with other CANNY Smart Buttons. The Smart Button can also be programmed to operate lights regardless of the vehicle ignition being on (or more specifically regardless of power being received by the vehicle’s CAN bus system).

Examples of practical functions include:

De/activation of your high beam lights (regardless of the vehicle high beams being on/off) – especially relevant in countries which restrict the number of auxiliary lights permissible to be connected to the vehicle high beams.
De/activation, or switching, of the position light function on your Lazer product.
De/activation of your work / reverse lights on the vehicle. The customer can select via the CANNY App whether to configure the button so that the CANNY output stays on, or switches off, when the vehicle ignition is off (and when CAN signals stop being sent over the Can Bus system)
Mode select on Beacon function of your lamps
Note, when using CANNY Smart Button to control the yellow dip mode of an Elite+ product, it would be required to wire in an additional relay to the switching channel of the lamp, to reverse the polarity of the signal. Please check out our blog piece for details on how to do this.

The CANNY Smart Button isn’t only compatible with auxiliary lighting solutions. Via the CANNY Interface, the Smart Button can be configured to operate the outputs of CANNY, regardless if those outputs have been set to control auxiliary lighting, or other 12V accessories fitted to the vehicle.

For a Quick Start Guide to the CANNY Smart Button please check out the Downloads section.

Note: CANNY Smart Button is only compatible with a corresponding CANNY Interface.

Canny is a CAN interface, developed by Lazer Lamps, that enables installation of auxiliary lights for selected vehicles using CAN communication systems, where it is otherwise not possible to pick-up 12V lighting signals at the back of the vehicle headlamp for example. Comprising a Canny Dongle, plus wiring loom, and supported by a dedicated app (CANNY.LZR), the system benefits from being able to mount within your vehicle’s engine bay for faster and easier installation, or inside the vehicle. Over-the-air Bluetooth synchronisation and updates furthers the systems ease of use and speed of installation. The Dongle comprises an automotive standard Molex connector, ensuring a completely watertight solution, to IP68. Integrated design features and included cable ties facilitate mounting of the unit. Locating the device within the engine bay is preferable for ease of install, but will be dependent on the CAN Hi / CAN Lo wires pick-up location on each vehicle. Connection to the vehicle CAN wires is made via the supplied wiring loom, with the blue (CAN Hi) and yellow (CAN Lo) wires supplied with automotive grade heat-seal crimps for completing watertight connections. The supplied wiring loom also includes a fused battery positive connection, and ground wire. Additionally 4 output wires, each programable to respond to different inputs, whether: high beam, position light, ignition, reverse etc., and compatible with any of our vehicle wiring kits (where the required output is >1Amp). Activation, synchronisation, and ongoing updates of your Canny Dongle are achieved through the app. Having gained full access via the unique serial number and PIN on your device, users can then access installation guides for their vehicle, before pairing with the device and assigning and testing the different lighting functions. Updates, for example following a vehicle manufacturer making changes to the CAN ‘recipes’, can also be completed via Bluetooth.

• IP68 Waterproof CANNY dongle with Molex connector terminal
• Suitable for both engine-bay or in-car mounting
• Connects to vehicle CAN wires (locations of CAN wires and connection methods supplied via vehicle specific instructions, downloadable through APP, after purchase)
• Activates up to 4 x different output (e.g. High Beam, Position Light, Reverse, Ignition)
• Bluetooth (over the air) updates via CANNY app – available on Android and iOS
• Technical Support from UK Sales Team
• Compatible with vehicle-side wiring harness kits (sold separately)
• Fast and user-friendly installation procedure

The Y-Splitter complete with 2-pin superseal connections, is the ideal solution for wiring multiple low power Lazer Lamps avoiding the need for additional wiring kits run in parallel. The splitter is an ideal solution for wiring 3 or more lights, where the power rating of each light is 75W or less, and a corresponding 4-Lamp Wiring Kit doesn’t already exist for example. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: ST2 ST4 ST6 Triple-R 750 Triple-R 850 Linear-6 Linear-12 Sentinel 7''

• Y-splitter for adapting Single Lamp connection to Two Lamp setup
• Suitable for lamps 75W or less
• 2-pin superseal connections

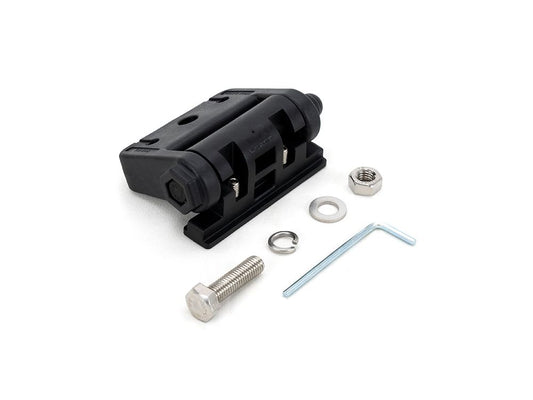

Centre mounting bracket includes A2 stainless steel hardware combined with extremely tough PA66 GF30 (glass filled nylon) ruggedised mounts. Mounts can be fitted above or below lights using M5 grub screws to locate within the lamp mounting channels. Bracket orientation can be reversed in order to push the light further forward/backwards relative to the vehicle mounting point. For use with all Triple-R and ST/T range lamps.

• A2 Stainless Steel hardware
• Uses PA66 GF30 (glass filled nylon) material
• Suitable for mounting above or below lamps
• Fully adjustable - reversible bracket orientation

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft. The VW Crafter kit, designed for MY17 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from a high strength composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime. The VW Crafter (2017+) Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

• Bespoke vehicle integration kit for Lazer LED Spotlight installation
• Custom fit for VW Crafter (2017+)
• Designed for use with Triple-R 750 High Performance LED Spotlights
• Added option for white or amber position/side light function (Standard model only)
• Kit also includes bespoke mounting brackets and two-lamp wiring kit
• Brackets made from high strength, UV -stable, composite material
• Fully road-legal
• 5-year warranty
• Made in Britain

The Utility-80 (Gen2) is a heavy-duty work light upgraded in 2018 that represents the very best lighting performance through greater intensity and improved spread of light, compared to all other work light solutions of a comparable size and power consumption. Only through advanced material and electronic design has it been possible to harness the light output of 4x20W LEDs in a compact unit to deliver a consistently high level of light output more akin to much larger more expensive products.

• UNECE approved Work Light (Reg 10)
• High density, premium ‘bin’ LEDs
• Advanced optical design delivers superior lighting performance
• CAE optimised 'Matrix' cooling system offers improved thermal dynamics
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• EMC protected - CISPR 25: 2008 (Class 3)
• Over voltage protected
• Reverse polarity protected
• ADR compliant versions available (does not cover vehicle side connections)
• Optional Quad Core Dampening System protects against vibration (Wide Mount compatible only)
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• IP67 watertight
• 5-year warranty*
• Supplied with pre-wired male/female 2-pin Deutsch connectors
• Designed and manufactured in UK
• * - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

The Sentinel range of round LED driving lights now comprises 7-inch versions available in Standard and Elite grades. The lights deliver remarkable high beam lighting performance, and product styling that exudes quality. At the Standard level, a combination of 12 high power LEDs emit 5,208 raw lumens, while at the Elite level 10,248 raw lumens are served up by 24 high power LEDs, with each product having the light output on the road or track ahead maximised through the adoption of class-leading electronics and optical design, alongside the product’s CAE-optimised lamp housing.

• Combination of 12 premium ‘bin’ LEDs
• Stealth black internal appearance
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Integrated white and amber position light function (Elite only)
• Ultra-reflective vacuum-metallised spot and wide optics
• UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Boost technology) and Reg 148 position/side light function (white only)
• Contemporary lamp design
• Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• A2 stainless steel fasteners with automotive grade black coating
• UNECE approved Reg 10
• IP68 watertight – 1.5m submersion (30mins)
• 5-year warranty
• Supplied with pre-wired male/female Superseal connectors
• Designed & manufactured in UK

The ideal solution for wiring a pair of Lazer Carbon-6 (Gen3) / RP Hyperspot High Performance LED Driving Lights. The setup is quick, easy, and reliable with Deutsch DT06-4S connectors and no configuration procedures. The kit features a 12V relay, fuse, and battery terminal at one end, and 2.35m of flex on the lamp cable(s). The wiring kit allows for the operation of two lamps via an on/off switch which can be mounted inside your vehicle’s cockpit. Compatiable with: Carbon-2 (Spot / Drive) Carbon-4 (Spot / Drive) Carbon-6 (Spot / Drive) RP Hyperspot Utility-50 with Beacon Utility-50 with Red Tail Light Utility-80 HD with Variable Brightness

• Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
• 2m cable lengths
• Includes 12V relay and 25 amp fuse
• Relay holder approved to IP53 when mounted in a vertical (upright) orientation
• Deutsch DT06-4S connections
• Includes on/off switch for independent operation of lights
• Braided cable sections for added protection in engine bay

Two-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: ST Evolution (All Products) Triple-R 750 Elite Triple-R 850 Elite Triple-R 1000 Elite Linear-6 (Std / Elite) Linear-12 (Std / Elite) Linear-18 (Std) Sentinel 7''

• Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
• 3.2m cable lengths
• Flat cable profile facilitates installation inside/along vehicle trim panels
• Includes 12V relay and 35 amp fuse
• Relay holder approved to IP53 when mounted in a vertical (upright) orientation
• Superseal connections
• Includes optional on/off switch for independent operation of high beam
• Braided cable sections for added protection in engine bay

The Linear Stay Bar kit comprises a 2mm stainless steel stabilising 'arm', comprising two parts, which fits to the Lazer Lamps range of Linear LED spotlights. The stabilising arm is secured to the lamp using the supplied bracket, before fixing to an additional rigid mounting location on your vehicle, thereby reducing vibration, stress, and movement which can affect some light installations. Suitable for a single Linear spotlight. Length: 130mm - 230mm

• Reduces vibration, stress, and movement on LED lamp installations
• Compatible with Linear LED spotlights
• Easy installation
• Made from stainless steel
• Suitable for one lamp

The Linear Anti-Theft Side Bracket Kit offers customers peace of mind of fixing products with extra protection against theft. The stainless steel brackets are pre-treated for maximium corrosion resitance then poweder coated black. The supplied fasteners are all A2 stainless steel and have a unique locking key both in respect of fixing the lights to the brackets, and the brackets to the vehicle. Bracket orientation can be altered in order to raise/lower the light <13mm relative to the vehicle mounting point.

• Unique locking key for all lamp and vehicle mounting points
• Brackets pre-treated with an e-coating, then powder coated black
• A2 stainless steel hardware included
• Height adjustable allowing for lamps to be raised/lowered <13mm
• Compatible with Linear lamps only

Specifically designed for the Utility-25 work light, the Amber lens cover engages perfectly with the lamp housing for a secure fitting, that allows the colour of light to be changed from 5000 kelvin to ‘selective yellow’. The lenses are made from polycarbonate, and feature a gasket which helps prohibit water and dust getting between the lenses.

• Easily alter colour temperature to ‘selective yellow’
• Improved visibility in rain, fog, and snow conditions
• Designed for use with Utility-25 work lamp
• Includes a gasket to prohibit water and dust getting behind the lens
• Made from polycarbonate

A range of lens covers for the Sentinel lamps. Made from polycarbonate, the covers clip securely to the lamps offering an additional layer of protection or styling to the lamps, or in the case of the amber lens cover, the option to convert the colour temperature of the light to selective yellow.

• Amber clip-on lens cover
• Designed for use with Sentinel LED spotlights
• Changes colour of light to 'selective yellow'
• Made from polycarbonate
• Secures using 3-point clipping mechanism

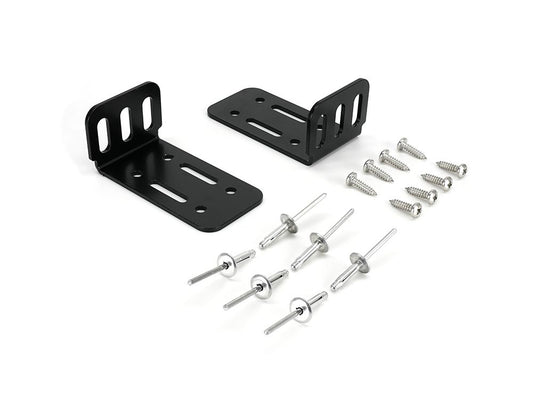

For seamless integration of lights onto a wide variety of road vehicles, the Lazer Licence Plate Mounts offer a perfect, cost-effective solution. The two-part design provides complete flexibility for mounting either a single light or a pair of lights, accommodating various sizes. Constructed from lightweight folded aluminium and finished with a sleek black powder coating, these mounts blend durability with style. Each kit includes rivets for easy attachment to the vehicle's license plate mount. Drivers must ensure that the lights are securely and robustly fitted to the front of the vehicle. Self-tapping screws can be used for bumpers made of strong engineered materials like PC-ABS; however, for polypropylene bumpers, it is recommended to use the supplied rivets for secure mounting. For added stability, the optional Lazer Stay Bar Kit helps minimize vibration, which may occur in some installations (such as with the Linear / Triple-R / Sentinel / ST range) on vehicles with less rigid bumper fascias. Weighing just 225 grams, these brackets are compatible with the majority of Lazer Lamps' UNECE-approved LED lights.

• Made from aluminium with a black, powder coat finish
• Ultra-lightweight, sleek design
• Includes rivets and self-tapping screws for a quick and secure installation
• Universal compatibility
• Max load – 5kg
• Quick fitting time <10mins
• Manufactured in the UK

For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft. The VW T6 kit (Highline/Trendline models only), includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime. The VW T6 Highline Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products. Please note the mounting brackets are different depending on whether the light installation is for Triple-R 750 or ST4 lights, and Startline versus Highline / Trendline models.

• Bespoke vehicle integration kit for Lazer LED light installation
• Custom fit for VW Transporter T6 Highline
• Available with Triple-R 750 High Performance LED lights
• Added option for white or amber position/side light function (Triple-R Standard model only)
• Kit also includes bespoke mounting brackets and two-lamp wiring kit
• Brackets made from high strength, UV -stable, composite material
• Fully road-legal
• 5-year warranty
• Made in Britain

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft. The VW Crafter kit, designed for MY17 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from a high strength composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime. The VW Crafter (2017+) Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

• Bespoke vehicle integration kit for Lazer LED Spotlight installation
• Custom fit for VW Crafter (2017+)
• Designed for use with Triple-R 750 High Performance LED Spotlights
• Added option for white or amber position/side light function (Standard model only)
• Kit also includes bespoke mounting brackets and two-lamp wiring kit
• Brackets made from high strength, UV -stable, composite material
• Fully road-legal
• 5-year warranty
• Made in Britain
