LAZER LAMPS Isuzu D-Max (2025+) - Grille Mount Kit (includes: 2x Linear-6, 1x Grille Mount Brackets, 1x Two-Lamp Wiring Kit)

LAZER LAMPS Isuzu D-Max (2025+) - Grille Mount Kit (includes: 2x Linear-6, 1x Grille Mount Brackets, 1x Two-Lamp Wiring Kit)

SKU: GK-DMAX-04K

In stock

  • SKU: GK-DMAX-04K
  • SKU: GK-DMAX-04K
  • SKU: GK-DMAX-04K
  • SKU: GK-DMAX-04K
  • SKU: GK-DMAX-04K
  • SKU: GK-DMAX-04K
1 6
Product Details Related Products Reviews

Product Details

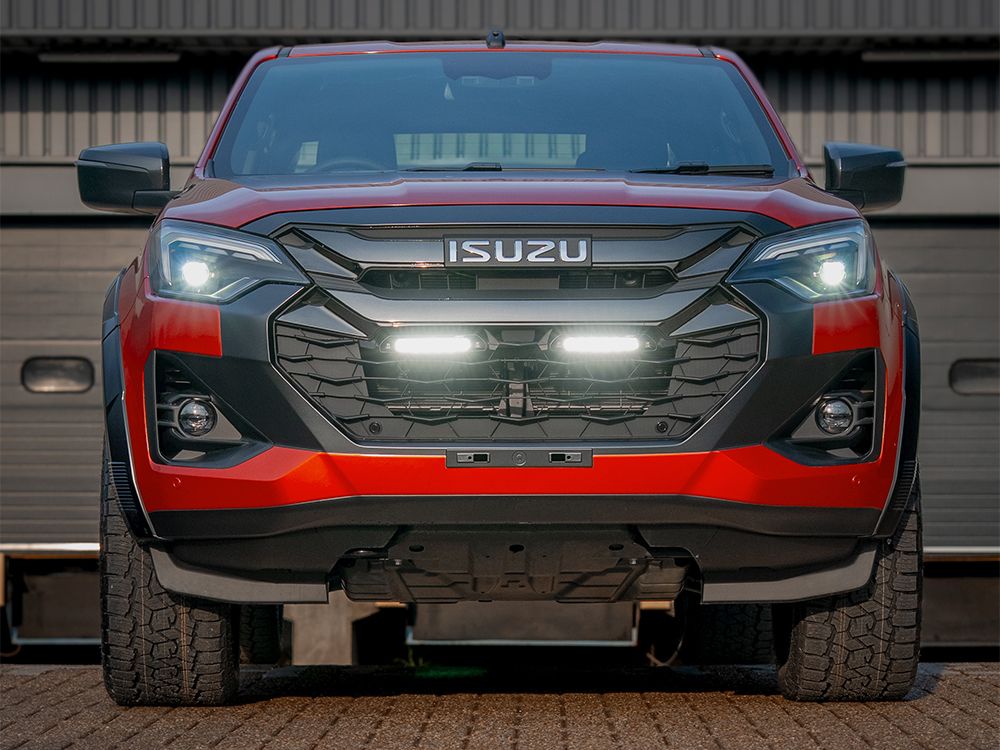

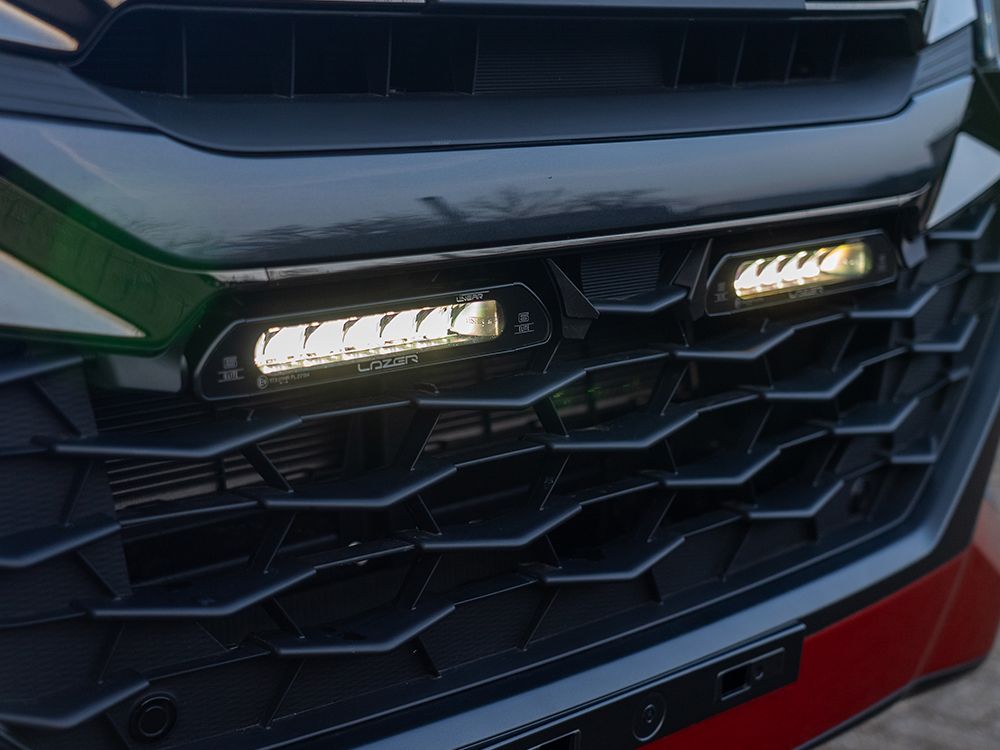

Upgrade the look and performance of your Isuzu D-Max (2025+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance. Each kit includes a pair of Linear-6 High Performance LED driving lights, available in three variants to suit different driving needs. Standard is the everyday hero, with six precision LEDs that cast a bright, even beam to keep country lanes crystal clear while staying 100 % road-legal; Elite turns night into day by doubling the LEDs for a wider, longer reach that inspires confidence on remote roads and trails; and Elite+ is the all-round champion, letting you flick between Boost for maximum punch, Combo for white-plus-amber clarity, Snow/Fog for bad-weather vision, or a ECE approved/low-glare road mode —four lighting options in one, ready for whatever the sky throws at you. The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes cutting guides, a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation. Please note: The Isuzu D-Max (2025+) Grille Integration Kit is carefully engineered and optimised for use with Linear-6 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

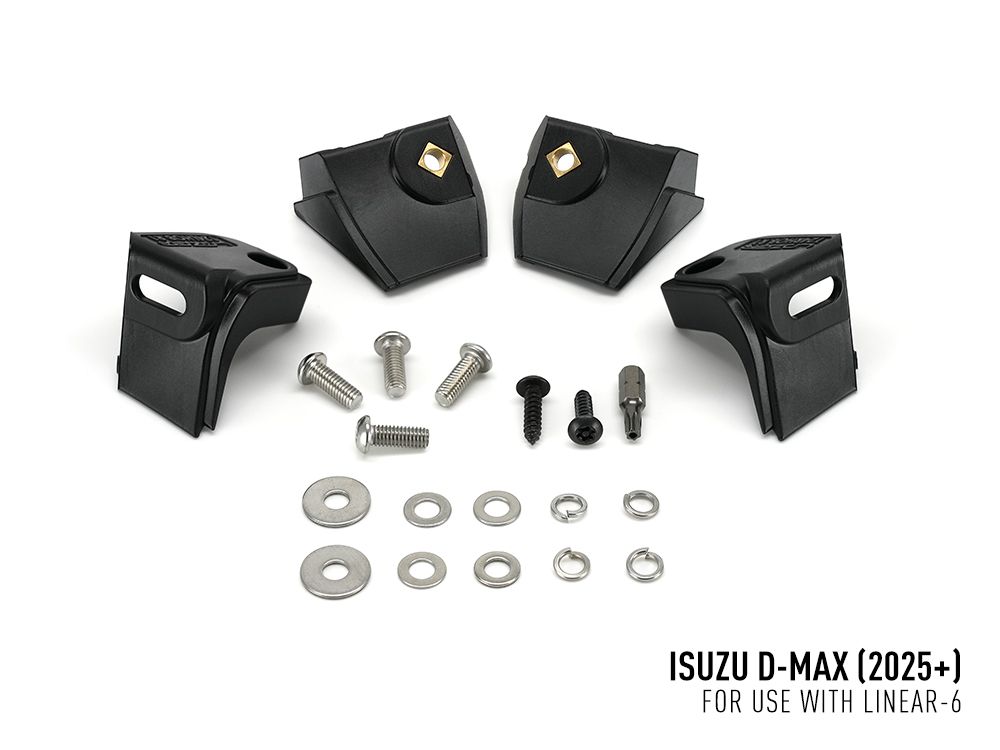

  • Vehicle-specific brackets for seamless, OE-style grille integration
  • Tailored fit for Isuzu D-Max (2025+)
  • Compatible with models: D-Max (DL20, DL40 and V-Cross) Utility (Extended and Double Cab)

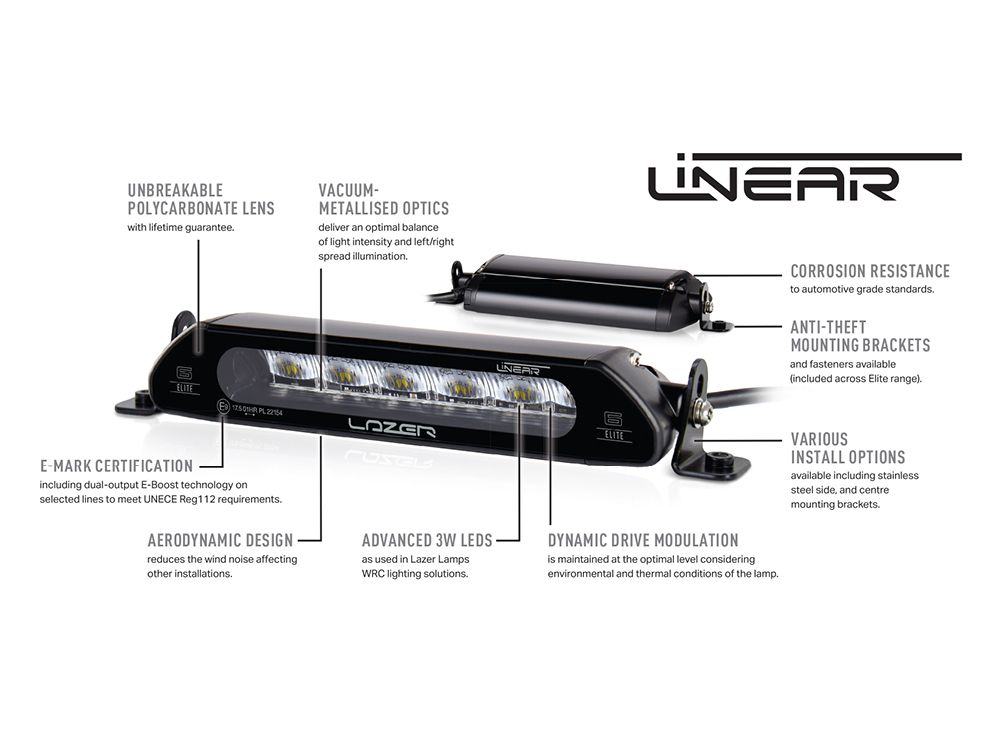

  • Designed for use with Linear-6 LED Lights – Standard, Elite, and Elite+ variants
  • Includes precision-engineered brackets and a two-lamp wiring kit
  • Supplied with cutting guides and anti-theft fasteners for a secure and straight-forward install
  • Brackets manufactured from high-strength, UV-stable composite material
  • Fully road-legal and ECE approved
  • Backed by a comprehensive 5-year warranty
Variant Weight 990
Variant Weight Unit g
Total Luminous Flux 4500
Colour Temperature 5000K
Power Consumption (Watt) 42
Current Draw (at 14.4V) (Amper) 2.92
Width (mm) 232
Depth (mm) 62
Height (mm) 40

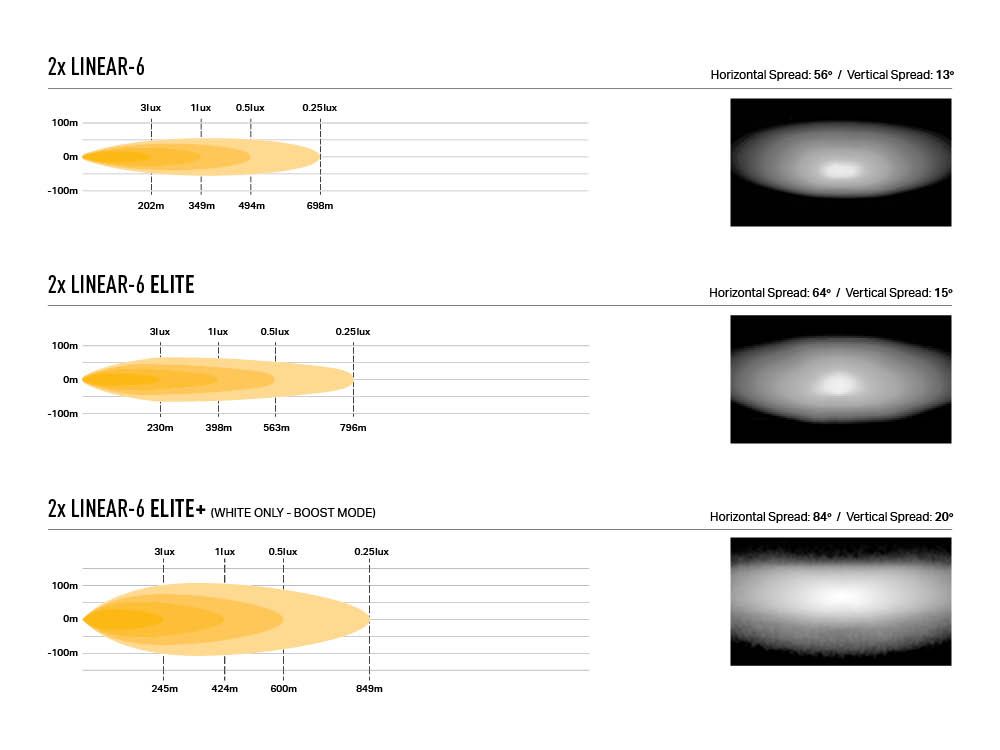

Hor. Beam Angle (degrees) 56
0.25 lx Line (meters) 698
0.5 lx Line (meters) 494
1 lx Line (meters) 349
3 lx Line (meters) 202
