Product Details

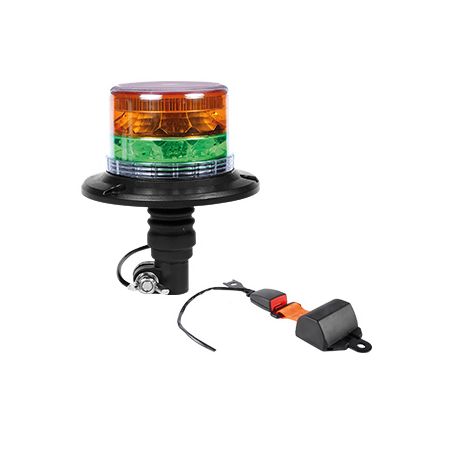

The Dual Colour Beacon features powerful single, dual, and rotating flash. It is supplied with a seat belt kit and has a flexi DIN base designed to bend, absorb, and deflect impact from external factors. Perfect for construction, plant, and agricultural vehicles to improve drivers' and site safety.
- 10-30V
- Flash patterns: single (20W), dual (20W) & rotating (8W)
- 12 Green, 12 Amber SMD LEDs
- Protected to IP66
- E-Marked R10 EMC, ECE R16 Seat Belt & CE approved
Related Products
Specifications
Type LED Beacon 3-Bolt | Type LED Beacon 3-Bolt |
Power 20W | Power 20W |
Material PC Lens | Material PC Lens |
Dimensions (mm) 125 x Ø140mm | Dimensions (mm) 125 x Ø140mm |
Current 0.75A @ 12VDC | Current 0.75A @ 12VDC |
Approvals E Mark ECE R65 | Approvals E Mark ECE R65 |
Protection IP56 | Protection IP56 |
Voltage Rating 12/24V (DC) | Voltage Rating 12/24V (DC) |
No. Of LEDs 45 SMD LEDs | No. Of LEDs 45 SMD LEDs |
Operating Tempature -30 to +50 °C | Operating Tempature -30 to +50 °C |
