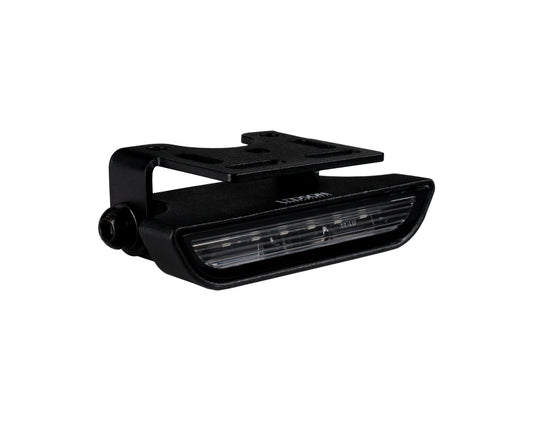

Nano reverse light from Ledson – the ultimate solution for powerful lighting in an ultra-compact package. At only 17 mm in height, Nano is remarkably discreet when mounted on your vehicle, yet it delivers exceptional strength in its 140° wide beam pattern light output. Designed to provide superior visibility behind the vehicle, Ledson Nano ensures a clear and bright view while reversing.
E-marked and approved as a reverse light (ECE R148), this super compact light combines modern aesthetics with outstanding performance. Its sleek and contemporary design seamlessly integrates with your vehicle, making it both functional and stylish.
✓ Extremely low profile with a height of 17 mm
✓ Approved as a reverse light, ECE R23
✓ 140° wide beam pattern
Specifications:
- E-marked: ECE R148 (previous R23) - approved as reverse light
- Range: 31m (1 lux)
- Lumen: 2800 lumens (actual 1750)
- Light distribution: 140° wide beam pattern
- Color temperature: 5000K
- Power: 30W (6 x 5W LED)
- IP rating: IP68 (water and dust proof)
- Electronic thermal management
- Voltage: 9-36V
- 2A at 12V and 1A at 24V
- EMC certified: ECE R10
Dimensions:
- Width: 86 mm
- Height: 17 mm (26 mm with bracket)
- Depth: 44 mm
- 30 cm cable with 2 pole DT connector
Note: The DT connector should not be cut, as this increases the risk of moisture damage and voids the warranty. A DT connector (male) with a splice is included with the product.
