Collection: Automotive Vehicle Lighting (1229)

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

• Universally usable
• Compact design
• Outstanding lighting performance
• Width: 99mm - Height: 89mm - Depth: 157mm - Lamp Type: HB3 - with bulb
• Light functions: 1 - with high beam/without position light
• Registration Type: SAE/ECE - for right-hand traffic
• Housing Colour: Black

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• DE-H1 headlamp insert, driving lamp for installation (left / right) - with ECE approval
• The headlamp insert has 1 light function: High beam
• Lamp type: H1, without bulbs, headlamp with flat lens
• Lamp Type: H1 - without bulbs
• Light functions: 1 - with high beam
• Fulfils ECE norm.: R112/R8 - Prot.type (IP Code): IP5KX/IPX9K
• Mounting Type: Fitting/Screw Connection - Fastening Type: Four-point attachment

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• Halogen headlamp insert for installation (left / right) - with ECE approval
• The headlamp insert has 1 light function: High beam
• Lamp type: H1
• Width: 103mm - Depth: 104mm - Fitting Depth: 120mm - Lamp Type: H1 - with bulb
• Light functions: 1 - with high beam
• Registration Type: ECE
• Mounting Type: Fitting

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H1 headlamp insert, main headlamp for installation (left / right) - for left-hand traffic / right-hand traffic, with ECE approval
• The headlamp insert has 1 light function: High beam
• Lamp type: H1, without bulb, with cap
• Width: 167mm - Height: 107mm - Lamp Type: H1 - without bulb
• Light functions: 1 - with high beam
• Registration Type: ECE - for left-hand traffic/for right-hand traffic
• Mounting Type: Fitting

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H1 headlamp insert, main headlamp for installation (left / right) - for left-hand traffic / right-hand traffic, with ECE approval
• The headlamp insert has 1 light function: High beam
• Lamp type: H1, without bulb
• Ø: 145mm - Height: 89mm - Depth: 88mm - Lamp Type: H1 - without bulb - with reflector
• Light functions: 1 - with high beam
• Fulfils ECE norm.: R8 - for right-hand traffic/for left-hand traffic
• Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• Incandescent lamp driving lamp set as a set for installation
• The headlamp insert has 1 light function: High beam

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 103mm - Depth: 120mm - Lamp Type: T4W/H1 - with bulbs/Electromagnetic Compatibility (EMC)
• Light functions: 2 - with high beam/with position light
• Registration Type: ECE - for right-hand traffic

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 103mm - Height: 113mm - Depth: 120mm - Lamp Type: H1 - with bulb - Electromagnetic Compatibility (EMC)
• Light functions: 1 - without position light/with high beam
• Registration Type: ECE - for right-hand traffic/for left-hand traffic - Prot.type (IP Code): IPX9K/IPX4K

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1 - with bulb
• Light functions: 1 - without position light/with high beam
• Registration Type: ECE - for right-hand traffic/for left-hand traffic - Prot.type (IP Code): IPX9K/IPX4K

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1/T4W - with bulbs
• Light functions: 2 - with high beam/with position light
• Registration Type: ECE - for right-hand traffic - Prot.type (IP Code): IPX9K/IPX4K

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1 - Electromagnetic Compatibility (EMC)
• Light functions: 1 - without position light/with high beam
• Registration Type: ECE - for right-hand traffic

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: T4W/H1 - with bulbs
• Light functions: 2 - with position light/with high beam
• Registration Type: ECE/CCC - for left-hand traffic/for right-hand traffic

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1 - with bulb - Electromagnetic Compatibility (EMC)
• Light functions: 1 - without position light/with high beam
• Registration Type: ECE - for right-hand traffic

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• Halogen headlamp insert, driving lamp for installation - with ECE approval
• The headlamp insert has 2 light functions: High beam / position light
• Lamp type: T4W
• Lamp Type: T4W
• Light functions: 2 - with high beam/with position light
• Registration Type: ECE
• Mounting Type: Fitting

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The Bi-LED modules L70 or L5570 as well as the BI halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

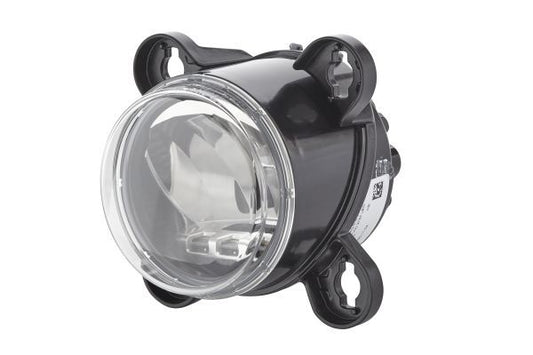

• The R 80 features an innovative reflector design that provides particularly homogeneous lighting that neither distracts nor fatigues the driver.
• LED lighting also increases safety, especially in comparison with halogen headlights.
• Thanks to the high colour temperature of the LEDs, the illumination appears more similar to daylight and the driver sees much better and does not tire as quickly. The driving comfort increases.
• The R 80 LED headlamps offer a long, maintenance-free service life and reduce operating costs compared to conventional halogen products, even in vehicles with low usage.
• The robust design with aluminium heat sink and impact resistant polycarbonate lens allows the use in rough environments and under maximum demands.
• Width: 117mm - Height: 118mm - Depth: 123mm - Lamp Type: LED
• Light functions: 2 - with high beam (LED)

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Lamp Type: H7 - with bulb - with bulbs
• Light functions: 1 - without position light/with high beam
• Registration Type: CCC - Fulfils ECE norm.: R50/R8/R7/R112 - Prot.type (IP Code): IP5KX/IPX9K
• Mounting Type: Fitting/Screw Connection - Fastening Type: Four-point attachment
