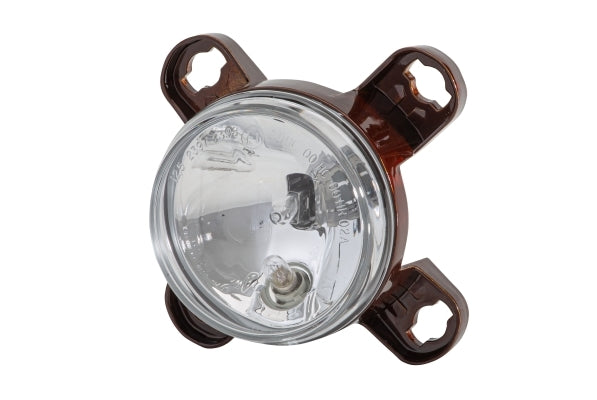

HELLA 1K0 247 043-097 DE/FF Headlight 90mm performance 24V round Hardened diffusing lens transparent- right/left

HELLA 1K0 247 043-097 DE/FF Headlight 90mm performance 24V round Hardened diffusing lens transparent- right/left

SKU: 1K0-247-043-097

In stock

  • SKU: 1K0-247-043-097
  • SKU: 1K0-247-043-097
  • SKU: 1K0-247-043-097
1 3
Product Details Related Products SpecificationsReviews

Product Details

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

  • Individual front design thanks to modular construction
  • Numerous application possibilities even in more demanding environments
  • Optimised light output and homogeneous illumination with little stray light
  • Water-protected standard plug-in system for incandescent lamps

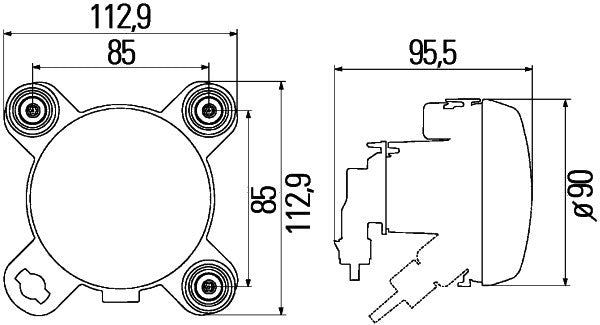

  • Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1/T4W - with bulbs
  • Light functions: 2 - with high beam/with position light
  • Registration Type: ECE - for right-hand traffic - Prot.type (IP Code): IPX9K/IPX4K

Equivalent OEMs

EVOBUS 003 820 54 56 01, EVOBUS A0038205456 01, IVECO 5801 342354, MERCEDES-BENZ 003 820 545 601, MERCEDES-BENZ A 003 820 545 601, TATA 48.331.39.020, VAN HOOL 11228645, VDL 30036229

Related Products

Specifications

Item Attributes Item Attributes
Mounting Type Fitting
Fastening Type 3-point attachment
Lamp Type H1 / T4W
Light Design FF / DE
Voltage 24 V
Fitting Position right / left
Width 113 mm
Height 113 mm
Depth 97 mm
Light Function with position light / with high beam
Light functions 2
Prot.type (IP Code) IPX9K / IPX4K
Dust Cover with dust cover
Registration Type ECE
Reference number 12.5
Shape round
Housing Colour Black
Illuminated Area 90 mm

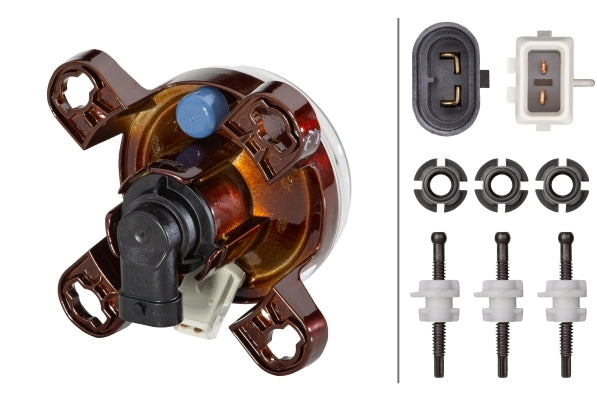

Additionally required parts 8JD 156 151-807
Diffusing Lens Material Glass
Lens Colour transparent
Diffusing Lens Type Hardened diffusing lens
Supplementary Article/Info 2 with bulbs
Left-hand/Right-hand Traffic for right-hand traffic
Assembly by qualified personnel required! Assembly by qualified personnel required!
