Collection: Automotive Vehicle Lighting (1229)

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• 90 mm cover lens: Made of plastic especially resistant to stone chipping. Optics-free - for direct view of the lens.
• 70 mm lens: Optic-free, made of glass, the light from the reflector is projected in the desired direction. Excellent light output and extremely homogeneous illumination with little stray light.
• Free-form reflector: Computer-calculated free-form plastic reflector focuses the light through the precision lens.
• Simple installation with 4 pre-mounted adjusting screws on the vehicle body or optionally on an additional support frame (accessory).
• Can be ideally combined with other modules of the 90 mm series.
• Lamp Type: LED - with control unit
• Light functions: 1 - with low beam (LED)

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• 90 mm cover lens: Made of plastic especially resistant to stone chipping. Optics-free - for direct view of the lens.
• 70 mm lens: Optic-free, made of glass, the light from the reflector is projected in the desired direction. Excellent light output and extremely homogeneous illumination with little stray light.
• Free-form reflector: Computer-calculated free-form plastic reflector focuses the light through the precision lens.
• Simple installation with 4 pre-mounted adjusting screws on the vehicle body or optionally on an additional support frame (accessory).
• Can be ideally combined with other modules of the 90 mm series.
• Width: 143mm - Height: 143mm - Depth: 182mm - Lamp Type: LED - Electromagnetic Compatibility (EMC)
• Light functions: 1 - with low beam (LED)

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The Bi-LED modules L70 or L5570 as well as the BI halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• The R 80 features an innovative reflector design that provides particularly homogeneous lighting that neither distracts nor fatigues the driver.
• LED lighting also increases safety, especially in comparison with halogen headlights.
• Thanks to the high colour temperature of the LEDs, the illumination appears more similar to daylight and the driver sees much better and does not tire as quickly. The driving comfort increases.
• The R 80 LED headlamps offer a long, maintenance-free service life and reduce operating costs compared to conventional halogen products, even in vehicles with low usage.
• The robust design with aluminium heat sink and impact resistant polycarbonate lens allows the use in rough environments and under maximum demands.
• Width: 117mm - Height: 118mm - Depth: 123mm - Lamp Type: LED
• Light functions: 2 - with low beam (LED)

The C140 LED is the first combination headlight on the market to feature all light functions in LED technology: low beam, high beam, indicator and position light (as LED light guide). The special freeform reflector together with the LED light source produces significantly better light than headlights with halogen bulbs. With its daylight colour, the light appears far brighter to the eye and makes working at night less tiring. The housing of the C140 LED is made of aluminum and features cooling fins on its rear, which ensure heat removal from the high-power LEDs. A specially developed thermal design with temperature sensors prevents the headlight from overheating. With its robust, heavy-duty bracket and a lens made of toughened, shatterproof plastic, the headlight is particularly resistant to vibration and impact. Ideal for the tough conditions on construction vehicles (strong vibrations, dust, wetness, mechanical shock, etc.). The LED technology enables a lifetime of over 20,000 hours. The C140 LED headlight is a fully sealed, maintenance-free system: it obviates the need to replace bulbs, saving time and money for the final consumer. The low LED power consumption compared to conventional halogen headlights also saves fuel, further driving down costs. The C140 LED meets all ECE and SAE requirements and is both approvable and ideal for use almost anywhere in the world. Additional approvals are required for use in China.

• Combination main headlamp in 100% LED technology
• Excellent light distribution
• For extreme and highly demanding applications
• Width: 248mm - Height: 167mm - Depth: 114mm - Lamp Type: LED
• Light functions: 4 - with indicator/with high beam/with position light/with low beam
• Registration Type: ECE/SAE - for left-hand traffic - Prot.type (IP Code): IP6K9K
• Housing Colour: Black - Diffusing Lens Material: Plastic - Lens Colour: transparent

The C140 LED is the first combination headlight on the market to feature all light functions in LED technology: low beam, high beam, indicator and position light (as LED light guide). The special freeform reflector together with the LED light source produces significantly better light than headlights with halogen bulbs. With its daylight colour, the light appears far brighter to the eye and makes working at night less tiring. The housing of the C140 LED is made of aluminum and features cooling fins on its rear, which ensure heat removal from the high-power LEDs. A specially developed thermal design with temperature sensors prevents the headlight from overheating. With its robust, heavy-duty bracket and a lens made of toughened, shatterproof plastic, the headlight is particularly resistant to vibration and impact. Ideal for the tough conditions on construction vehicles (strong vibrations, dust, wetness, mechanical shock, etc.). The LED technology enables a lifetime of over 20,000 hours. The C140 LED headlight is a fully sealed, maintenance-free system: it obviates the need to replace bulbs, saving time and money for the final consumer. The low LED power consumption compared to conventional halogen headlights also saves fuel, further driving down costs. The C140 LED meets all ECE and SAE requirements and is both approvable and ideal for use almost anywhere in the world. Additional approvals are required for use in China.

• Combination main headlamp in 100% LED technology
• Excellent light distribution
• For extreme and highly demanding applications
• Width: 248mm - Height: 167mm - Depth: 114mm - Lamp Type: LED
• Light functions: 4 - with high beam/with indicator/with position light/with low beam
• Registration Type: SAE/ECE - for left-hand traffic - Prot.type (IP Code): IP6K9K
• Housing Colour: Black - Diffusing Lens Material: Plastic - Lens Colour: transparent

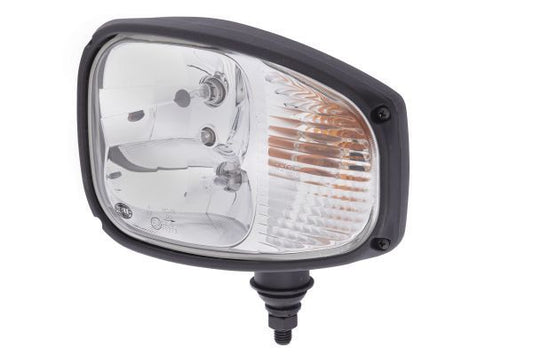

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.

• HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
• It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
• Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
• The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
• Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.
• Lamp Type: T4W/H7/H3/PY21W - with bulbs
• Light functions: 4 - with position light/with low beam/with indicator/with high beam

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H4 headlamp insert, main headlamp for installation (left / right) - for left-hand traffic, with ECE approval
• The headlamp insert has 3 light functions: Low beam / High beam / Position light
• Lamp type: H4, without bulbs
• Lamp Type: H4 - without bulbs
• Light functions: 3 - with low beam/with high beam/with position light
• Registration Type: ECE - for left-hand traffic
• Mounting Type: Fitting

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H4 headlight insert, main headlight for surface-mounting / installation
• The headlamp insert has 2 light functions: Low beam / High beam
• Lamp type: H4, without bulbs
• Ø: 150mm - Length: 167mm - Width: 167mm - Height: 100mm - Depth: 109mm - Lamp Type: H4 - without bulb - without bulbs
• Light functions: 2 - with high beam/with low beam
• Fulfils ECE norm.: R20/R7 - for right-hand traffic/for left-hand traffic
• Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H4 headlamp insert, main headlamp for installation (left / right) - for left-hand traffic, with ECE approval
• The headlamp insert has 2 light functions: Low beam / High beam
• Lamp type: H4
• Ø: 150mm - Length: 167mm - Width: 107mm - Height: 107mm - Depth: 109mm - Lamp Type: H4 - without bulb - without bulbs
• Light functions: 2 - with low beam/with high beam
• Fulfils ECE norm.: R20/R7 - for left-hand traffic
• Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H4 main headlamp set as a set for surface-mounting / installation (left) - for left-hand traffic, with ECE approval
• The headlamp insert has 2 light functions: Low beam / High beam
• Lamp type: H4, with bulbs
• Lamp Type: H4 - with bulbs
• Light functions: 2 - with low beam/with high beam
• Registration Type: ECE - for left-hand traffic
• Mounting Type: mounting/Fitting

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• Halogen headlamp insert, main headlamp for installation (left / right) - for left-hand traffic, with ECE approval
• The headlamp insert has 3 light functions: Low beam / High beam / Position light
• Lamp type: H4/T4W
• Ø: 169mm - Length: 107mm - Width: 169mm - Height: 107mm - Depth: 88mm - Lamp Type: H4/T4W - without bulb - without bulbs
• Light functions: 3 - with low beam/with high beam/with position light
• Fulfils ECE norm.: R20/R7 - for left-hand traffic
• Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H4 headlamp insert, main headlamp for surface-mounting / flush-fitting (left / right) - for left-hand traffic, with ECE approval
• The headlamp insert has 3 light functions: Low beam / High beam / Position light
• Lamp type: H4
• Lamp Type: H4
• Light functions: 3 - with low beam/with high beam/with position light
• Registration Type: ECE - for left-hand traffic
• Mounting Type: mounting/Fitting

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H4 headlight insert, main headlight for surface-mounting / flush-fitting (left / right) - for left-hand traffic
• The headlamp insert has 3 light functions: Low beam / High beam / Position light
• Lamp type: H4
• Ø: 162mm - Length: 106mm - Width: 169mm - Height: 106mm - Depth: 106mm - Lamp Type: H4 - without bulb - without bulbs
• Light functions: 3 - with high beam/with position light/with low beam
• Fulfils ECE norm.: R20/R7 - for left-hand traffic
• Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

The M133 Halogen is a compact bi-halogen main headlamp in a classic round design. It combines low beam and high beam in one light weight module. This makes the halogen main headlamp ideal for mounting situations with little space.

• FF/halogen main headlamp M133 for installation (left / right) - for left-hand traffic, with ECE approval
• The headlamp has 3 light functions: Low beam / High beam / Position light
• Lamp type: H4
• Width: 150mm - Height: 150mm - Depth: 76mm - Lamp Type: H4 - with bulbs
• Light functions: 3 - with position light/with high beam/with low beam
• Registration Type: ECE - for left-hand traffic
• Mounting Type: Fitting

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H4 main headlamp for installation (left / right, 4-point attachment) - for left-hand traffic, with ECE / SAE approval
• The headlamp has 2 light functions: Low beam / High beam
• Lamp type: H4
• Lamp Type: H4
• Light functions: 2 - with high beam/with low beam
• Registration Type: SAE/ECE - for left-hand traffic
• Mounting Type: Fitting - Fastening Type: Four-point attachment

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

• Universally usable
• Compact design
• Outstanding lighting performance
• Width: 99mm - Height: 89mm - Depth: 157mm - Lamp Type: W3W/HB3 - with pipe
• Light functions: 2 - with high beam/with position light
• Registration Type: SAE/ECE - for right-hand traffic
• Housing Colour: Black
