Schmitz Cargobull Trailer Parts (78)

Schmitz Cargobull trailer parts covering Winnard brake pads and discs, EBS spring brakes and calipers, Haldex spring brake actuators, DT bearings and Universal Components air tanks. EBS brake chambers cover single, disc and spring brake types across SK7 caliper configurations. Parts are available for UK nationwide delivery or same-day collection from our Midlands branches.

  • A1063 Air Tank 60 Litre 310mm Diameter

    A1063 Air Tank 60 Litre 310mm Diameter

    SKU: A1063MUL

    Capacity (Litre) 60
    Diameter (mm)     310
    Length (mm) 895
    Operating Pressure (bar) 12.5
    Weight (KG) 17.8
    £65.12 ex. VAT
    £65.12 ex. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Pads WP1575

    Brake Pads WP1575

    SKU: WP1575
    Dual Cut to Work on both Schmitz & SAF Applications.
    £69.37 ex. VAT
    £69.37 ex. VAT
    In stock Click & Collect Same Day Delivery
  • Tapered roller bearing - 5.30133

    Tapered roller bearing - 5.30133

    SKU: 5.30133
    Properties Data
    Fitting Position inner
    Fitting Position outer
    Height [mm] 39.0
    Inner Diameter [mm] 100.0
    Outer Diameter [mm] 150.0
    £31.67 ex. VAT
    £31.67 ex. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Pads WP139

    Brake Pads WP139

    SKU: WP139
    Winnard ECE R90 approved. 4 Identical pads. Supplied with 2 fitting kit options, WA254 (PAN 22-1) & WA275 (MAX 22T).
    £72.80 ex. VAT
    £72.80 ex. VAT
    In stock Click & Collect Same Day Delivery
  • Brake Disc SCH1001

    Brake Disc SCH1001

    SKU: SCH1001
    Schmitz Applications.
    £104.90 ex. VAT
    £104.90 ex. VAT
    In stock Click & Collect Same Day Delivery
  • Haldex 3462430101 Drum Spring Brake - Double Diaphragm Type 24/30

    Haldex 3462430101 Drum Spring Brake - Double Diaphragm Type 24/30

    SKU: 3462430101

    Drum Spring Brake
    Double Diaphragm Type 24/30
    Thread Size: M16 x 1,5
    £113.00 ex. VAT
    £113.00 ex. VAT
    In stock Click & Collect Same Day Delivery

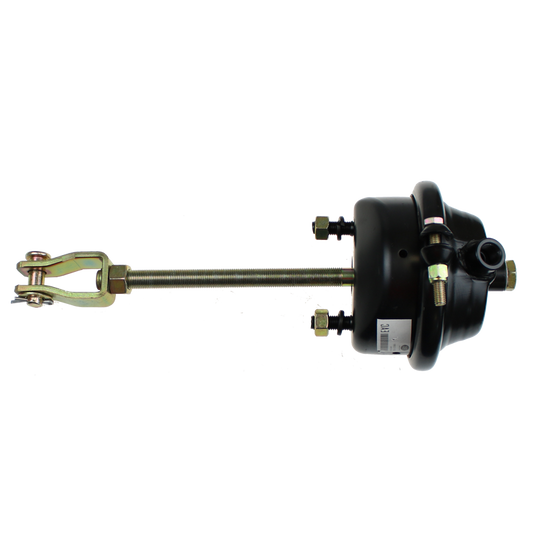

  • EBS 02.01.12.900 BRAKE CHAMBER - MULTI-FIT - SINGLE - CAM - TY12

    EBS 02.01.12.900 BRAKE CHAMBER - MULTI-FIT - SINGLE - CAM - TY12

    SKU: 02.01.12.900

    Brake chambers are used on truck and trailer air brake systems, located at each wheel, where compressed air is converted into a mechanical force used to apply the brakes and stop the vehicle. They are also designed to apply the the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake. There are designs to cover Cam Brake and also Disc Brake applications, along with different sizes and strokes. The most common strokes are standard and long stroke.

    Weight 2.74 kg
    Cross References BPW : 0544412010, NEOPLAN : 07010012, 082200300, 82200300, KRONE : 09451581, 500945158, 945158, SCHMITZ CARGOBULL : 1020751, HALDEX : 123120002, 345100168, DAF : 1505025
    £17.02 ex. VAT
    £17.02 ex. VAT
    In stock Click & Collect Same Day Delivery

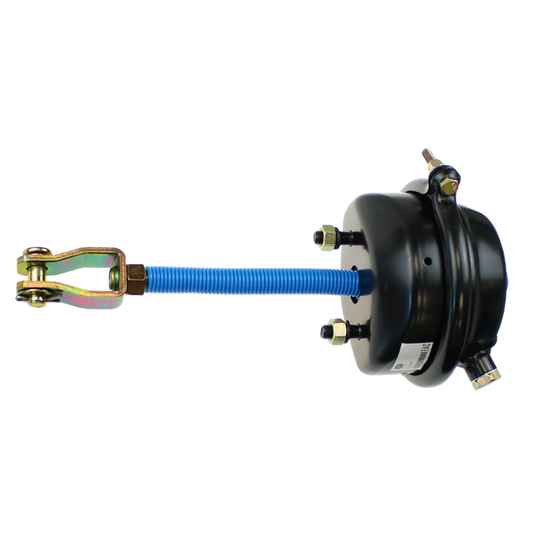

  • EBS 02.01.16.900 BRAKE CHAMBER - MULTI-FIT - SINGLE - CAM - TY16

    EBS 02.01.16.900 BRAKE CHAMBER - MULTI-FIT - SINGLE - CAM - TY16

    SKU: 02.01.16.900

    Brake chambers are used on truck and trailer air brake systems, located at each wheel, where compressed air is converted into a mechanical force used to apply the brakes and stop the vehicle. They are also designed to apply the the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake. There are designs to cover Cam Brake and also Disc Brake applications, along with different sizes and strokes. The most common strokes are standard and long stroke.

    Weight 3.3 kg
    Dimensions 190 x 326 x 165 mm
    Cross References MERCEDES BENZ : 0004209924, 0014200224, 0014200624, 0014206224, 0034201324, 0054207518, 0064202718, 0074200118, A0004209924, A0014200224, A0014200624, A0014206224, A0054207518, A0064202718, A0074200118, FELDBINDER : 001658, SCHMITZ CARGOBULL : 051007, 51007, NOOTEBOOM : 05207, 305049, BPW : 0544413010, NEOPLAN : 07010016
    £17.76 ex. VAT
    £17.76 ex. VAT
    In stock Click & Collect Same Day Delivery

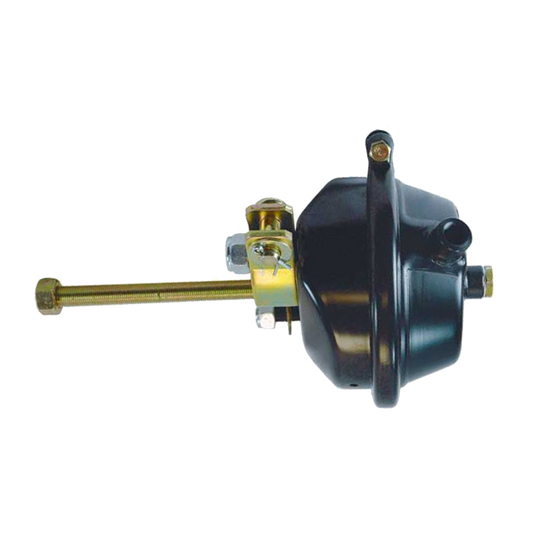

  • EBS 02.01.24.900 BRAKE CHAMBER - MULTI-FIT - SINGLE - CAM - TY24

    EBS 02.01.24.900 BRAKE CHAMBER - MULTI-FIT - SINGLE - CAM - TY24

    SKU: 02.01.24.900

    Brake chambers are used on truck and trailer air brake systems, located at each wheel, where compressed air is converted into a mechanical force used to apply the brakes and stop the vehicle. They are also designed to apply the the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake. There are designs to cover Cam Brake and also Disc Brake applications, along with different sizes and strokes. The most common strokes are standard and long stroke.

    Weight 3.9 kg
    Cross References MERCEDES BENZ : 0004207424, 0004207524, 0004209124, 0004209224, 0014203524, 0014203624, 0014203724, 0014203824, 0014203924, 0014206724, 0014206824, 0014207424, 0044208618, 0044208718, 0064201618, 0064201718, A0004207424, A0004207524, A0004209124, A0004209224, A0014203524, A0014203624, A0014203724, A0014203824, A0014203924, A0014206724, A0014206824, A0014207424, A0044208618, A0044208718, A0064201618, A0064201718, RENAULT : 0038855200, 5021170051, FELDBINDER : 006760, 006761, NOOTEBOOM : 0305051, 05209, 305051, SAF-HOLLAND : 04454109070, 4454112900, SCHMITZ CARGOBULL : 051012, 51012
    £19.24 ex. VAT
    £19.24 ex. VAT
    In stock Click & Collect Same Day Delivery

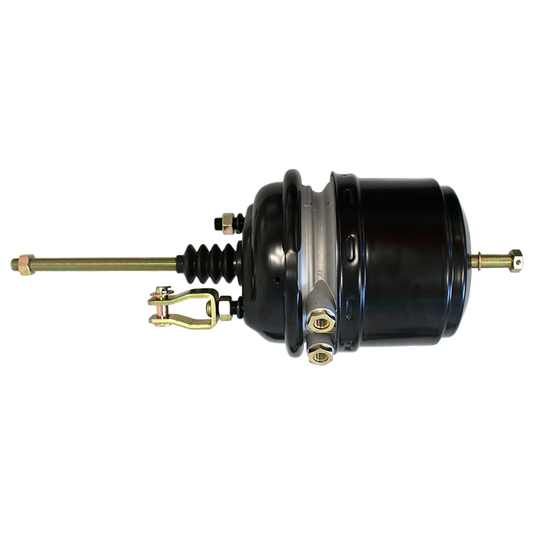

  • EBS 02.01.3030.102 SPRING BRAKE - MULTI-FIT - CAM - TY30/30

    EBS 02.01.3030.102 SPRING BRAKE - MULTI-FIT - CAM - TY30/30

    SKU: 02.01.3030.102

    Brake chambers are used on truck and trailer air brake systems, located at each wheel, where compressed air is converted into a mechanical force used to apply the brakes and stop the vehicle. They are also designed to apply the the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake. There are designs to cover Cam Brake and also Disc Brake applications, along with different sizes and strokes. The most common strokes are standard and long stroke.

    Weight 11.76 kg
    Cross References SCHMITZ CARGOBULL : 1020767, GOLDHOFER : 169691, SCANIA : 2089721, ALEXANDER DENNIS : 660740, DOLL TRAILERS : 8143104, EVOBUS : 89199797624
    £81.40 ex. VAT
    £81.40 ex. VAT
    In stock Click & Collect Same Day Delivery
  • EBS 02.06.1616.450 SPRING BRAKE - DISC - TY16/16 ( 9254644500 )

    EBS 02.06.1616.450 SPRING BRAKE - DISC - TY16/16 ( 9254644500 )

    SKU: 02.06.1616.450

    Brake chambers are used on truck and trailer air brake systems, located at each wheel, where compressed air is converted into a mechanical force used to apply the brakes and stop the vehicle. They are also designed to apply the the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake. There are designs to cover Cam Brake and also Disc Brake applications, along with different sizes and strokes. The most common strokes are standard and long stroke.

    Weight 7.6 kg
    Cross References FELDBINDER : 007913, 7913, MERCEDES BENZ : 0174208818, BPW : 0203278600, 0544441030, SCHMITZ CARGOBULL : 1020764, FAYMONVILLE TRAILERS : 13845, DAF : 1505447
    £125.80 ex. VAT
    £125.80 ex. VAT
    In stock Click & Collect Same Day Delivery

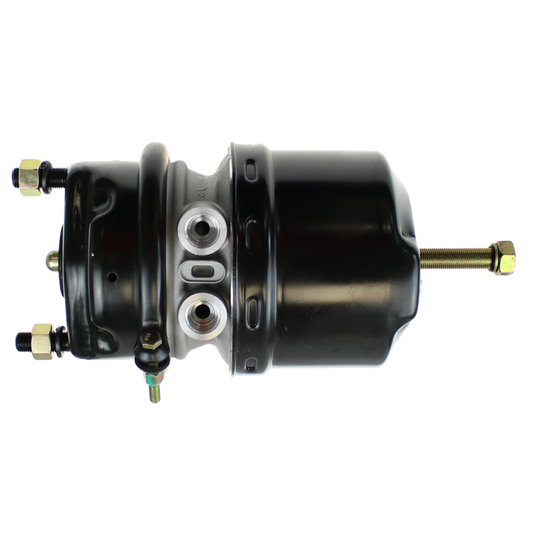

  • EBS 02.06.1616.451 SPRING BRAKE - DISC - TY16/16 ( 9254644510 )

    EBS 02.06.1616.451 SPRING BRAKE - DISC - TY16/16 ( 9254644510 )

    SKU: 02.06.1616.451

    Brake chambers are used on truck and trailer air brake systems, located at each wheel, where compressed air is converted into a mechanical force used to apply the brakes and stop the vehicle. They are also designed to apply the the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake. There are designs to cover Cam Brake and also Disc Brake applications, along with different sizes and strokes. The most common strokes are standard and long stroke.

    Weight 7.6 kg
    Dimensions 382 x 174 x 182 mm
    Cross References MERCEDES BENZ : 0174208918, BPW : 0203278700, 0544441040, SCHMITZ CARGOBULL : 1020763, PACCAR DAF : 1506402, NOOTEBOOM : 1815492, SCANIA : 2090334
    £125.80 ex. VAT
    £125.80 ex. VAT
    In stock Click & Collect Same Day Delivery

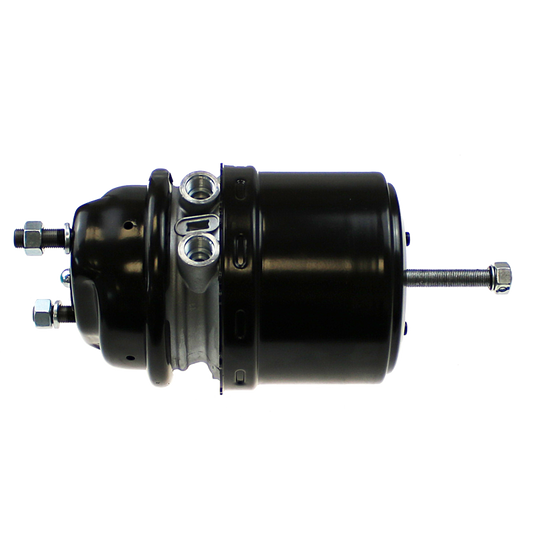

  • EBS 02.06.2024.032 SPRING BRAKE - DISC - TY20/24 ( 9254600320 )

    EBS 02.06.2024.032 SPRING BRAKE - DISC - TY20/24 ( 9254600320 )

    SKU: 02.06.2024.032

    Brake chambers are used on truck and trailer air brake systems, located at each wheel, where compressed air is converted into a mechanical force used to apply the brakes and stop the vehicle. They are also designed to apply the the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake. There are designs to cover Cam Brake and also Disc Brake applications, along with different sizes and strokes. The most common strokes are standard and long stroke.

    Weight 8.1 kg
    Cross References SCHMITZ CARGOBULL : 1125682, LANGENDORF : 1235495, DAF : 1519191, SCANIA : 2090328, KOGEL TRAILERS : 344149, SAF-HOLLAND : 4454105100
    £144.00 ex. VAT
    £144.00 ex. VAT
    In stock Click & Collect Same Day Delivery
  • EBS 03.22.400 NEW CALIPER L/H ( SCHMITZ PAN22 )

    EBS 03.22.400 NEW CALIPER L/H ( SCHMITZ PAN22 )

    SKU: 03.22.400

    The brake Caliper plays a central role in a disc-brake system and has two functions. First, it acts either as a bracket to support the brake pads on either side of the brake disc. The second, it uses pistons to convert pressure exerted when the foot brake is applied and clamps the brake pads against the brake disc to slow the wheels speed and bring the vehicle to a stop.

    Weight 30 kg
    Cross References SCHMITZ CARGOBULL : 1063036, 1110435, WABCO : 640225015R, 6402250300, 6402250400
    £362.60 ex. VAT
    £362.60 ex. VAT
    In stock Click & Collect Same Day Delivery
  • EBS 03.22.410 NEW CALIPER R/H ( SCHMITZ PAN22 )

    EBS 03.22.410 NEW CALIPER R/H ( SCHMITZ PAN22 )

    SKU: 03.22.410

    The brake Caliper plays a central role in a disc-brake system and has two functions. First, it acts either as a bracket to support the brake pads on either side of the brake disc. The second, it uses pistons to convert pressure exerted when the foot brake is applied and clamps the brake pads against the brake disc to slow the wheels speed and bring the vehicle to a stop.

    Weight 30 kg
    Cross References SCHMITZ CARGOBULL : 1063037, 1110436, WABCO : 6402250160, 6402250310, 6402250410
    £362.60 ex. VAT
    £362.60 ex. VAT
    In stock Click & Collect Same Day Delivery
  • EBS 07.01.1016 3/2 DC VALVE ( 4630360160 )

    EBS 07.01.1016 3/2 DC VALVE ( 4630360160 )

    SKU: 07.01.1016

    The distributor valve is an important functional component of the air brake system & sometimes referred to as the heart of the air brake system. The distributor valve senses drop and rise in brake pipe pressure for brake application & release respectively.

    Weight 0.23 kg
    Dimensions 61 x 75 x 60 mm
    Cross References FELDBINDER : 011476, SCHMITZ CARGOBULL : 051265, 114076, 51265, VAN HOOL : 10782273, DAF : 1518851, SCANIA : 1934920, VOLVO : 20453076
    £27.29 ex. VAT
    £27.29 ex. VAT
    In stock Click & Collect Same Day Delivery

Schmitz Cargobull trailer parts in stock at Truckstop Group

Schmitz Cargobull is one of the most common trailer brands in the UK fleet, and their axle and braking components are among the most frequently serviced parts in any trailer workshop. Our Schmitz range covers the braking system in full: Winnard brake pads WP1575 and WP139 with ECE R90 approval, Winnard brake disc SCH1001 for Schmitz axle applications, and a comprehensive EBS spring brake range.

EBS components cover single cam brake chambers (TY12, TY16, TY24 multi-fit), spring brakes for disc axles (TY16/16 and TY20/24 types), and spring brake cam types (TY30/30). EBS 03.09.7026 and 03.09.7036 new calipers complete with carrier suit SK7 axle configurations, which are the standard fitment on many Schmitz SAF and SDF axle variants. Haldex 3462430101 spring brake is a double diaphragm 24/30 unit for Haldex-equipped Schmitz trailers. DT tapered roller bearing 5.30133 and Universal Components A1063 60-litre air tank are also stocked.

Call our team with your axle type and brake system to confirm the right caliper or spring brake reference. UK nationwide delivery.

Frequently asked questions

Which brake pads fit Schmitz Cargobull trailers?

Winnard WP1575 and WP139 are ECE R90 approved pads covering Schmitz Cargobull disc brake applications. Call us with your axle type to confirm the correct pad reference.

What EBS brake chambers are available for Schmitz trailers?

We stock EBS multi-fit single cam brake chambers (TY12, TY16, TY24) and spring brakes for disc axles including TY16/16 and TY20/24 types. EBS is a diagnostic equipment and brake specialist brand, not to be confused with electronic braking system acronyms.

Are EBS SK7 calipers available?

Yes. EBS 03.09.7026 and 03.09.7036 new calipers, complete with carrier, are stocked for SK7 axle configurations fitted to Schmitz SAF and SDF axle types.
