HELLA 1AA 004 109-001 Asymmetric Headlight for Fendt for right-hand traffic- right/left

Name: HELLA 1AA 004 109-001 Asymmetric Headlight for Fendt for right-hand traffic- right/left
Brand: Hella
SKU: 1AA-004-109-001
Price: 48.17 GBP
Availability: OutOfStock

SKU: 1AA-004-109-001

Out of stock

1 3

Product Details Related Products Specifications Reviews

Product Details

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.

fits e.g. Fendt (please check exact vehicle application) - Light Design: Asymmetric - Lamp Type: R2 (Bilux)
Light functions: 2 - with high beam/with low beam
for right-hand traffic - Registration Type: ECE - Country Specific Design: Europe
without bulbs
Main headlamp for installation - for right-hand traffic, with ECE approval
The headlamp has 2 light functions: Low beam / High beam
Lamp type: R2 (Bilux), without bulbs

Equivalent OEMs

ASTRA 60230013, CASE IH 3 404170 R93, CASE IH 3140022R92, DEUTZ-FAHR 043 64846, DEUTZ-FAHR 043 64846KY1212-49, FENDT X 830.160.040, JOHN DEERE AZ 39 022, JOHN DEERE ZY 67 365, KOMATSU KM1061320300, MASSEY FERGUSON 75955, SCHANZLIN 2060075

Fits

Fendt

Specifications

Item Attributes	Item Attributes
Fitting Position	right / left
Left-hand/Right-hand Traffic	for right-hand traffic
Lamp Type	R2 (Bilux)
Voltage	24 V / 12 V

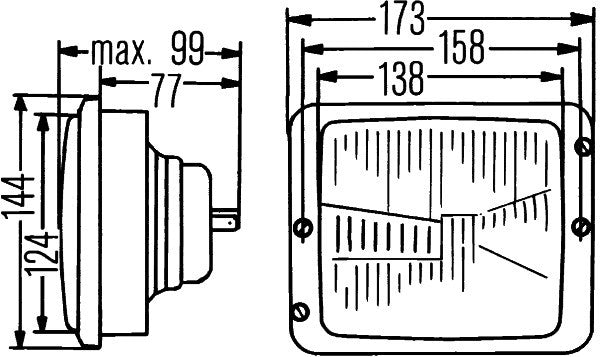

Depth	99 mm
Reference number	10
Prot.type (IP Code)	IP5K4K
Fitting Depth	77 mm
Illuminated Area	138 x 124 mm
Registration Type	ECE
Width	173 mm
Height	144 mm
Light Design	Asymmetric
Light Function	with high beam / with low beam
Mounting Type	Fitting
Supplementary Article/Info 2	without bulbs
Diffusing Lens Material	Glass
Frame Colour	Black
Frame Material	Plastic
Light functions	2
Country Specific Design	Europe
Assembly by qualified personnel required!	Assembly by qualified personnel required!
