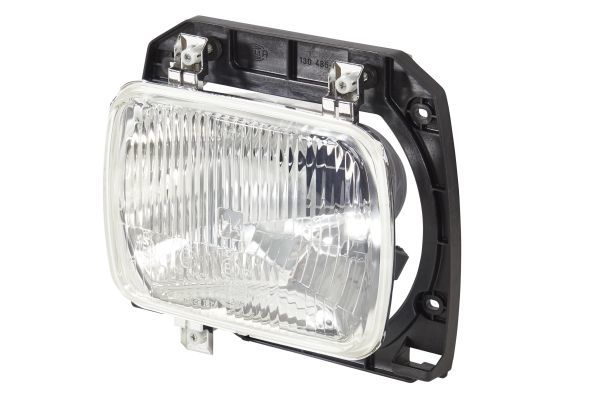

HELLA 1AE 003 427-151 Halogen Insert Headlight 24/12V rectangular SAE Crystal clear Blade Terminal - left

HELLA 1AE 003 427-151 Halogen Insert Headlight 24/12V rectangular SAE Crystal clear Blade Terminal - left

SKU: 1AE-003-427-151

In stock

  • SKU: 1AE-003-427-151
  • SKU: 1AE-003-427-151
  • SKU: 1AE-003-427-151
1 3
Product Details Related Products SpecificationsReviews

Product Details

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.

  • Headlamp insert for halogen main headlamp for installation (left) - for right-hand traffic, with ECE approval
  • The headlamp insert has 3 light functions: Low beam / High beam / Position light
  • Lamp type: H4/T4W, with cap, support frame and adjustment elements, without bulbs

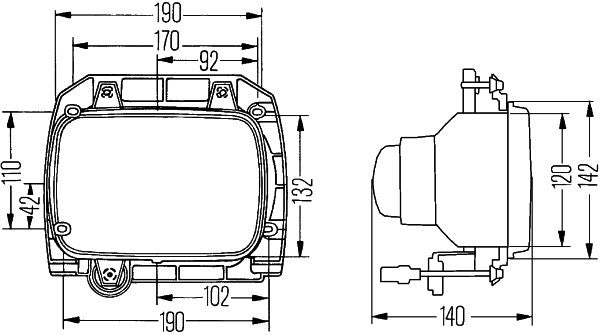

  • Ø: 178mm - Length: 131mm - Width: 190mm - Height: 142mm - Depth: 140mm - Lamp Type: H4/T4W - with adjuster - without bulbs/with holding frame
  • Light functions: 3 - with low beam/with position light/with high beam
  • Registration Type: SAE - Fulfils ECE norm.: R20/R7 - for right-hand traffic
  • Housing Colour: Grey - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Equivalent OEMs

IKARUS 70004-03185, IVECO 2120 702062, JCB 700/24100, REFORM 215442909, VAN HOOL 10562194, VDL 30003192, VDL 40100120, VDL 780065100, VOLVO 1 400 160 0, VOLVO 14001500, VOLVO 20548030

Related Products

Specifications

Item Attributes Item Attributes
Mounting Type Fitting
Fastening Type 3-point attachment
Light Design Halogen
Lamp Type H4 / T4W
Voltage 24 V / 12 V
Fitting Position left
Height 142 mm
Width 190 mm
Length 131 mm
Depth 140 mm
Ø 178 mm
Light Function with high beam / with position light / with low beam
Light functions 3
Fulfils ECE norm. R20 / R7
Registration Type SAE
Plug Blade Terminal
Reference number 17.5
Left-hand/Right-hand Traffic for right-hand traffic
Lens Colour Crystal clear
Housing Colour Grey
Illuminated Area 190 x 132 mm
Shape rectangular
Diffusing Lens Material Glass
Supplementary Article/Info 2 with holding frame / without bulbs
Supplementary Article/Supplementary Info with adjuster
Quantity 1
Assembly by qualified personnel required! Assembly by qualified personnel required!
