HELLA 1BL 008 193-001 Halogen/DE Insert Headlight 90mm Essential 12V round CCC Crystal clear Blade Terminal- right/left

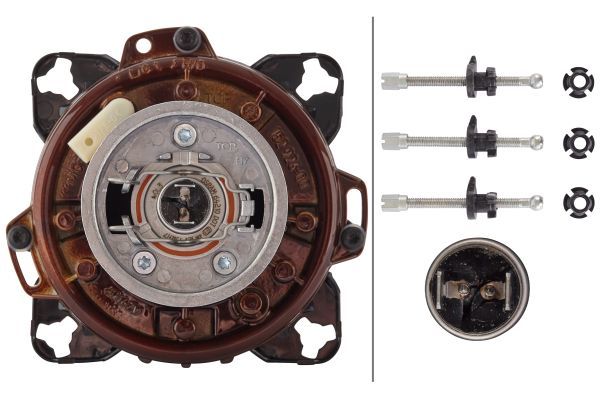

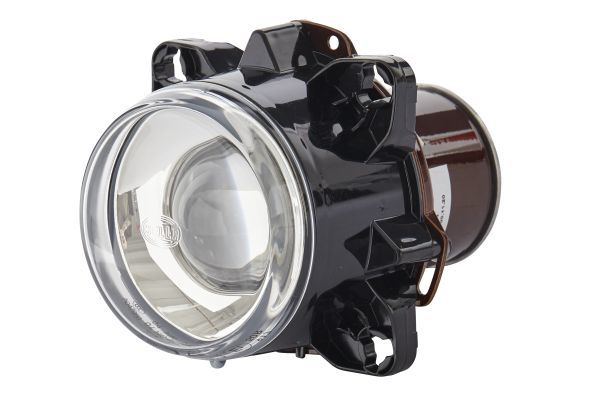

Name: HELLA 1BL 008 193-001 Halogen/DE Insert Headlight 90mm Essential 12V round CCC Crystal clear Blade Terminal- right/left
Brand: Hella
SKU: 1BL-008-193-001
Price: 51.39 GBP
Availability: InStock

SKU: 1BL-008-193-001

In stock

1 2

Product Details Related Products Specifications Reviews

Product Details

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

Individual front design thanks to modular construction
Numerous application possibilities even in more demanding environments
Optimised light output and homogeneous illumination with little stray light
Ø: 90mm - Length: 140mm - Width: 103mm - Height: 119mm - Depth: 165mm - Lamp Type: H7 - with bulb - with fastening material
Light functions: 1 - with low beam
Registration Type: CCC - Fulfils ECE norm.: R8/R112 - for right-hand traffic
Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Equivalent OEMs

AGCO 72437695, AGCO G931 900 020 140, AGCO G931 901 020 141, AMAZONE NA156, BOMAG 05751178, CASE IH 47056439., CLAAS 00166410, DELVANO 8041318, FENDT 72437695, FENDT A CW1 276 090, FENDT G 931 901 020 140, FENDT G 931 901 020 141, FENDT G931.900.020.140, HAKO 45604150000, HOLDER 147243, HYMER 0417288-00, HYMER 0879951-00, HYMER 1017245, HYMER 1603.15.38, HYMER 417288, HYMER 56933, IVECO 6950 1644, JCB 8424/01117, LIEBHERR 1 002 214 0, MASSEY FERGUSON 4 287 246 M1, MITSUBISHI SMME31640S8, RENAULT 77 00 066 386, RENAULT 77 00 066 387, VOLVO 11117172, VW KSP 941 751 A, WIESMANN 063-05-03-ET-008

Fits

Claas / Fendt / Renault

Specifications

Item Attributes	Item Attributes
Mounting Type	Fitting
Fastening Type	3-point attachment
Light Design	Halogen / DE
Lamp Type	H7
Voltage	12 V
Fitting Position	left / right
Height	119 mm
Width	103 mm
Length	140 mm
Depth	165 mm
Ø	90 mm
Light Function	with low beam
Light functions	1
Fulfils ECE norm.	R112 / R8
Registration Type	CCC
Plug	Blade Terminal
Reference number	12.5
Left-hand/Right-hand Traffic	for right-hand traffic
Lens Colour	Crystal clear
Housing Colour	Black
Illuminated Area	90 mm
Shape	round
Diffusing Lens Material	Glass
Supplementary Article/Info 2	with fastening material
Supplementary Article/Supplementary Info	with bulb
Quantity	1
SVHC	7439-92-1; Lead
Assembly by qualified personnel required!	Assembly by qualified personnel required!
