HELLA 1BL 998 570-001 Halogen/DE Headlight Modul 60 12/24V round/SAE Blade Terminal- right/left

Name: HELLA 1BL 998 570-001 Halogen/DE Headlight Modul 60 12/24V round/SAE Blade Terminal- right/left
Brand: Hella
SKU: 1BL-998-570-001
Price: 42.86 GBP
Availability: InStock

SKU: 1BL-998-570-001

In stock

1 2

Product Details Related Products Specifications Reviews

Product Details

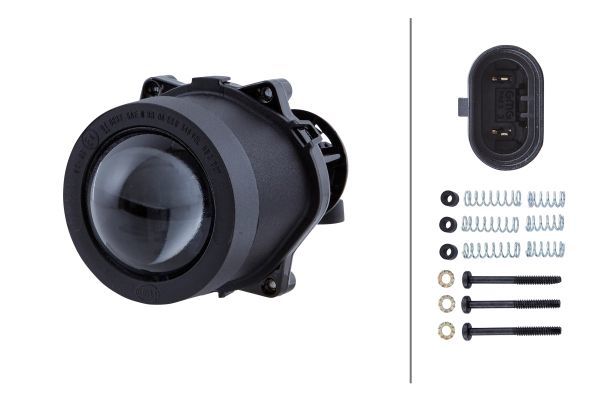

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

Universally usable
Compact design
Outstanding lighting performance

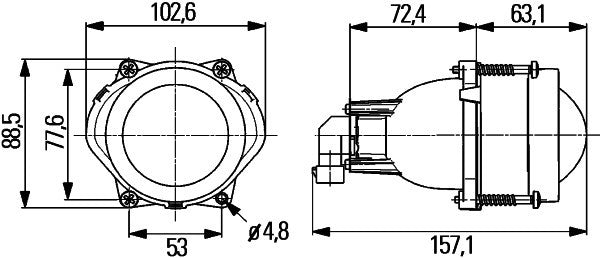

Width: 103mm - Height: 89mm - Depth: 157mm - Lamp Type: HB3 - with bulb - with bulbs
Light functions: 1 - with low beam
Registration Type: ECE/SAE - for right-hand traffic
Housing Colour: Black

Equivalent OEMs

AEBI 1109507-6, AGROMEHANIKA 1057059, AHLMANN 23119205, BM TRACTORS 4.01.017, CLAAS 21521560, HAKO 9 050736 9, ISEKI 1785-650-200-0, KTM 76214002000, LINDNER 3010414

Fits

Claas

Specifications

Item Attributes	Item Attributes
Mounting Type	Fitting
Lamp Type	HB3
Light Design	Halogen / DE
Voltage	24 V / 12 V
Fitting Position	left / right
Width	103 mm
Height	89 mm
Depth	157 mm
Light Function	with low beam
Light functions	1
Registration Type	SAE / ECE
Plug	Blade Terminal
Left-hand/Right-hand Traffic	for right-hand traffic
Shape	round
Housing Colour	Black
Illuminated Area	60 mm
Supplementary Article/Info 2	with bulbs
Supplementary Article/Supplementary Info	with bulb
SVHC	7439-92-1; Lead
Assembly by qualified personnel required!	Assembly by qualified personnel required!
