HELLA 1EE 996 174-211 Halogen Headlight Combi 220 12V Hardened diffusing lens transparent DEUTSCH plug 6-pin connector - left

HELLA 1EE 996 174-211 Halogen Headlight Combi 220 12V Hardened diffusing lens transparent DEUTSCH plug 6-pin connector - left

SKU: 1EE-996-174-211

In stock

Skip to product information
NaN of -Infinity

Product Details

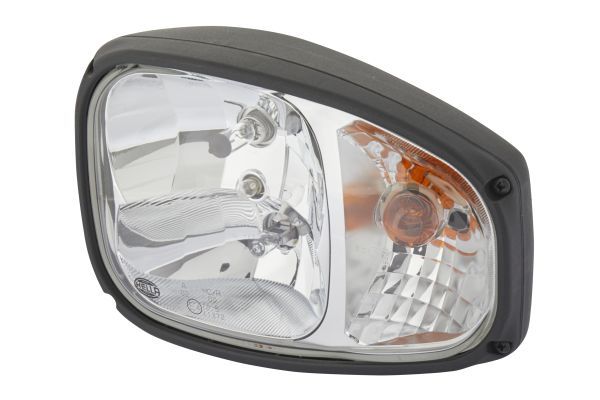

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.

  • HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
  • It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
  • Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
  • The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
  • Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.

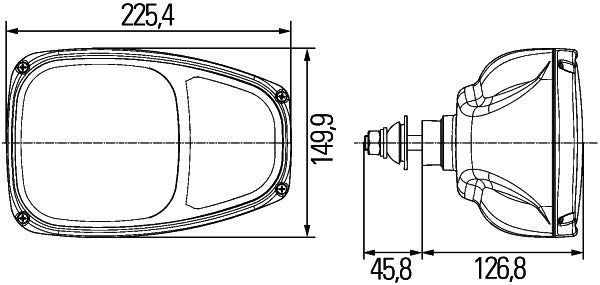

  • Width: 225mm - Height: 150mm - Depth: 127mm - Lamp Type: H7/H3/PY21W/T4W - with bulbs
  • Light functions: 4 - with indicator/with high beam/with low beam/with position light

Equivalent OEMs

AEBI R03F401002
KOMATSU 42N-06-35230
MERLO 103133
YANMAR 5350247536

Related Products

Specifications

Item Attributes Item Attributes
Mounting Type Fitting / mounting
Fastening Type Horizontal fastening
Lamp Type H7/H3 / T4W / PY21W
Light Design Halogen
Voltage 12 V
Fitting Position left
Width 225 mm
Height 150 mm
Depth 127 mm
Light Function with position light / with high beam / with low beam / with indicator
Light functions 4
Prot.type (IP Code) IPX9K / IP6K4K
Registration Type ECE

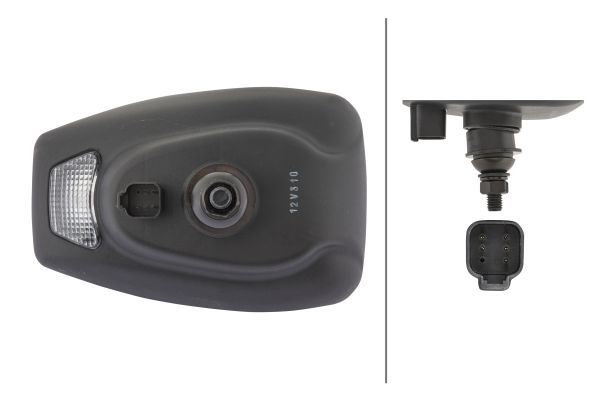

Plug DEUTSCH plug
Left-hand/Right-hand Traffic for right-hand traffic
Housing Colour Black
Illuminated Area 205 x 120 mm
Additionally required parts 8JA 201 022-831
Diffusing Lens Material Glass
Lens Colour transparent
Diffusing Lens Type Hardened diffusing lens
Number of pins 6 -pin connector
Supplementary Article/Info 2 with bulbs
Assembly by qualified personnel required! Assembly by qualified personnel required!
