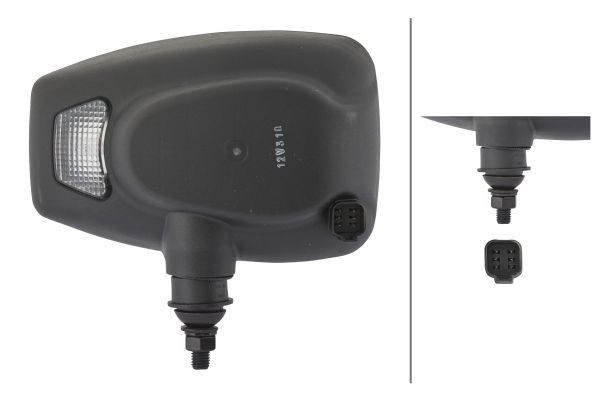

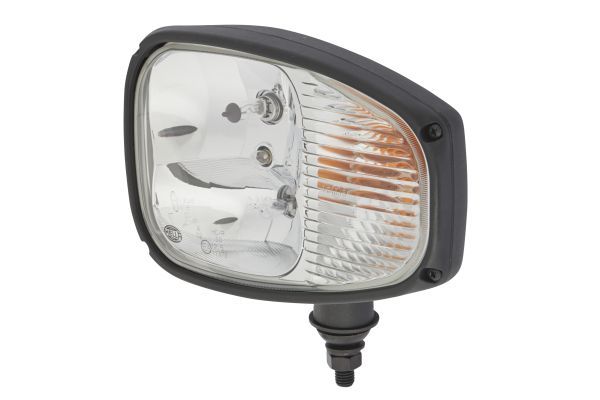

HELLA 1EE 996 174-251 Bulb Headlight Combi 220 12V/SAE DEUTSCH plug - left

HELLA 1EE 996 174-251 Bulb Headlight Combi 220 12V/SAE DEUTSCH plug - left

SKU: 1EE-996-174-251

Out of stock

  • SKU: 1EE-996-174-251
  • SKU: 1EE-996-174-251
  • SKU: 1EE-996-174-251
1 3
Product Details Related Products SpecificationsReviews

Product Details

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.

  • HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
  • It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
  • Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
  • The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
  • Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.

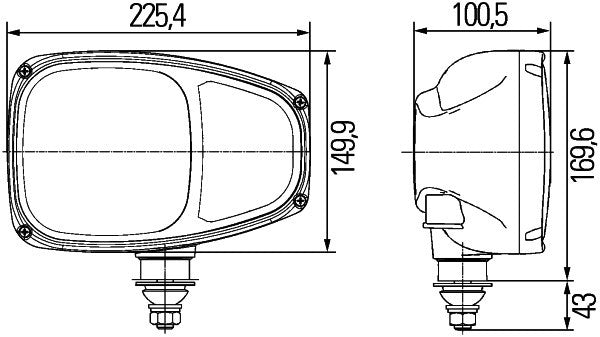

  • Width: 225mm - Height: 150mm - Depth: 101mm - Lamp Type: PY21W/H7/H3/T4W
  • Light functions: 4 - with indicator/with position light/with high beam/with low beam

Equivalent OEMs

AEBI 1268361-5, AEBI 1268892-3, AMMANN 1565928, FARESIN ME11096A40, KOMATSU 42T0643140, LIEBHERR 12218800, LIEBHERR 12218800 WIRD -257, MANITOU 265416, MANITOU 265416B, MANITOU J265416, TOYOTA 0050202, WEIRO 28894

Related Products

Specifications

Item Attributes Item Attributes
Mounting Type mounting
Lamp Type H7/H3 / PY21W / T4W
Light Design Bulb
Voltage 12 V
Fitting Position left
Width 225 mm
Height 150 mm
Depth 101 mm
Light Function with indicator / with low beam / with position light / with high beam
Light functions 4
Registration Type ECE / SAE
Plug DEUTSCH plug
Left-hand/Right-hand Traffic for right-hand traffic
Assembly by qualified personnel required! Assembly by qualified personnel required!
