HELLA 1EE 996 174-261 Bulb Headlight Combi 220 12V/SAE DEUTSCH plug- right
HELLA 1EE 996 174-261 Bulb Headlight Combi 220 12V/SAE DEUTSCH plug- right
SKU: 1EE-996-174-261
In stock

Product Details

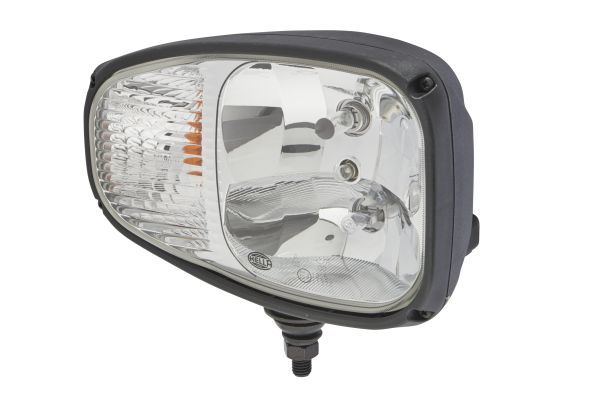

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.
- HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
- It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
- Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
- The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
- Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.

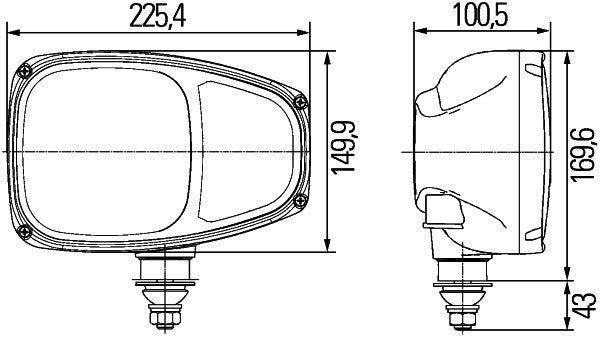

- Width: 225mm - Height: 150mm - Depth: 101mm - Lamp Type: H7/H3/T4W/PY21W
- Light functions: 4 - with low beam/with indicator/with high beam/with position light
Equivalent OEMs
AEBI 1268365-1AEBI 1268889-8
AMMANN 1565933
FARESIN ME11095A39
KOMATSU 42T-06-43150
LIEBHERR 12218799
LIEBHERR 12218799 WIRD -267
MANITOU 265415
MANITOU 265415B
MANITOU J265415
TOYOTA 0050203
WEIRO 28895
Related Products
Specifications
Item Attributes | Item Attributes |
Mounting Type | mounting |
Lamp Type | H7/H3 / T4W / PY21W |
Light Design | Bulb |
Voltage | 12 V |
Fitting Position | right |
Width | 225 mm |
Height | 150 mm |
Depth | 101 mm |
Light Function | with high beam / with indicator / with position light / with low beam |
Light functions | 4 |
Registration Type | ECE / SAE |

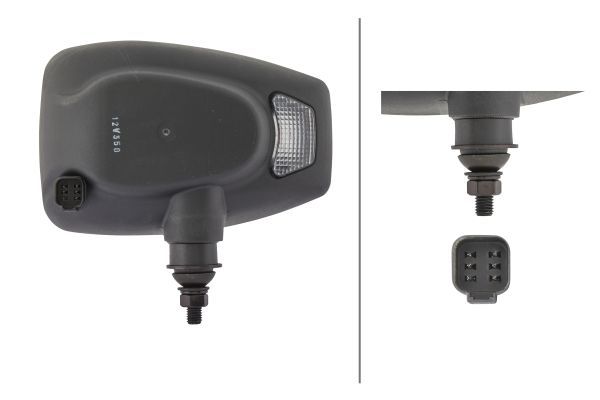

Plug | DEUTSCH plug |
Left-hand/Right-hand Traffic | for right-hand traffic |
Assembly by qualified personnel required! | Assembly by qualified personnel required! |
