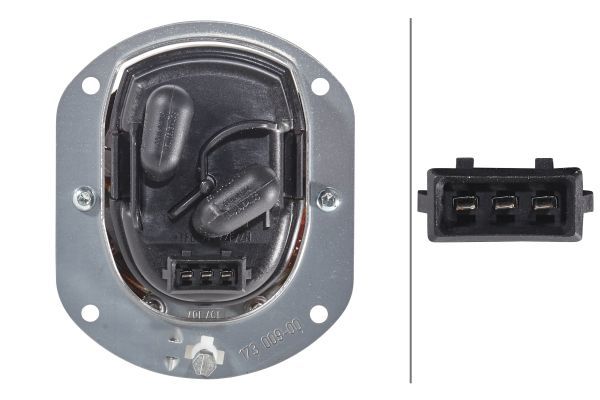

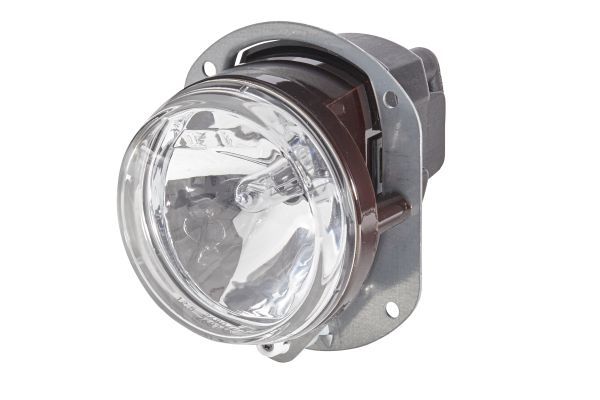

HELLA 1F0 010 293-011 Halogen-Spotlight 90mm Essential 24V round SAE Clear diffusing lens Crystal clear - left /right

HELLA 1F0 010 293-011 Halogen-Spotlight 90mm Essential 24V round SAE Clear diffusing lens Crystal clear - left /right

SKU: 1F0-010-293-011

Out of stock

  • SKU: 1F0-010-293-011
  • SKU: 1F0-010-293-011
1 2
Product Details Related Products SpecificationsReviews

Product Details

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

  • Individual front design thanks to modular construction
  • Numerous application possibilities even in more demanding environments
  • Optimised light output and homogeneous illumination with little stray light
  • Width: 96mm - Height: 90mm - Depth: 119mm - Fitting Depth: 61mm - Overall Height: 116mm - Lamp Type: H15 - with bulb - without cap
  • Light functions: 2 - with daytime running light/with high beam
  • Registration Type: SAE - Fulfils ECE norm.: R87/R112
  • Metal Housing - Housing Colour: Black - Lens Colour: Crystal clear

Equivalent OEMs

ROSENBAUER 858934, VOLVO 2 222 131 2, VOLVO 22221312

Related Products

Specifications

Item Attributes Item Attributes
Mounting Type Screw Connection
Fastening Type Four-point attachment
Light Design Halogen
Lamp Type H15
Voltage 24 V
Fitting Position left / right
Height 90 mm
Overall Height 116 mm
Width 96 mm
Depth 119 mm
Fitting Depth 61 mm
Light Function with daytime running light / with high beam
Light functions 2
Fulfils ECE norm. R112 / R87
Registration Type SAE
Reference number 12.5
Housing Colour Black
Lens Colour Crystal clear
Shape round
Housing Type Metal Housing
Diffusing Lens Type Clear diffusing lens
Supplementary Article/Info 2 without cap
Supplementary Article/Supplementary Info with bulb
Assembly by qualified personnel required! Assembly by qualified personnel required!
