HELLA 1F0 011 988-171 LED/DE-Spotlight 90mm performance L4060 24/12V round Clear diffusing lens Crystal clear - left /right

HELLA 1F0 011 988-171 LED/DE-Spotlight 90mm performance L4060 24/12V round Clear diffusing lens Crystal clear - left /right

SKU: 1F0-011-988-171

In stock

  • SKU: 1F0-011-988-171
  • SKU: 1F0-011-988-171
  • SKU: 1F0-011-988-171
1 3
Product Details Related Products SpecificationsReviews

Product Details

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • Maximum freedom of design and technology thanks to modular system.
  • More illumination and safety through innovative LED technology.
  • Striking design: Annular homogeneous daytime running light / position light or direction indicator
  • Robust die-cast aluminium housing with integrated electronics.
  • LED headlights increase safety. Thanks to the daylight-like illumination, the driver sees much better and does not tire as quickly.

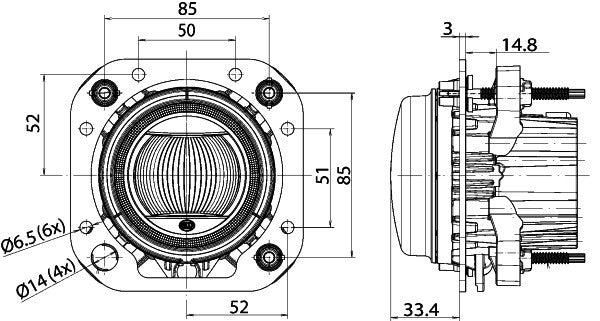

  • Width: 126mm - Height: 91mm - Depth: 91mm - Fitting Depth: 55mm - Overall Height: 126mm - Lamp Type: LED - with LED - without carrier frame
  • Light functions: 2 - with high beam (LED)/with indicator (LED)

Equivalent OEMs

ALEXANDER DENNIS DP012430, DAF 154 5059, GOLDHOFER 261875, HEULIEZ 5802226448, HEULIEZ HZ5802226448, IRIZAR 400000230, IVECO 5802 226448, IVECO E5802226448, KÄSSBOHRER 7.512.316.000.0

Related Products

Specifications

Item Attributes Item Attributes
Mounting Type Screw Connection
Fastening Type 3-point attachment
Light Design LED / DE
Lamp Type LED
Voltage 24 V / 12 V
Fitting Position right / left
Height 91 mm
Overall Height 126 mm
Width 126 mm
Depth 91 mm
Fitting Depth 55 mm
Light Function with high beam (LED) / with indicator (LED)
Light functions 2
Fulfils ECE norm. R112 / R148 / R6 / R10 / R149
Reference number 12.5
Housing Colour Black
Lens Colour Crystal clear
Shape round
Housing Type Metal Housing
Diffusing Lens Type Clear diffusing lens
Supplementary Article/Info 2 without carrier frame
Supplementary Article/Supplementary Info with LED
Assembly by qualified personnel required! Assembly by qualified personnel required!
