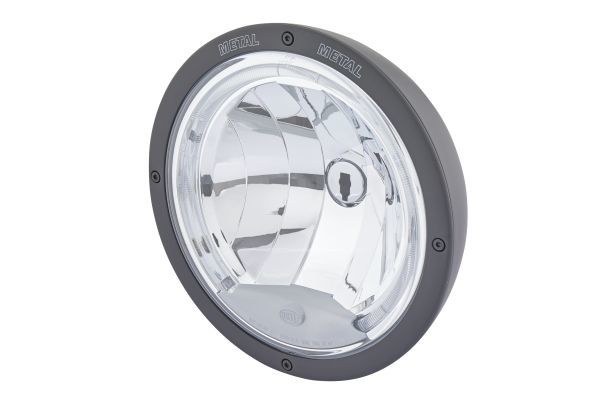

HELLA 1F8 007 560-201 Hybrid-Spotlight Luminator Metal Celis 12/24V round SAE Clear diffusing lens Crystal clear Cable: 800mm- right/left
HELLA 1F8 007 560-201 Hybrid-Spotlight Luminator Metal Celis 12/24V round SAE Clear diffusing lens Crystal clear Cable: 800mm- right/left
SKU: 1F8-007-560-201
In stock

Product Details
HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.
- H1 spotlight black with round Celis LED position light
- Due to its impressive external dimensions, it is particularly suitable for trucks, large pick-ups and off-roaders
- Housing, holder and ring made of die-cast zinc
- Width: 222mm - Height: 222mm - Depth: 130mm - Fitting Depth: 91mm - Overall Height: 232mm - Lamp Type: H1 - without bulb - without cap
- Light functions: 2 - with position light (LED)/with high beam
- Registration Type: SAE - Fulfils ECE norm.: R7/R10/R112
- Metal Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear
Equivalent OEMs
DAF 168 9949SCANIA 1 906 611
SCANIA 20 223 205
Related Products
Specifications
Item Attributes | Item Attributes |
Mounting Type | Bolted |
Fastening Type | Swivelling Mounting Bracket |
Light Design | Hybrid |
Lamp Type | H1 |
Voltage | 12 V / 24 V |
Fitting Position | right / left |
Height | 222 mm |
Overall Height | 232 mm |
Width | 222 mm |
Depth | 130 mm |
Fitting Depth | 91 mm |
Light Function | with position light (LED) / with high beam |
Light functions | 2 |
Fulfils ECE norm. | R112 / R7 / R10 |
Registration Type | SAE |
Reference number | 17.5 |
Cable | 800 mm |
Housing Colour | Black |
Lens Colour | Crystal clear |
Frame Colour | Black |
Shape | round |
Housing Type | Metal Housing |
Diffusing Lens Type | Clear diffusing lens |
Supplementary Article/Info 2 | without cap |
Supplementary Article/Supplementary Info | without bulb |
SVHC | 7439-92-1; Lead |
Assembly by qualified personnel required! | Assembly by qualified personnel required! |
