HELLA 1KL 998 570-021 DE/Halogen Headlight Modul 60 12V round SAE/ECE - left /right
HELLA 1KL 998 570-021 DE/Halogen Headlight Modul 60 12V round SAE/ECE - left /right
SKU: 1KL-998-570-021
In stock

Product Details

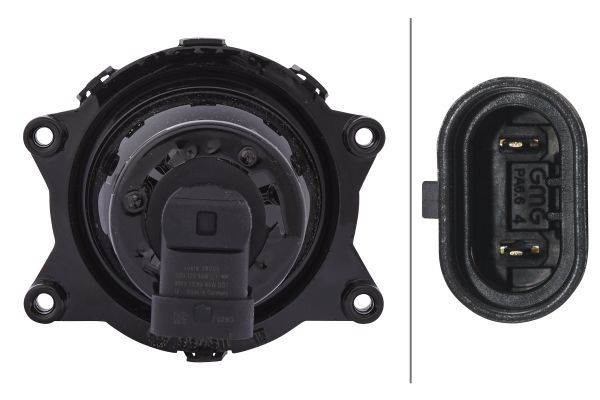

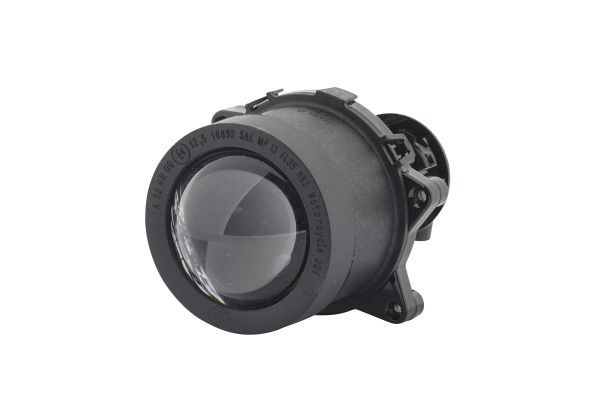

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.
- Universally usable
- Compact design
- Outstanding lighting performance

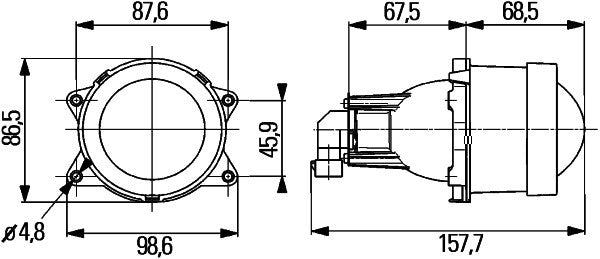

- Width: 99mm - Height: 89mm - Depth: 157mm - Lamp Type: HB3 - with bulb
- Light functions: 1 - with high beam/without position light
- Registration Type: SAE/ECE - for right-hand traffic
- Housing Colour: Black
Equivalent OEMs
AHLMANN 23119206BM TRACTORS 4.01.030
CLAAS 21521580
ISEKI 1785-650-210-0
KTM 76414001000
Fits
ClaasRelated Products
Specifications
Item Attributes | Item Attributes |
Mounting Type | Fitting |
Lamp Type | HB3 |
Light Design | Halogen / DE |
Voltage | 12 V |
Fitting Position | left / right |
Width | 99 mm |
Height | 89 mm |
Depth | 157 mm |
Light Function | without position light / with high beam |
Light functions | 1 |
Registration Type | ECE / SAE |
Reference number | 12.5 |
Shape | round |
Housing Colour | Black |
Illuminated Area | 60 mm |
Supplementary Article/Supplementary Info | with bulb |
SVHC | 7439-92-1; Lead |
Left-hand/Right-hand Traffic | for right-hand traffic |
Assembly by qualified personnel required! | Assembly by qualified personnel required! |
