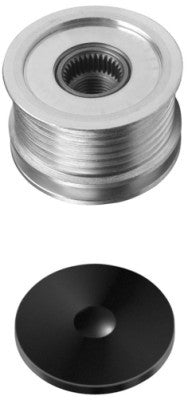

HELLA 9XU 358 038-101 Alternator Freewheel Clutch Thread Size: M16x1,5 Number of grooves: 5 with cap

Name: HELLA 9XU 358 038-101 Alternator Freewheel Clutch Thread Size: M16x1,5 Number of grooves: 5 with cap
Brand: Hella
SKU: 9XU-358-038-101
Price: 24.06 GBP
Availability: OutOfStock

SKU: 9XU-358-038-101

Out of stock

1 2

Product Details Related Products Specifications Reviews

Product Details

Hella alternator freewheel pulleys meet OE quality requirements. A patented design ensures a long service life with optimised noise behaviour for improved driving comfort

Belt Pulley Ø: 56mm - Outer diameter: 61mm
Inner Diameter: 17mm - Fitting Depth: 16mm - Distance from belt pulley to alternator: 18mm
for manufacturer: Bosch
Hella alternator freewheel pulleys meet OE quality requirements
Patented design ensures long service life with optimised noise behaviour for improved driving comfort
Maximised service life due to a robust design and double sealing
Increased torque capacity

Equivalent OEMs

AUDI 028 903 119 AP, AUDI 028 903 119 S, SEAT 028 903 119 AP, SEAT 028 903 119 S, SKODA 028 903 119 AP, SKODA 028 903 119 S, VW 028 903 119 AP, VW 028 903 119 S

Specifications

Item Attributes	Item Attributes
Distance from belt pulley to alternator	18 mm
Fitting Depth	16 mm
Outer diameter	61 mm
for manufacturer number	F-226556.XX
Width	42.4 mm
for manufacturer	Bosch
Thread Size	M16x1,5
Inner Diameter	17 mm
Belt Pulley Ø	56 mm
Rotation Direction	Clockwise rotation
Supplementary Article/Info 2	with cap
Number of grooves	5
Assembly by qualified personnel required!	Assembly by qualified personnel required!
