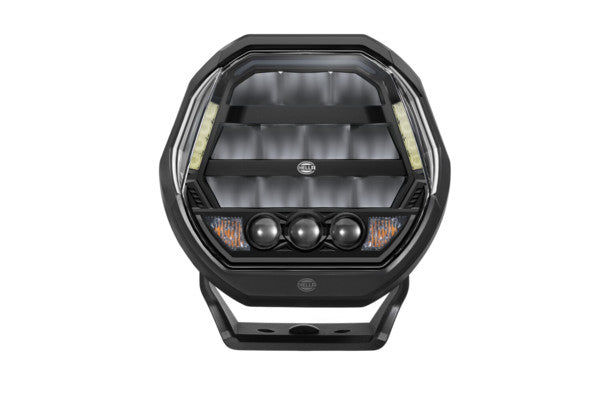

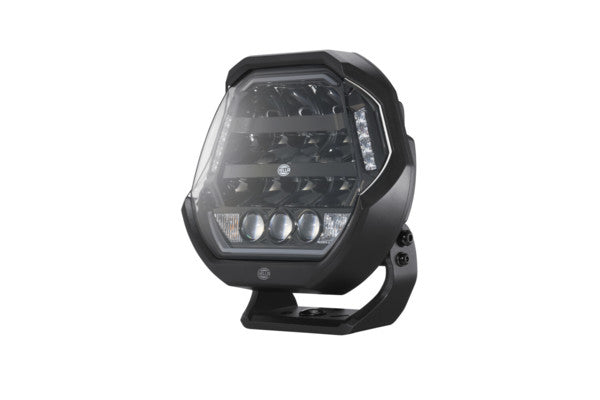

Hella Antares FF 9″ LED Spotlight – 10,200 Effective Lumens

Product Details

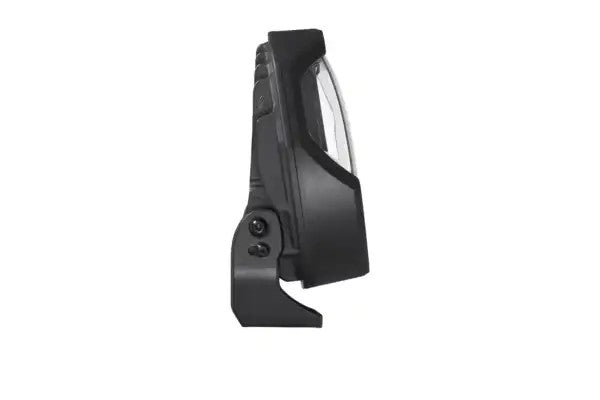

HELLA Antares FF 9″

Advanced LED High-Beam Technology with up to 10,200 effective lumens for maximum visibility.

Meet the next generation of HELLA LED auxiliary lighting. The HELLA Antares FF 9″ Series is engineered for state-of-the-art LED high-beam performance, built to last, and designed to stand out. With innovative free-form reflector technology, integrated position and daytime running lights, and warning flash function, the Antares FF is equally at home on the road (ECE-approved) or tackling demanding off-road conditions.

With its distinctive light signature and advanced free-form reflector technology, the HELLA Antares FF delivers exceptional visibility when it matters most.

High beam, high boost, white position light, daytime running light, amber position light and amber flash. Leaving home and coming home functions.

• Length: 225mm - Height: 206mm - Depth: 105mm - Overall Height: 231.5mm - Lamp Type: LED
• Light functions: 7 - with high beam (LED)/High-boost/with position light (LED)/with daytime running light (LED)/with flashing warning signal/with coming home function/with leaving home function
• fulfils ECE standard: R10/R148/R149/R65 - Prot.type (IP Code): IP69K/IP67
• Aluminium Housing - Housing Colour: black - Light colour: white/yellow (amber) - Frame Colour: black - Diffusing Lens Material: PC (Polycarbonate) - Lens Colour: Crystal clear
• Mounting Type: Bracket - Fastening Type: Screw-on
• Antares FF 9" LED auxiliary headlight with hazard warning function, featuring modern free-space reflector technology and high-boost mode for maximum high-beam performance on the road and off-road.

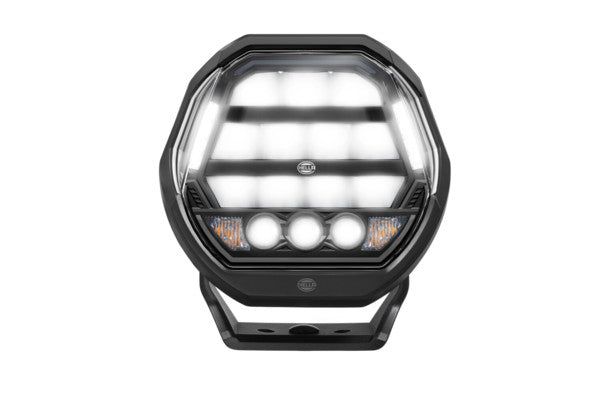

• High boost mode with up to 10,200 lm for powerful high beam illumination in accordance with ECE-R149

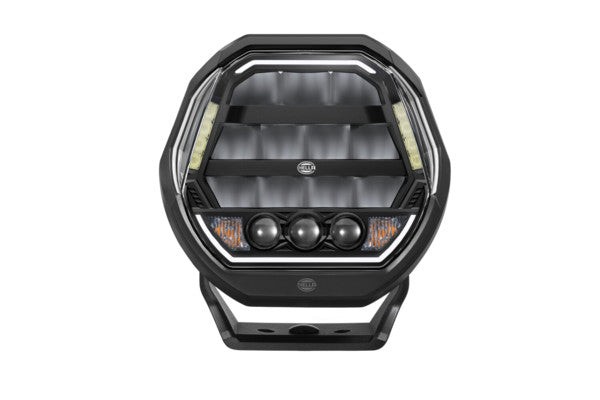

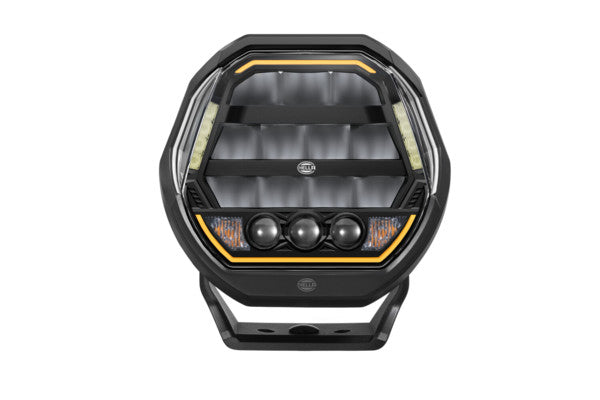

• White position light (ECE-R148) or yellow position light (off-road) with welcome/goodbye light function

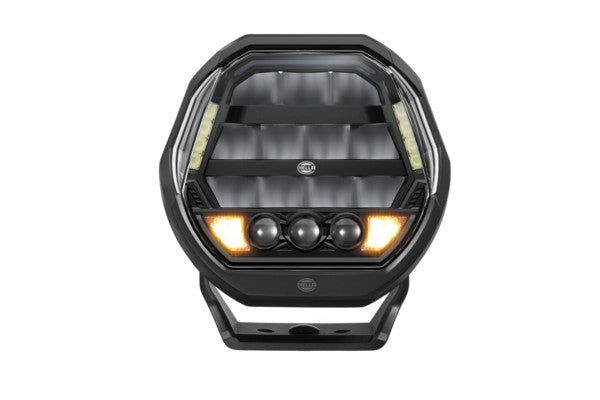

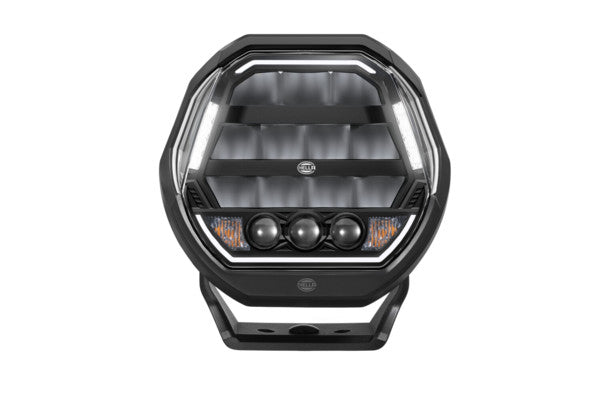

• Integrated daytime running lights (white) for improved visibility in daylight and hazard warning function with 12 flash patterns: 2 in accordance with ECE-R65 and 10 variable patterns for flexible applications
• Anodised aluminium housing, polycarbonate lens, multi-voltage 10–30 V, IP67/IP69K, vibration-resistant and EMC-tested

The Antares FF 9" with hazard warning function combines powerful high beam technology with an additional safety feature. Modern open-space reflector technology ensures a uniform, wide-ranging light pattern, while high-boost mode with up to 10,200 lumens provides maximum visibility at night. In addition to the high beam headlamp in accordance with ECE-R149, this variant offers a white position light in accordance with ECE-R148 or a yellow position light for off-road use, supplemented by a welcome and goodbye light function and integrated daytime running lights. The hazard warning flash function comprises a total of 12 flash patterns, 2 of which comply with ECE-R65 and 10 of which are variable patterns. The black anodised aluminium housing, polycarbonate lens and IP67/IP69K protection ratings ensure reliable operation under extreme operating conditions.
