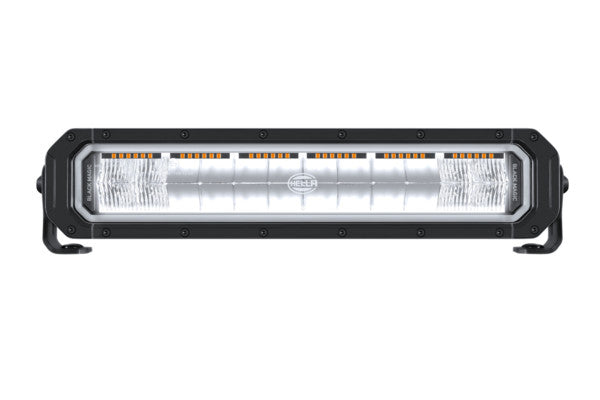

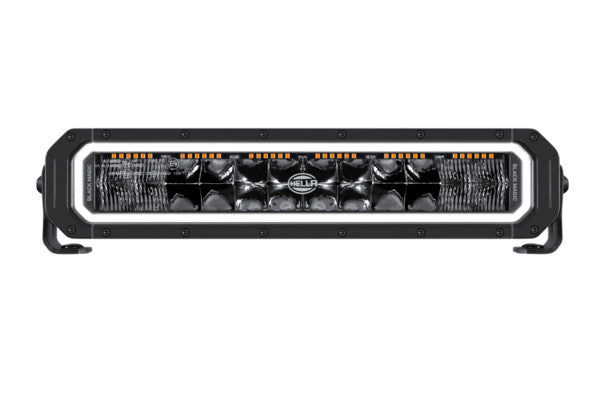

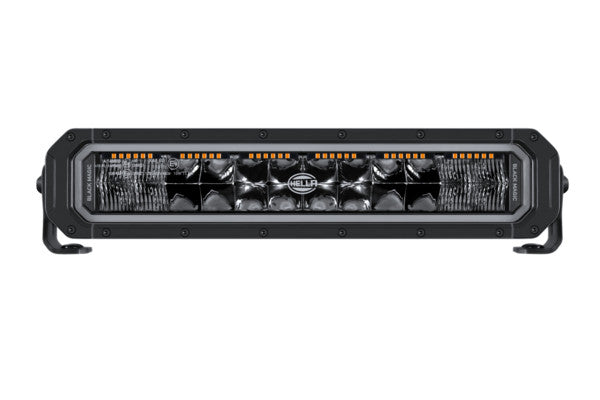

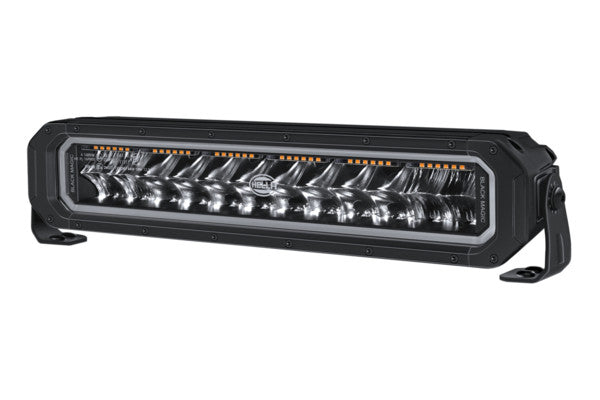

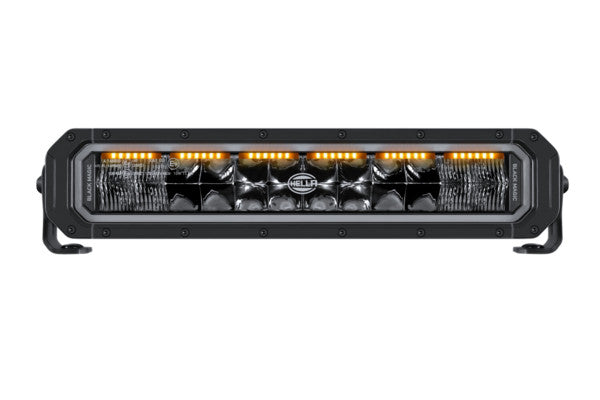

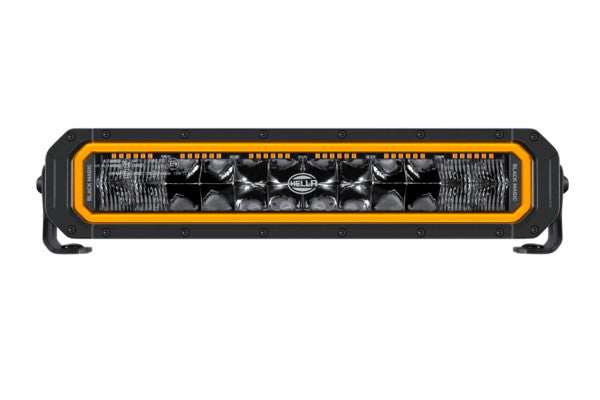

Hella Black Magic Tough Pro 15" LED Lightbar with Strobe & Position Light

Hella Black Magic Tough Pro 15" LED Lightbar with Strobe & Position Light

SKU: 1FJ-358-550-071

In stock

1 7
Product Details Related Products Reviews

Product Details

Black Magic Tough Pro delivers powerful light output in challenging conditions and has been specially developed for off-road and commercial vehicle use. The LED light bars combine powerful high beam or work lamps with smart additional functions such as position lights and an optional hazard warning light. The light bars meet specific requirements regarding the vehicle front end, installation space and application profile with a range of single and double-row variants. For customers requiring reliable visibility off-road, on trucks or in agriculture.

The solid aluminium housing featuring electrophoretic coating effectively protects the components from corrosion, stone chips and extreme environmental influences. In combination with its vibration-resistant design, high protection class and powerful LED technology, Black Magic Tough Pro offers maximum reliability – even in the toughest operating conditions.

Description:
  • Length: 383mm - Height: 82mm - Depth: 79.3mm - Overall Height: 94.3mm - Lamp Type: LED - Number of LEDs: 120
  • Light functions: 4 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost
  • Registration Type: ECE - fulfils ECE standard: R10/R65/R148/R149 - Prot.type (IP Code): IP69K/IP68
  • Housing material: Aluminium - Housing Colour: black - Light colour: white/yellow (amber) - Frame Colour: black - Anodized - Diffusing Lens Material: PC (Polycarbonate) - Lens Colour: Crystal clear
  • Mounting Type: Bolted - Fastening Type: Screw connection
  • 15'' Double Row light bar from the Black Magic Tough Pro series – high beam headlamp for road traffic (ECE R149) with powerful light output (ECE Ref. 40) and warning flash function.
  • Signature position light in white (ECE R148) for road traffic or amber for off-road use.
  • With integrated warning flash function (ECE R65) for additional safety and smart welcome/goodbye light function.
  • Robust aluminium housing with electrophoretic coating, vibration-resistant, IP68/IP69K, ECE R10, warning flash function (CISPR25, Class 3).
  • Effective light output from high beam headlamp: 3,800 lm (ECE), up to 7,000 lm in high-boost mode.
Mounting Type Bolted
Fastening Type Screw connection
Lamp Type LED
Light Design double line LED
Voltage [V] 12; 24
Rated Power [W] 186
Voltage from [V] 10
Voltage to [V] 30
Fitting Position Front
Height [mm] 82
Overall Height [mm] 94.3
Length [mm] 383
Depth [mm] 79.3
Light Function High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of light functions 4
Number of LEDs 120
Light colour white; yellow (amber)
Colour Temperature [K] 5700
Theoretical luminous flux [lm] 5376
Theoretical luminous flux in Boost mode [lm] 7800
Luminous Flux [lm] 2282
Luminous in boost mode [lm] 4982
Cable Length [mm] 1500
Lens Colour Crystal clear
Frame Colour black
Housing material Aluminium
Housing Colour black
Diffusing Lens Type Clear diffusing lens
Diffusing Lens Material PC (Polycarbonate)
fulfils EMC/CISPR standard CISPR 25 Class 3
Registration Type ECE approved
fulfils ECE standard R10; R148; R149; R65
Reference number 40
Protection Type (IP Code) IP68; IP69K
Temperature range from [°C] -30
Temperature range to [°C] 65
max. light cone range at 1 lux (main light function) [m] 415
max. light cone range at 1 lux (high boost function) [m] 592
Weight [g] 2800
Plug Type DEUTSCH plug
Surface Anodized
Assy./disassy. by qualified personnel required!
Brand HELLA
Product line Black Magic Tough Pro
Brief Information: Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
