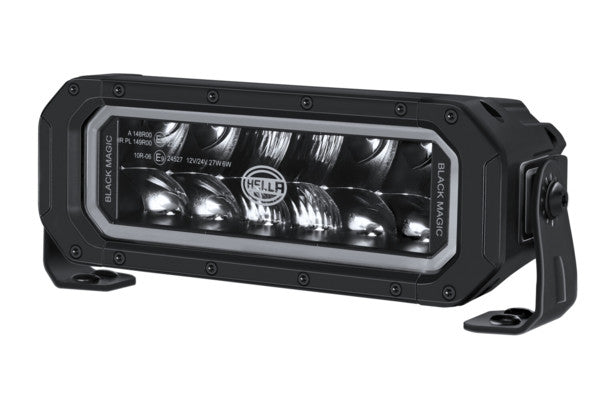

Hella Black Magic Tough Pro 9" Double Row LED Lightbar with Position Light

Hella Black Magic Tough Pro 9" Double Row LED Lightbar with Position Light

SKU: 1FE-358-550-001

In stock

  • SKU: 1FE-358-550-001
Product Details Related Products Reviews

Product Details

Black Magic Tough Pro delivers powerful light output in challenging conditions and has been specially developed for off-road and commercial vehicle use. The LED light bars combine powerful high beam or work lamps with smart additional functions such as position lights and an optional hazard warning light. The light bars meet specific requirements regarding the vehicle front end, installation space and application profile with a range of single and double-row variants. For customers requiring reliable visibility off-road, on trucks or in agriculture.

The solid aluminium housing featuring electrophoretic coating effectively protects the components from corrosion, stone chips and extreme environmental influences. In combination with its vibration-resistant design, high protection class and powerful LED technology, Black Magic Tough Pro offers maximum reliability – even in the toughest operating conditions.

Description:
  • Length: 230mm - Height: 82mm - Depth: 79.3mm - Overall Height: 94.3mm - Lamp Type: LED - Number of LEDs: 48
  • Light functions: 3 - with high beam (LED)/with position light (LED)/High-boost
  • Registration Type: ECE - fulfils ECE standard: R10/R148/R149 - Prot.type (IP Code): IP69K/IP68
  • Housing material: Aluminium - Housing Colour: black - Light colour: white/yellow (amber) - Frame Colour: black - Anodized - Diffusing Lens Material: PC (Polycarbonate) - Lens Colour: Crystal clear
  • Mounting Type: Bolted - Fastening Type: Screw connection
  • 9'' Double Row light bar from the Black Magic Tough Pro series – high beam headlamp for road traffic (ECE R149) with powerful light output and ECE Ref. 25.
  • Signature position light in white (ECE R148) for road traffic or amber for off-road use.
  • Smart welcome/goodbye light function for state-of-the-art comfort and convenience.
  • Robust aluminium housing with electrophoretic coating, vibration-resistant, IP68/IP69K, ECE R10.
  • Effective light output from high beam headlamp: 1,435 lm (ECE), up to 2,477 lm in high-boost mode.
Mounting Type Bolted
Fastening Type Screw connection
Lamp Type LED
Light Design double line LED
Voltage [V] 12; 24
Voltage from [V] 10
Voltage to [V] 30
Rated Power [W] 72
Fitting Position Front
Overall Height [mm] 94.3
Height [mm] 82
Length [mm] 230
Depth [mm] 79.3
Light Function High-boost; with high beam (LED); with position light (LED)
Number of light functions 3
Number of LEDs 48
Light colour white; yellow (amber)
Colour Temperature [K] 5700
Luminous in boost mode [lm] 2477
Theoretical luminous flux in Boost mode [lm] 4050
Luminous Flux [lm] 1435
Theoretical luminous flux [lm] 2688
Cable Length [mm] 1500
Lens Colour Crystal clear
Frame Colour black
Temperature range from [°C] -30
Temperature range to [°C] 65
Housing Colour black
Housing material Aluminium
Diffusing Lens Material PC (Polycarbonate)
Diffusing Lens Type Clear diffusing lens
Registration Type ECE approved
max. light cone range at 1 lux (main light function) [m] 328
fulfils ECE standard R10
max. light cone range at 1 lux (high boost function) [m] 410
fulfils ECE standard R10; R148; R149
Protection Type (IP Code) IP68; IP69K
Reference number 25
Weight [g] 1800
Plug Type DEUTSCH plug
Surface Anodized
Assy./disassy. by qualified personnel required!
Brand HELLA
Product line Black Magic Tough Pro
