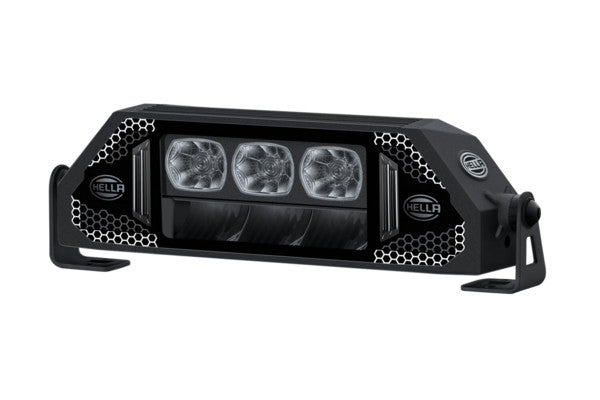

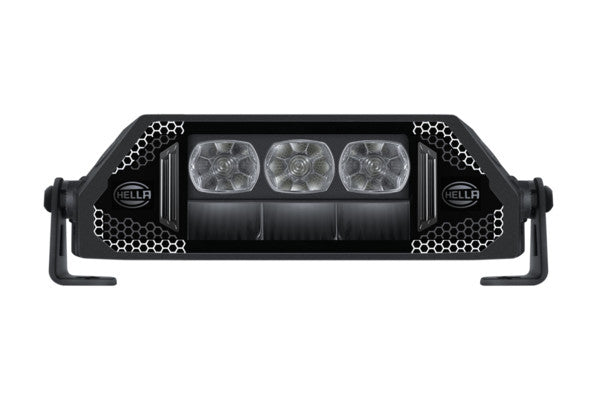

Hella DynaRay Double Row LED Lightbar 10" with Position Light

Hella DynaRay Double Row LED Lightbar 10" with Position Light

SKU: 1FF-359-100-031

In stock

  • SKU: 1FF-359-100-031
  • SKU: 1FF-359-100-031
  • SKU: 1FF-359-100-031
  • SKU: 1FF-359-100-031
1 4
Product Details Related Products Reviews

Product Details

The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.

Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.

Description:
  • Length: 265mm - Height: 78mm - Depth: 75mm - Overall Height: 95mm - Lamp Type: LED - Number of LEDs: 24
  • Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
  • Registration Type: ECE - fulfils ECE standard: R10/R148/R149 - Prot.type (IP Code): IP69K/IP67
  • Housing material: Aluminium - Housing Colour: black - Light colour: white/yellow (amber) - Frame Colour: black - Anodized - Diffusing Lens Material: PC (Polycarbonate) - Lens Colour: Crystal clear
  • Mounting Type: Bolted - Fastening Type: Screw connection
  • HELLA DynaRay 10'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).

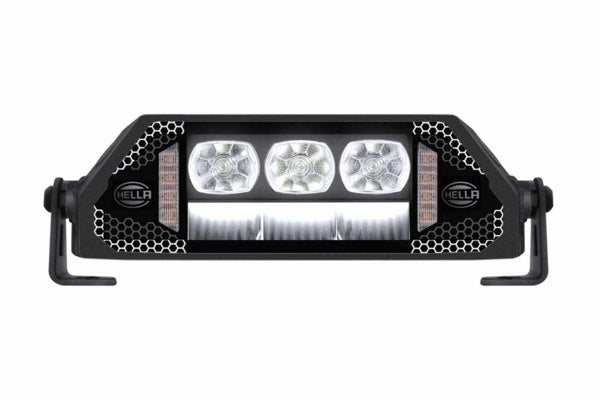

  • Integrated light functions: Spot, high-boost mode, position light (white and amber).
  • High beam: ECE Ref. 30. Powerful light output of 1,100 lumens (ECE) and up to 2,100 lumens in high-boost mode (off-road only).
  • With innovative welcome/goodbye light function.
  • Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type Bolted
Fastening Type Screw connection
Lamp Type LED
Light Design double line LED
Number of LEDs 24
Voltage [V] 12; 24
Rated Power [W] 45,6
Voltage from [V] 10
Voltage to [V] 30
Fitting Position Front
Height [mm] 78
Length [mm] 265
Depth [mm] 75
Overall Height [mm] 95
Light Function High-boost; with high beam (LED); with position light (LED)
Cable Length [mm] 1500
Number of light functions 2
Light colour white; yellow (amber)
Colour Temperature [K] 6800
Plug Type DEUTSCH plug
Frame Colour black
Lens Colour Crystal clear
Housing material Aluminium
Housing Colour black
Diffusing Lens Type Clear diffusing lens
Diffusing Lens Material PC (Polycarbonate)
Protection Type (IP Code) IP67; IP69K
Registration Type ECE approved
fulfils ECE standard R10; R148; R149
fulfils EMC/CISPR standard CISPR 25 Class 5
Temperature range from [°C] -40
Temperature range to [°C] 65
Reference number 30
Theoretical luminous flux [lm] 3300
Theoretical luminous flux in Boost mode [lm] 3300
Luminous Flux [lm] 1100
Luminous in boost mode [lm] 2100
max. light cone range at 1 lux (main light function) [m] 352
max. light cone range at 1 lux (high boost function) [m] 463
Weight [g] 1474
Surface Anodized
Assy./disassy. by qualified personnel required!
Brand HELLA
Product line DynaRay
