The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.
Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.
Description:
Length: 950mm - Height: 78mm - Depth: 75mm - Overall Height: 95mm - Lamp Type: LED - Number of LEDs: 134
Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost
HELLA DynaRay 37.5'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.
High beam headlamp: ECE Ref. 45. Powerful light output of 2,136 lumens (ECE) and up to 11,872 lumens in high-boost mode (off-road only).
With warning flash function (ECE R65) and welcome/goodbye light.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage [V]
12; 24
Rated Power [W]
321,1
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
78
Length [mm]
950
Depth [mm]
75
Overall Height [mm]
95
Light Function
High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of LEDs
134
Number of light functions
3
Light colour
white; yellow (amber)
Cable Length [mm]
1500
Colour Temperature [K]
6800
Luminous Flux [lm]
2136
Theoretical luminous flux [lm]
22000
Luminous in boost mode [lm]
11872
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Housing material
Aluminium
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
max. light cone range at 1 lux (main light function) [m]
430
fulfils ECE standard
R10; R148; R149; R65
fulfils EMC/CISPR standard
CISPR 25 Class 3
Temperature range from [°C]
-40
Temperature range to [°C]
85
Reference number
45
Surface
Anodized
Assy./disassy. by qualified personnel required!
Brand
HELLA
Product line
DynaRay
Brief Information:Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.
Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.
Description:
Length: 547mm - Height: 78mm - Depth: 75mm - Overall Height: 95mm - Lamp Type: LED - Number of LEDs: 74
Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost
HELLA DynaRay 21.5'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.
High beam headlamp: ECE Ref. 45. Powerful light output of 2,000 lumens (ECE) and up to 5,700 lumens in high-boost mode (off-road only).
With warning flash function (ECE R65) and welcome/goodbye light.
Approved in accordance with ECE R10, R148 (white position light), amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage [V]
12; 24
Rated Power [W]
173,3
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
78
Length [mm]
547
Depth [mm]
75
Overall Height [mm]
95
Light Function
High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of light functions
3
Number of LEDs
74
Light colour
white; yellow (amber)
Cable Length [mm]
1500
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149; R65
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
45
fulfils EMC/CISPR standard
CISPR 25 Class 5
Theoretical luminous flux [lm]
11000
Theoretical luminous flux in Boost mode [lm]
11000
Luminous Flux [lm]
2000
Luminous in boost mode [lm]
5700
max. light cone range at 1 lux (main light function) [m]
442
max. light cone range at 1 lux (high boost function) [m]
746
Weight [g]
2810
Surface
Anodized
Assy./disassy. by qualified personnel required!
Brand
HELLA
Product line
DynaRay
Brief Information:Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.
Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.
Description:
Length: 547mm - Height: 78mm - Depth: 75mm - Overall Height: 95mm - Lamp Type: LED - Number of LEDs: 66
Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
HELLA DynaRay 21.5'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber).
High beam headlamp: ECE Ref. 45. Powerful light output of 2,000 lumens (ECE) and up to 5,700 lumens in high-boost mode (off-road only).
With innovative welcome/goodbye light function.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage [V]
12; 24
Rated Power [W]
149,3
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Length [mm]
547
Depth [mm]
75
Height [mm]
78
Overall Height [mm]
95
Light Function
High-boost; with high beam (LED); with position light (LED)
Number of light functions
2
Number of LEDs
66
Cable Length [mm]
1500
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
45
Theoretical luminous flux [lm]
11000
Theoretical luminous flux in Boost mode [lm]
11000
Luminous Flux [lm]
2000
Luminous in boost mode [lm]
5700
max. light cone range at 1 lux (main light function) [m]
442
max. light cone range at 1 lux (high boost function) [m]
The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.
Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.
Description:
Length: 386mm - Height: 78mm - Depth: 75mm - Overall Height: 90mm - Lamp Type: LED - Number of LEDs: 50
Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost
HELLA DynaRay 15'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.
High beam: ECE Ref. 45. Powerful light output of 2,110 lumens (ECE) and up to 3,850 lumens in high-boost mode (off-road only).
With warning flash function (ECE R65) and welcome/goodbye light.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage [V]
12; 24
Rated Power [W]
114
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
78
Length [mm]
386
Depth [mm]
75
Overall Height [mm]
90
Light Function
High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of light functions
3
Number of LEDs
50
Cable Length [mm]
1500
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149; R65
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
45
Theoretical luminous flux [lm]
6600
Theoretical luminous flux in Boost mode [lm]
6600
Luminous Flux [lm]
2110
Luminous in boost mode [lm]
3850
max. light cone range at 1 lux (main light function) [m]
430
max. light cone range at 1 lux (high boost function) [m]
582
Weight [g]
2045
Surface
Anodized
Assy./disassy. by qualified personnel required!
Brand
HELLA
Product line
DynaRay
Brief Information:Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.

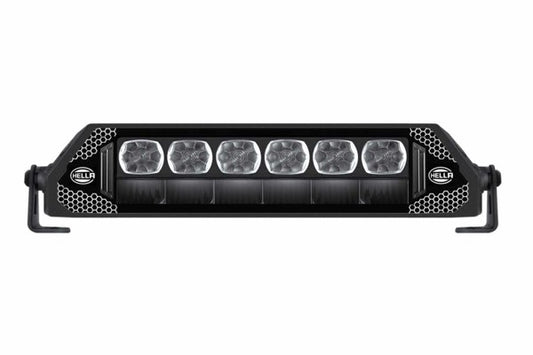

The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.
Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.
Description:
Length: 386mm - Height: 78mm - Depth: 75mm - Overall Height: 90mm - Lamp Type: LED - Number of LEDs: 42
Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
HELLA DynaRay 15'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber).
High beam: ECE Ref. 45. Powerful light output of 2,110 lumens (ECE) and up to 3,850 lumens in high-boost mode (off-road only).
With innovative welcome/goodbye light function.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage [V]
12; 24
Rated Power [W]
95
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
78
Length [mm]
386
Depth [mm]
75
Overall Height [mm]
90
Light Function
High-boost; with high beam (LED); with position light (LED)
Number of light functions
2
Number of LEDs
42
Light colour
white; yellow (amber)
Cable Length [mm]
1500
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
45
Theoretical luminous flux [lm]
6600
Theoretical luminous flux in Boost mode [lm]
6600
Luminous Flux [lm]
2110
Luminous in boost mode [lm]
3850
max. light cone range at 1 lux (main light function) [m]
430
max. light cone range at 1 lux (high boost function) [m]

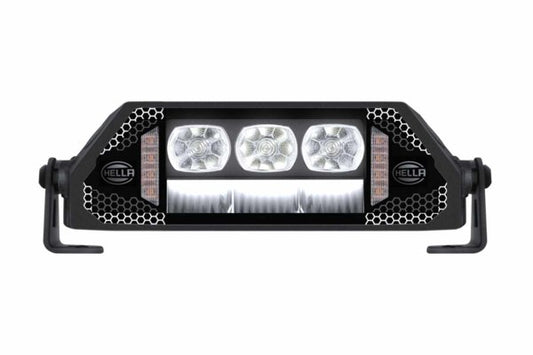

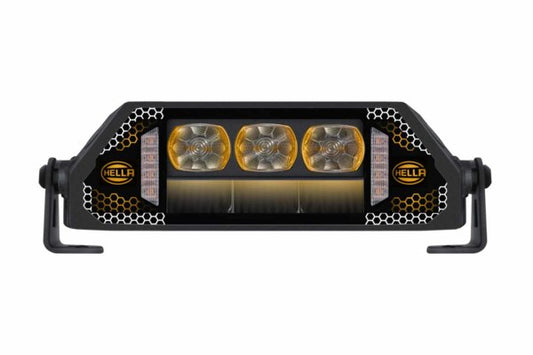

The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.
Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.
Description:
Length: 265mm - Height: 78mm - Depth: 75mm - Overall Height: 95mm - Lamp Type: LED - Number of LEDs: 32
Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost
HELLA DynaRay 10'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.
High beam: ECE Ref. 30. Powerful light output of 1,100 lumens (ECE) and up to 2,100 lumens in high-boost mode (off-road only).
With warning flash function (ECE R65) and welcome/goodbye light.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage [V]
12; 24
Rated Power [W]
69,6
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
78
Length [mm]
265
Depth [mm]
75
Overall Height [mm]
95
Cable Length [mm]
1500
Light Function
High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of LEDs
32
Number of light functions
3
Lens Colour
Crystal clear
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149; R65
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from [°C]
-40
Temperature range to [°C]
65
Theoretical luminous flux [lm]
3300
Theoretical luminous flux in Boost mode [lm]
3300
Reference number
30
Luminous Flux [lm]
1100
Luminous in boost mode [lm]
2100
max. light cone range at 1 lux (main light function) [m]
352
max. light cone range at 1 lux (high boost function) [m]
463
Weight [g]
1474
Surface
Anodized
Assy./disassy. by qualified personnel required!
Brand
HELLA
Product line
DynaRay
Brief Information:Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.
Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.
Description:
Length: 265mm - Height: 78mm - Depth: 75mm - Overall Height: 95mm - Lamp Type: LED - Number of LEDs: 24
Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
HELLA DynaRay 10'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber).
High beam: ECE Ref. 30. Powerful light output of 1,100 lumens (ECE) and up to 2,100 lumens in high-boost mode (off-road only).
With innovative welcome/goodbye light function.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
double line LED
Number of LEDs
24
Voltage [V]
12; 24
Rated Power [W]
45,6
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
78
Length [mm]
265
Depth [mm]
75
Overall Height [mm]
95
Light Function
High-boost; with high beam (LED); with position light (LED)
Cable Length [mm]
1500
Number of light functions
2
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
30
Theoretical luminous flux [lm]
3300
Theoretical luminous flux in Boost mode [lm]
3300
Luminous Flux [lm]
1100
Luminous in boost mode [lm]
2100
max. light cone range at 1 lux (main light function) [m]
352
max. light cone range at 1 lux (high boost function) [m]
The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.
Sturdy, versatile and stylish – the perfect addition to your range.
Description:
Length: 930mm - Height: 63mm - Depth: 61.5mm - Overall Height: 86mm - Lamp Type: LED - Number of LEDs: 104
Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost

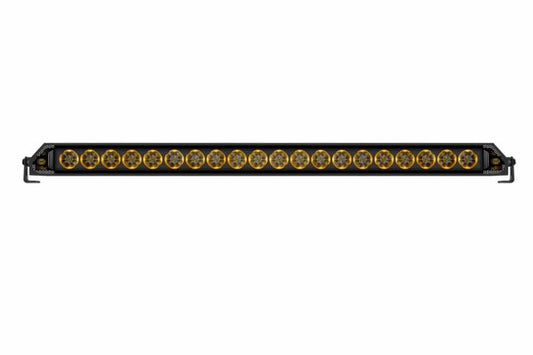

HELLA DynaRay 37'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber).
High beam headlamp: ECE Ref. 45. Powerful light output of 3,158 lumens (ECE) and up to 11,346 lumens in high-boost mode (off-road only).
With innovative welcome/goodbye light function.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
single line LED
Voltage [V]
12; 24
Rated Power [W]
216,8
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
63
Length [mm]
930
Depth [mm]
61.5
Overall Height [mm]
86
Light Function
High-boost; with high beam (LED); with position light (LED)
Number of LEDs
104
Number of light functions
2
Cable Length [mm]
1500
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Theoretical luminous flux [lm]
16000
Luminous in boost mode [lm]
5880
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Housing material
Aluminium
Registration Type
ECE approved
Luminous Flux [lm]
3158
fulfils ECE standard
R10; R148; R149
Temperature range from [°C]
-40
Temperature range to [°C]
85
Reference number
45
max. light cone range at 1 lux (main light function) [m]
The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.
Sturdy, versatile and stylish – the perfect addition to your range.
Description:
Length: 527mm - Height: 63mm - Depth: 61.5mm - Overall Height: 84mm - Lamp Type: LED - Number of LEDs: 60
Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost

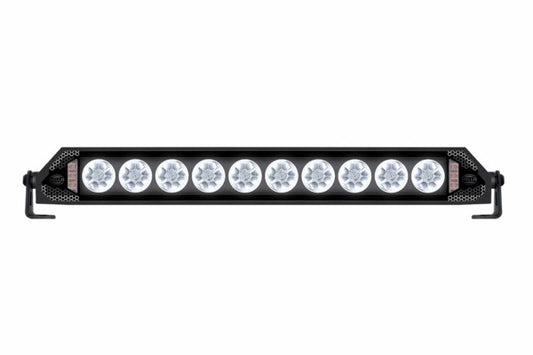

HELLA DynaRay 21'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.
High beam headlamp: ECE Ref. 45. Powerful light output of 3,100 lumens (ECE) and up to 5,880 lumens in high-boost mode (off-road only).
With warning flash function (ECE R65) and welcome/goodbye light.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
single line LED
Voltage [V]
12; 24
Rated Power [W]
126,8
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
63
Length [mm]
527
Depth [mm]
61.5
Overall Height [mm]
84
Light Function
High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of light functions
3
Number of LEDs
60
Cable Length [mm]
1500
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149; R65
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
45
Theoretical luminous flux [lm]
8000
Theoretical luminous flux in Boost mode [lm]
8000
Luminous Flux [lm]
3100
Luminous in boost mode [lm]
5880
max. light cone range at 1 lux (main light function) [m]
430
max. light cone range at 1 lux (high boost function) [m]
586
Weight [g]
2160
Surface
Anodized
Assy./disassy. by qualified personnel required!
Brand
HELLA
Product line
DynaRay
Brief Information:Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.
Sturdy, versatile and stylish – the perfect addition to your range.
Description:
Length: 527mm - Height: 63mm - Depth: 61.5mm - Overall Height: 84mm - Lamp Type: LED - Number of LEDs: 54
Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
HELLA DynaRay 21'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber).
High beam headlamp: ECE Ref. 45. Powerful light output of 3,100 lumens (ECE) and up to 5,880 lumens in high-boost mode (off-road only).
With innovative welcome/goodbye light function.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
single line LED
Voltage [V]
12; 24
Rated Power [W]
108,8
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
63
Length [mm]
527
Depth [mm]
61.5
Overall Height [mm]
84
Light Function
High-boost; with high beam (LED); with position light (LED)
Number of LEDs
54
Number of light functions
2
Light colour
white; yellow (amber)
Cable Length [mm]
1500
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
45
Theoretical luminous flux [lm]
8000
Theoretical luminous flux in Boost mode [lm]
8000
Luminous Flux [lm]
3100
Luminous in boost mode [lm]
5880
max. light cone range at 1 lux (main light function) [m]
430
max. light cone range at 1 lux (high boost function) [m]
The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.
Sturdy, versatile and stylish – the perfect addition to your range.
Description:
Length: 366mm - Height: 63mm - Depth: 61.5mm - Overall Height: 81mm - Lamp Type: LED - Number of LEDs: 40
Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost

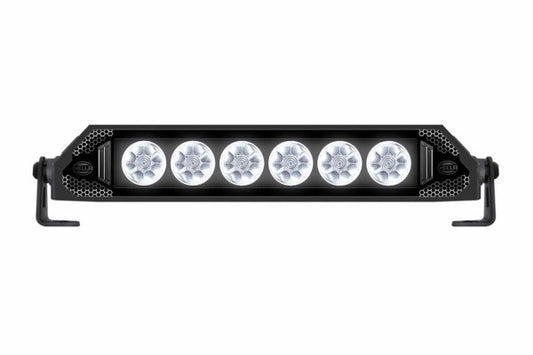

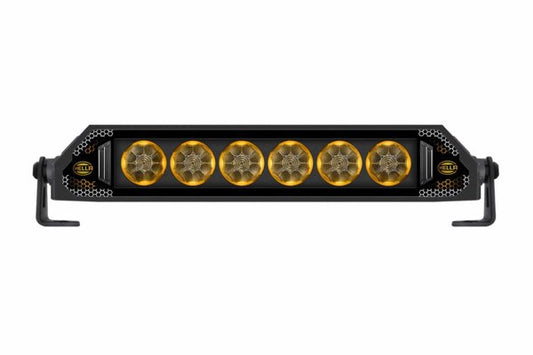

HELLA DynaRay 14'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.
High beam: ECE Ref. 37.5. Powerful light output of 2,400 lumens (ECE) and up to 3,500 lumens in high-boost mode (off-road only).
With warning flash function (ECE R65) and welcome/goodbye light.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
single line LED
Voltage [V]
12; 24
Rated Power [W]
83,6
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
63
Length [mm]
366
Depth [mm]
61.5
Overall Height [mm]
81
Light Function
High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of light functions
3
Number of LEDs
40
Cable Length [mm]
1500
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149; R65
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
37.5
Theoretical luminous flux [lm]
4800
Theoretical luminous flux in Boost mode [lm]
3500
Luminous Flux [lm]
2400
Luminous in boost mode [lm]
3500
max. light cone range at 1 lux (main light function) [m]
383
max. light cone range at 1 lux (high boost function) [m]
453
Weight [g]
1590
Surface
Anodized
Assy./disassy. by qualified personnel required!
Brand
HELLA
Product line
DynaRay
Brief Information:Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.
Sturdy, versatile and stylish – the perfect addition to your range.
Description:
Length: 366mm - Height: 63mm - Depth: 61.5mm - Overall Height: 86mm - Lamp Type: LED - Number of LEDs: 34
Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
HELLA DynaRay 14'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Anodised aluminium housing (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber).
High beam: ECE Ref. 37.5. Powerful light output of 2,400 lumens (ECE) and up to 3,500 lumens in high-boost mode (off-road only).
With innovative welcome/goodbye light function.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
single line LED
Number of LEDs
34
Voltage [V]
12; 24
Rated Power [W]
65,6
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
63
Length [mm]
366
Depth [mm]
61.5
Overall Height [mm]
86
Light Function
High-boost; with high beam (LED); with position light (LED)
Number of light functions
2
Light colour
white; yellow (amber)
Cable Length [mm]
1500
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Lens Colour
Crystal clear
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
37.5
Theoretical luminous flux [lm]
4800
Theoretical luminous flux in Boost mode [lm]
4800
Luminous Flux [lm]
2400
Luminous in boost mode [lm]
3500
max. light cone range at 1 lux (main light function) [m]
383
max. light cone range at 1 lux (high boost function) [m]
The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.
Sturdy, versatile and stylish – the perfect addition to your range.

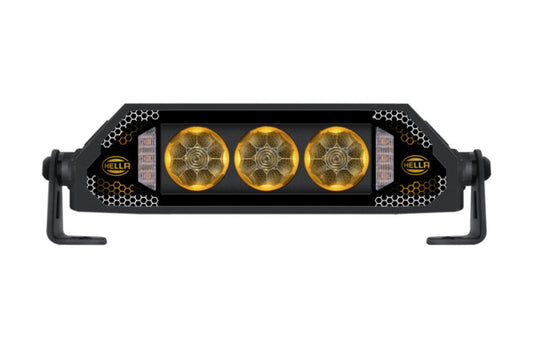

Description:
Length: 245mm - Height: 63mm - Depth: 61.5mm - Overall Height: 86mm - Lamp Type: LED - Number of LEDs: 25
Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost
HELLA DynaRay 9.6'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.
High beam: ECE Ref. 17.5. Powerful light output of 1,000 lumens (ECE) and up to 1,600 lumens in high-boost mode (off-road only).
With warning flash function (ECE R65) and welcome/goodbye light.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
single line LED
Voltage [V]
12; 24
Rated Power [W]
51,5
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
63
Length [mm]
245
Depth [mm]
61.5
Overall Height [mm]
86
Light Function
High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of light functions
3
Number of LEDs
25
Cable Length [mm]
1500
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Lens Colour
Crystal clear
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149; R65
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
17.5
Luminous Flux [lm]
1000
Luminous in boost mode [lm]
1600
Theoretical luminous flux [lm]
2400
Theoretical luminous flux in Boost mode [lm]
2400
max. light cone range at 1 lux (main light function) [m]
270
max. light cone range at 1 lux (high boost function) [m]
325
Weight [g]
1170
Surface
Anodized
Assy./disassy. by qualified personnel required!
Brand
HELLA
Product line
DynaRay
Brief Information:Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.
Sturdy, versatile and stylish – the perfect addition to your range.

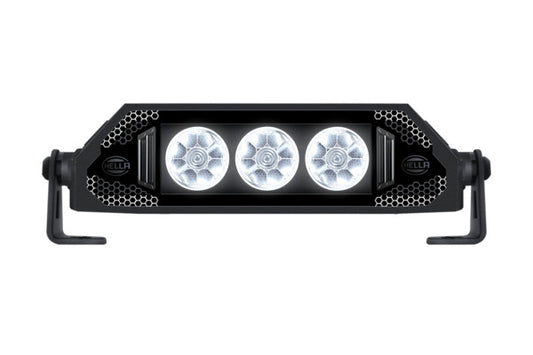

Description:
Length: 245mm - Height: 63mm - Depth: 61.5mm - Overall Height: 86mm - Lamp Type: LED - Number of LEDs: 19
Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
HELLA DynaRay 9.6'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
Integrated light functions: Spot, high-boost mode, position light (white and amber).
High beam: ECE Ref. 17.5. Powerful light output of 1,000 lumens (ECE) and up to 1,600 lumens in high-boost mode (off-road only).
With innovative welcome/goodbye light function.
Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Light Design
single line LED
Voltage [V]
12; 24
Rated Power [W]
33,5
Voltage from [V]
10
Voltage to [V]
30
Fitting Position
Front
Height [mm]
63
Length [mm]
245
Depth [mm]
61.5
Overall Height [mm]
86
Light Function
High-boost; with high beam (LED); with position light (LED)
Number of light functions
2
Number of LEDs
19
Cable Length [mm]
1500
Lens Colour
Crystal clear
Light colour
white; yellow (amber)
Colour Temperature [K]
6800
Plug Type
DEUTSCH plug
Frame Colour
black
Housing material
Aluminium
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Protection Type (IP Code)
IP67; IP69K
Registration Type
ECE approved
fulfils ECE standard
R10; R148; R149
Temperature range from [°C]
-40
Temperature range to [°C]
65
Reference number
17.5
Luminous Flux [lm]
1000
Luminous in boost mode [lm]
1600
Theoretical luminous flux [lm]
2400
Theoretical luminous flux in Boost mode [lm]
2400
max. light cone range at 1 lux (main light function) [m]
270
max. light cone range at 1 lux (high boost function) [m]
325
Weight [g]
1170
Surface
Anodized
Assy./disassy. by qualified personnel required!
Brand
HELLA
Product line
DynaRay
Regular price
£154.70
ex. VAT
Regular priceSale price
£154.70
ex. VAT
Unit price/ per
In stock Click & Collect Same Day Delivery
Choosing a selection results in a full page refresh.
Sold out
