LAZER LAMPS Sentinel 9''- 'Slim' Mount

LAZER LAMPS Sentinel 9''- 'Slim' Mount

SKU: 0S9-PL-SM

In stock

  • SKU: 0S9-PL-SM
  • SKU: 0S9-PL-SM
  • SKU: 0S9-PL-SM
  • SKU: 0S9-PL-SM
  • SKU: 0S9-PL-SM
  • SKU: 0S9-PL-SM
1 6
Product Details Related Products Reviews

Product Details

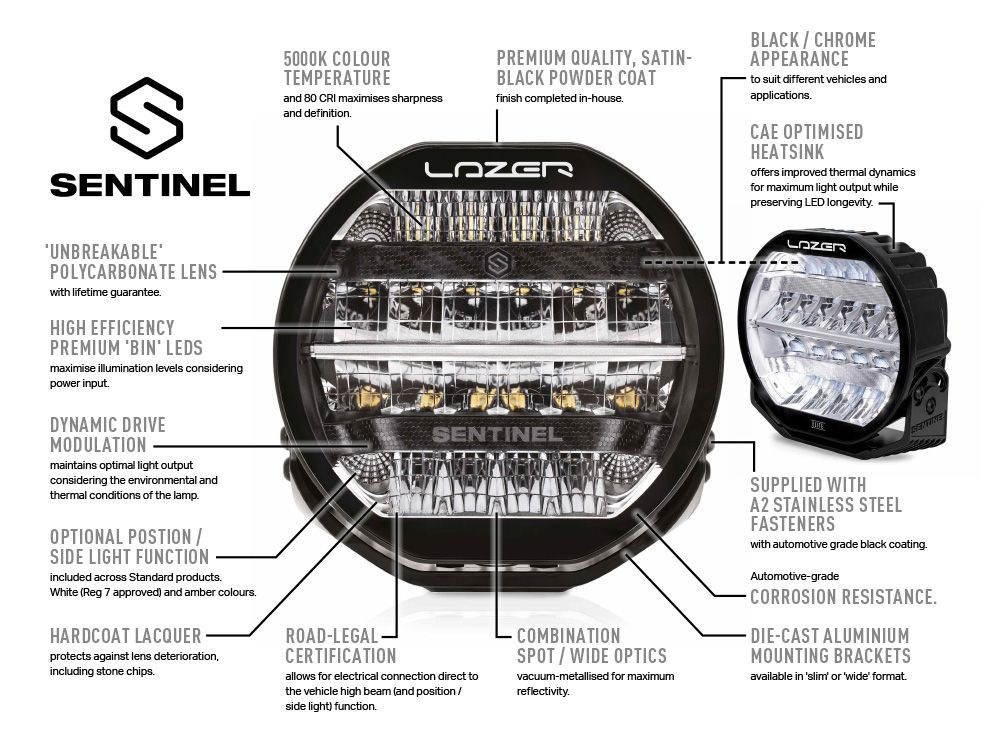

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. Available in Standard or Elite grades, the former incorporates 20 high power LEDs and comes available with either a black or chrome finish inside the lamp. The Elite product by comparison is only available with the black internal appearance, but with a combination of 32 high power LEDs, represents the very best lighting performance as expected from a product bearing the ‘Elite’ tag.

  • Combination of 20 premium ‘bin’ LEDs
  • Stealth' appearance from black internal bezel, plus black circuit boards
  • Integrated white and amber position light function
  • Ultra-reflective vacuum-metallised spot and wide optics
  • UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)
  • 5000K LED colour temperature and 80CRI maximises sharpness and definition
  • Contemporary lamp design
  • Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
  • Electronic thermal management system optimises light output to preserve longevity of the LEDs
  • Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
  • CAE optimised heatsink offers improved thermal dynamics
  • Over voltage protected
  • Reverse polarity protected
  • ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
  • A2 stainless steel fasteners with automotive grade black coating
  • UNECE approved Reg 10
  • IP68 watertight – 1.5m submersion (30mins)
  • 5-year warranty
  • Supplied with pre-wired male/female 3-pin Superseal connectors
  • Designed & manufactured in UK
Variant Weight 2500
Variant Weight Unit g
Total Luminous Flux 9520
Colour Temperature 5000K
Power Consumption (Watt) 87
Current Draw (at 14.4V) (Amper) 6

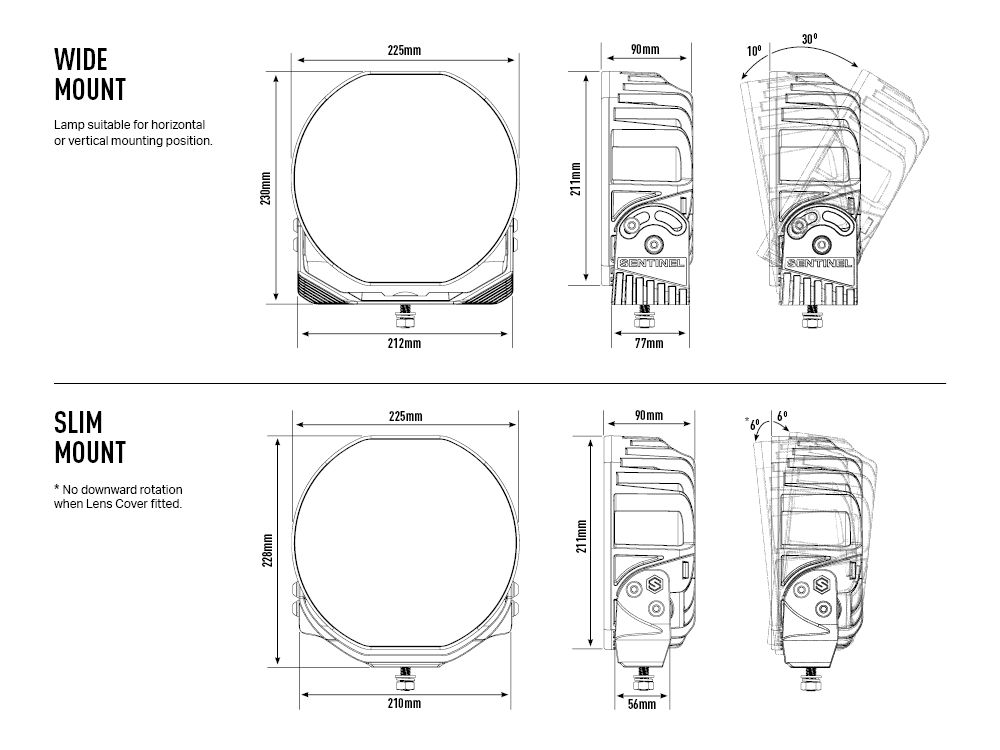

Width (mm) 225
Depth (mm) 90
Height (mm) 230

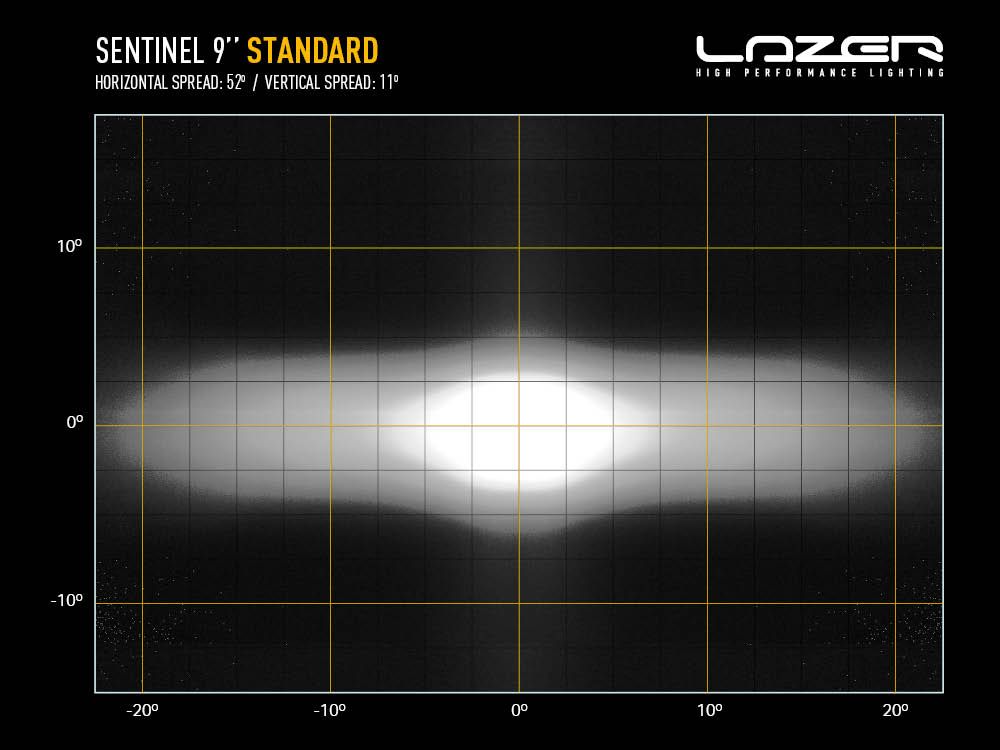

Hor. Beam Angle (degrees) 52

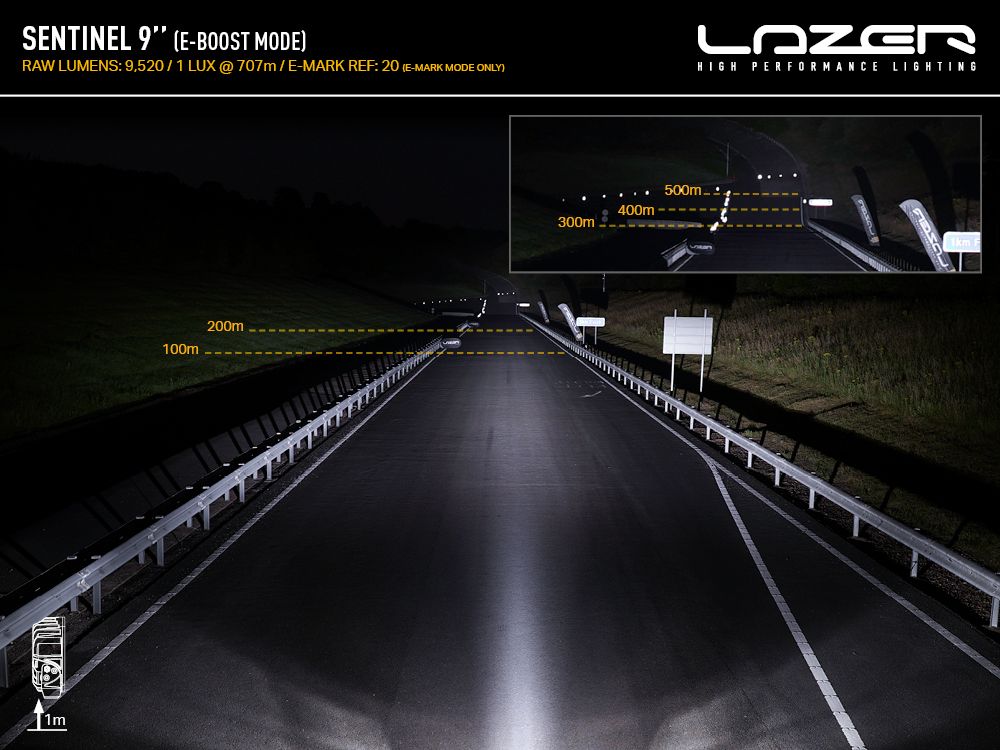

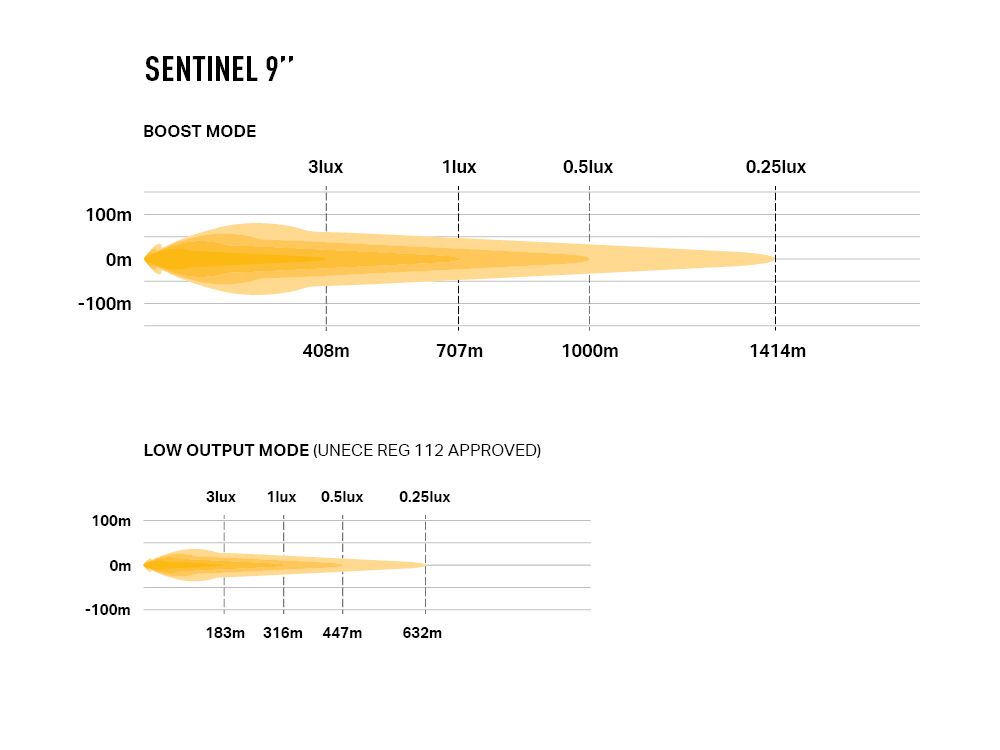

0.25 lx Line (meters) 1414
0.5 lx Line (meters) 1000
1 lx Line (meters) 707
3 lx Line (meters) 408
