Hella DynaRay Double Row LED Lightbar 21.5" with Strobe & Position Light

Hella DynaRay Double Row LED Lightbar 21.5" with Strobe & Position Light

SKU: 1FF-359-100-231

In stock

  • SKU: 1FF-359-100-231
  • SKU: 1FF-359-100-231
  • SKU: 1FF-359-100-231
  • SKU: 1FF-359-100-231
  • SKU: 1FF-359-100-231
  • SKU: 1FF-359-100-231
1 6
Product Details Related Products Reviews

Product Details

The new Dynaray Double Row demonstrates what modern off-road lighting is capable of: custom-fit covers in various lengths for maximum flexibility, multiple powerful lighting modes for every riding situation – and the intelligent Heated Lens, which ensures a clear view even in ice, snow and mud.

Perfect for anyone who demands high-performance lighting, stylish design and reliable visibility in any situation.

Description:

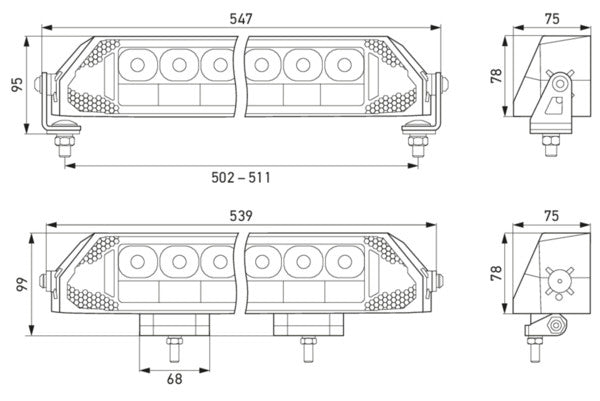

  • Length: 547mm - Height: 78mm - Depth: 75mm - Overall Height: 95mm - Lamp Type: LED - Number of LEDs: 74
  • Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost
  • Registration Type: ECE - fulfils ECE standard: R10/R148/R149/R65 - Prot.type (IP Code): IP69K/IP67
  • Housing material: Aluminium - Housing Colour: black - Light colour: white/yellow (amber) - Frame Colour: black - Anodized - Diffusing Lens Material: PC (Polycarbonate) - Lens Colour: Crystal clear
  • Mounting Type: Bolted - Fastening Type: Screw connection
  • HELLA DynaRay 21.5'' Double Row light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
  • Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.
  • High beam headlamp: ECE Ref. 45. Powerful light output of 2,000 lumens (ECE) and up to 5,700 lumens in high-boost mode (off-road only).
  • With warning flash function (ECE R65) and welcome/goodbye light.
  • Approved in accordance with ECE R10, R148 (white position light), amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type Bolted
Fastening Type Screw connection
Lamp Type LED
Light Design double line LED
Voltage [V] 12; 24
Rated Power [W] 173,3
Voltage from [V] 10
Voltage to [V] 30
Fitting Position Front
Height [mm] 78
Length [mm] 547
Depth [mm] 75
Overall Height [mm] 95
Light Function High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of light functions 3
Number of LEDs 74
Light colour white; yellow (amber)
Cable Length [mm] 1500
Colour Temperature [K] 6800
Plug Type DEUTSCH plug
Frame Colour black
Lens Colour Crystal clear
Housing material Aluminium
Housing Colour black
Diffusing Lens Type Clear diffusing lens
Diffusing Lens Material PC (Polycarbonate)
Protection Type (IP Code) IP67; IP69K
Registration Type ECE approved
fulfils ECE standard R10; R148; R149; R65
Temperature range from [°C] -40
Temperature range to [°C] 65
Reference number 45
fulfils EMC/CISPR standard CISPR 25 Class 5
Theoretical luminous flux [lm] 11000
Theoretical luminous flux in Boost mode [lm] 11000
Luminous Flux [lm] 2000
Luminous in boost mode [lm] 5700

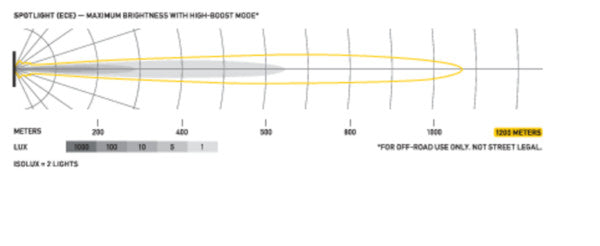

max. light cone range at 1 lux (main light function) [m] 442
max. light cone range at 1 lux (high boost function) [m] 746
Weight [g] 2810
Surface Anodized
Assy./disassy. by qualified personnel required!
Brand HELLA
Product line DynaRay
Brief Information: Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
