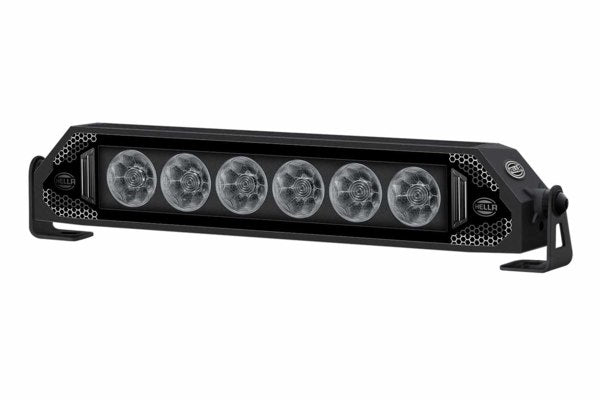

Hella DynaRay Slim LED Lightbar 14" with Strobe & Position Light

Hella DynaRay Slim LED Lightbar 14" with Strobe & Position Light

SKU: 1FJ-359-100-111

In stock

  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
  • SKU: 1FJ-359-100-111
1 12
Product Details Related Products Reviews

Product Details

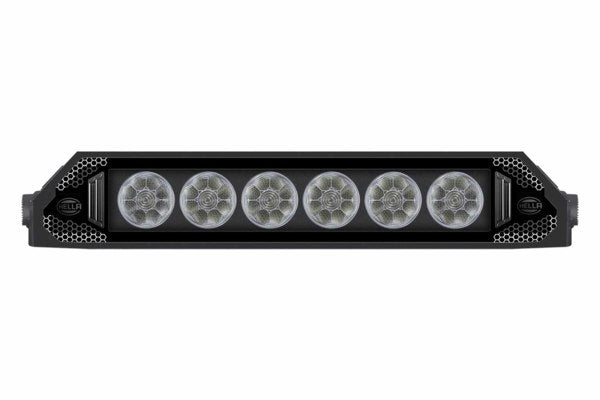

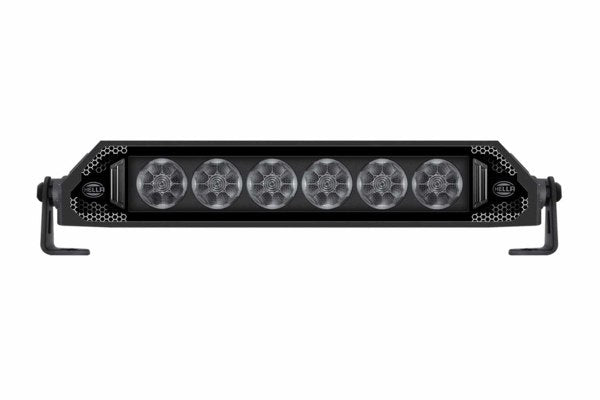

The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.

Sturdy, versatile and stylish – the perfect addition to your range.

Description:
  • Length: 366mm - Height: 63mm - Depth: 61.5mm - Overall Height: 81mm - Lamp Type: LED - Number of LEDs: 40
  • Light functions: 3 - with high beam (LED)/with position light (LED)/with flashing warning signal/High-boost
  • Registration Type: ECE - fulfils ECE standard: R10/R148/R149/R65 - Prot.type (IP Code): IP69K/IP67
  • Housing material: Aluminium - Housing Colour: black - Light colour: white/yellow (amber) - Frame Colour: black - Anodized - Diffusing Lens Material: PC (Polycarbonate) - Lens Colour: Crystal clear
  • Mounting Type: Bolted - Fastening Type: Screw connection
  • HELLA DynaRay 14'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).

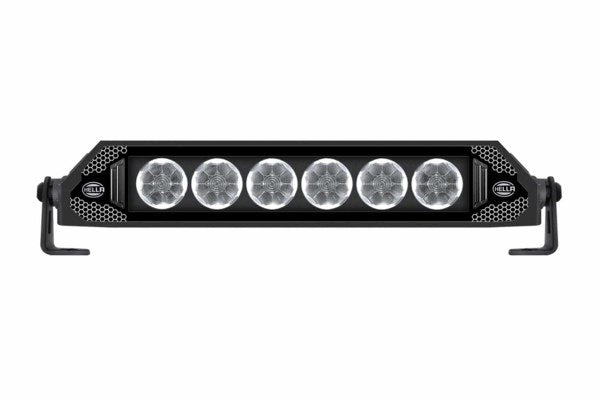

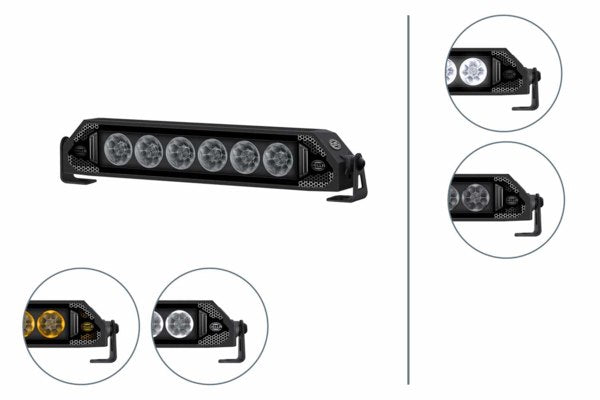

  • Integrated light functions: Spot, high-boost mode, position light (white and amber) and warning flash function.

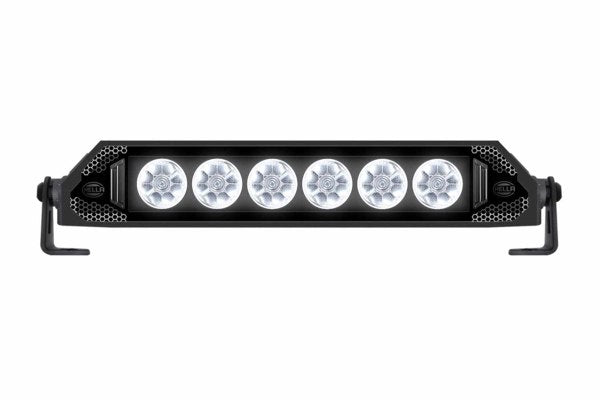

  • High beam: ECE Ref. 37.5. Powerful light output of 2,400 lumens (ECE) and up to 3,500 lumens in high-boost mode (off-road only).
  • With warning flash function (ECE R65) and welcome/goodbye light.

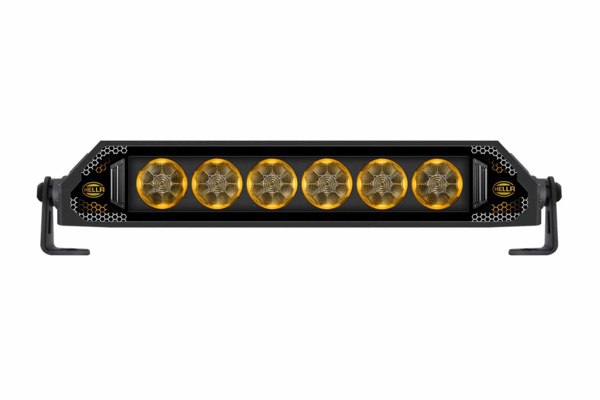

  • Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type Bolted
Fastening Type Screw connection
Lamp Type LED
Light Design single line LED
Voltage [V] 12; 24
Rated Power [W] 83,6
Voltage from [V] 10
Voltage to [V] 30
Fitting Position Front
Height [mm] 63
Length [mm] 366
Depth [mm] 61.5
Overall Height [mm] 81
Light Function High-boost; with flashing warning signal; with high beam (LED); with position light (LED)
Number of light functions 3
Number of LEDs 40
Cable Length [mm] 1500
Light colour white; yellow (amber)
Colour Temperature [K] 6800
Plug Type DEUTSCH plug
Frame Colour black
Lens Colour Crystal clear
Housing material Aluminium
Housing Colour black
Diffusing Lens Type Clear diffusing lens
Diffusing Lens Material PC (Polycarbonate)
Protection Type (IP Code) IP67; IP69K
Registration Type ECE approved
fulfils ECE standard R10; R148; R149; R65
fulfils EMC/CISPR standard CISPR 25 Class 5
Temperature range from [°C] -40
Temperature range to [°C] 65
Reference number 37.5
Theoretical luminous flux [lm] 4800
Theoretical luminous flux in Boost mode [lm] 3500
Luminous Flux [lm] 2400
Luminous in boost mode [lm] 3500
max. light cone range at 1 lux (main light function) [m] 383
max. light cone range at 1 lux (high boost function) [m] 453
Weight [g] 1590
Surface Anodized
Assy./disassy. by qualified personnel required!
Brand HELLA
Product line DynaRay
Brief Information: Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.
