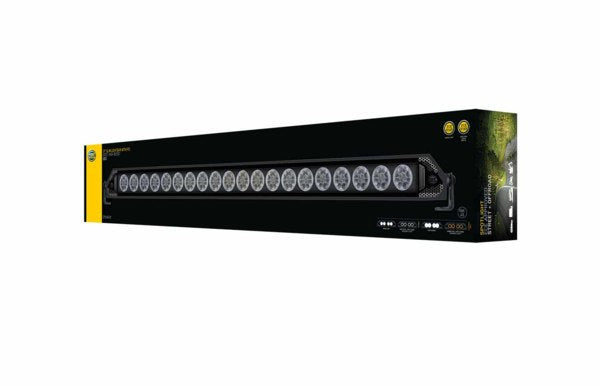

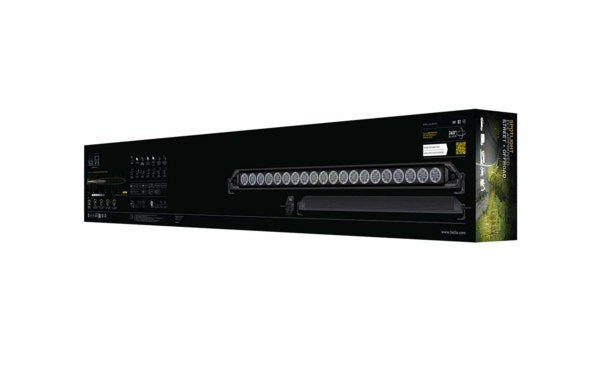

Hella DynaRay Slim LED Lightbar 37" with Position Light

Hella DynaRay Slim LED Lightbar 37" with Position Light

SKU: 1FJ-359-100-301

In stock

  • SKU: 1FJ-359-100-301
  • SKU: 1FJ-359-100-301
  • SKU: 1FJ-359-100-301
  • SKU: 1FJ-359-100-301
  • SKU: 1FJ-359-100-301
  • SKU: 1FJ-359-100-301
  • SKU: 1FJ-359-100-301
  • SKU: 1FJ-359-100-301
1 8
Product Details Related Products Reviews

Product Details

The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.

Sturdy, versatile and stylish – the perfect addition to your range.

Description:
  • Length: 930mm - Height: 63mm - Depth: 61.5mm - Overall Height: 86mm - Lamp Type: LED - Number of LEDs: 104
  • Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
  • Registration Type: ECE - fulfils ECE standard: R10/R148/R149 - Prot.type (IP Code): IP69K/IP67
  • Housing material: Aluminium - Housing Colour: black - Light colour: white/yellow (amber) - Frame Colour: black - Anodized - Diffusing Lens Material: PC (Polycarbonate) - Lens Colour: Crystal clear
  • Mounting Type: Bolted - Fastening Type: Screw connection
  • HELLA DynaRay 37'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).
  • Integrated light functions: Spot, high-boost mode, position light (white and amber).
  • High beam headlamp: ECE Ref. 45. Powerful light output of 3,158 lumens (ECE) and up to 11,346 lumens in high-boost mode (off-road only).
  • With innovative welcome/goodbye light function.
  • Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type Bolted
Fastening Type Screw connection
Lamp Type LED
Light Design single line LED
Voltage [V] 12; 24
Rated Power [W] 216,8
Voltage from [V] 10
Voltage to [V] 30
Fitting Position Front
Height [mm] 63
Length [mm] 930
Depth [mm] 61.5
Overall Height [mm] 86
Light Function High-boost; with high beam (LED); with position light (LED)
Number of LEDs 104
Number of light functions 2
Cable Length [mm] 1500
Light colour white; yellow (amber)
Colour Temperature [K] 6800
Theoretical luminous flux [lm] 16000
Luminous in boost mode [lm] 5880
Plug Type DEUTSCH plug
Frame Colour black
Housing Colour black
Lens Colour Crystal clear
Diffusing Lens Type Clear diffusing lens
Diffusing Lens Material PC (Polycarbonate)
Protection Type (IP Code) IP67; IP69K
Housing material Aluminium
Registration Type ECE approved
Luminous Flux [lm] 3158
fulfils ECE standard R10; R148; R149
Temperature range from [°C] -40
Temperature range to [°C] 85
Reference number 45
max. light cone range at 1 lux (main light function) [m] 430
Weight [g] 3590
Surface Anodized
Assy./disassy. by qualified personnel required!
Brand HELLA
Product line DynaRay
