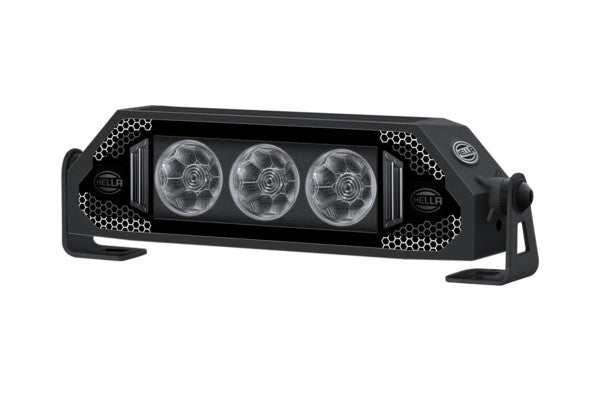

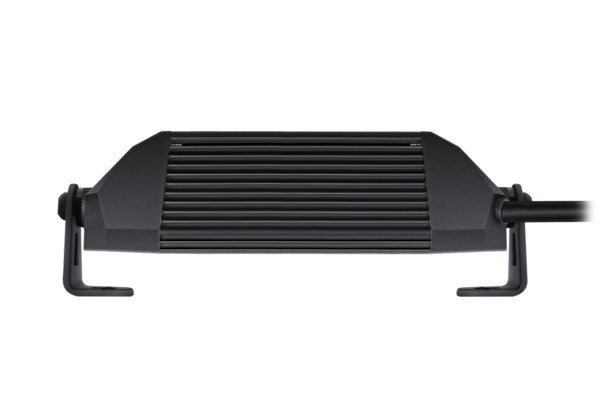

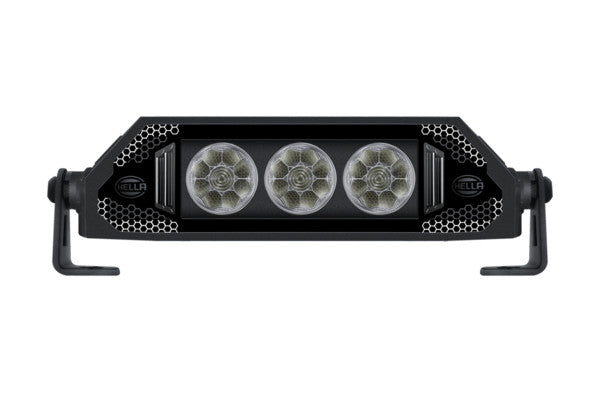

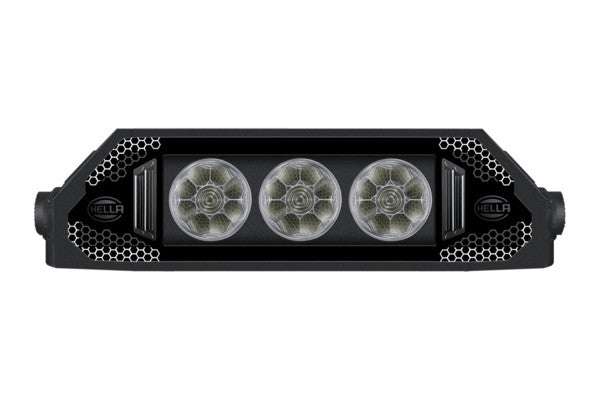

Hella DynaRay Slim LED Lightbar 9.6" with Position Light

Hella DynaRay Slim LED Lightbar 9.6" with Position Light

SKU: 1FF-359-100-001

In stock

  • SKU: 1FF-359-100-001
  • SKU: 1FF-359-100-001
  • SKU: 1FF-359-100-001
  • SKU: 1FF-359-100-001
  • SKU: 1FF-359-100-001
  • SKU: 1FF-359-100-001
  • SKU: 1FF-359-100-001
  • SKU: 1FF-359-100-001
1 8
Product Details Related Products Reviews

Product Details

The sleek DynaRay Slim delivers powerful light output in a compact design. It is easy to install, fits into tight spaces and is therefore an attractive solution for many off-road‑ and commercial vehicle applications.

Sturdy, versatile and stylish – the perfect addition to your range.

Description:
  • Length: 245mm - Height: 63mm - Depth: 61.5mm - Overall Height: 86mm - Lamp Type: LED - Number of LEDs: 19
  • Light functions: 2 - with high beam (LED)/with position light (LED)/High-boost
  • Registration Type: ECE - fulfils ECE standard: R10/R148/R149 - Prot.type (IP Code): IP69K/IP67
  • Housing material: Aluminium - Housing Colour: black - Light colour: white/yellow (amber) - Frame Colour: black - Anodized - Diffusing Lens Material: PC (Polycarbonate) - Lens Colour: Crystal clear
  • Mounting Type: Bolted - Fastening Type: Screw connection
  • HELLA DynaRay 9.6'' Slim light bar. Striking design with precisely positioned LEDs in a radiantly brilliant look for vibrant lighting accents. Housing made of anodised aluminium (coated).

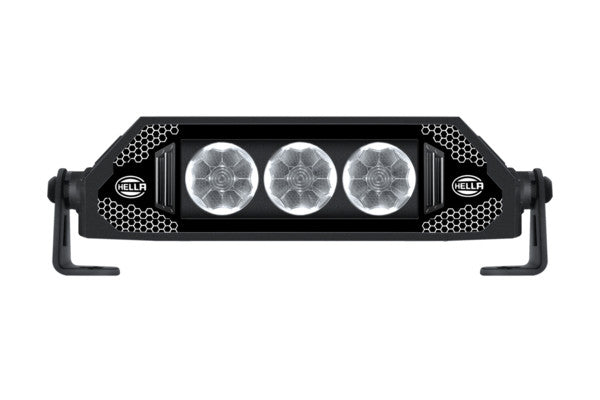

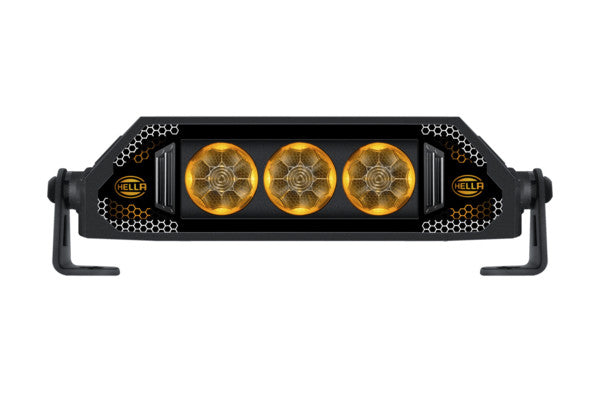

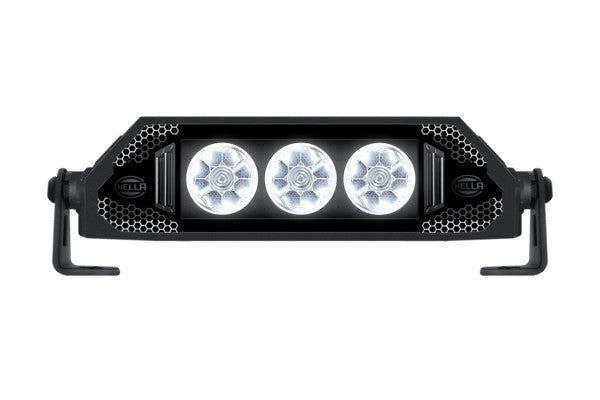

  • Integrated light functions: Spot, high-boost mode, position light (white and amber).
  • High beam: ECE Ref. 17.5. Powerful light output of 1,000 lumens (ECE) and up to 1,600 lumens in high-boost mode (off-road only).
  • With innovative welcome/goodbye light function.
  • Approved in accordance with ECE R10, R148 (white position light), R149; amber position light only permitted off-road. EMC tested in accordance with CISPR 25, Class 3.
Mounting Type Bolted
Fastening Type Screw connection
Lamp Type LED
Light Design single line LED
Voltage [V] 12; 24
Rated Power [W] 33,5
Voltage from [V] 10
Voltage to [V] 30
Fitting Position Front
Height [mm] 63
Length [mm] 245
Depth [mm] 61.5
Overall Height [mm] 86
Light Function High-boost; with high beam (LED); with position light (LED)
Number of light functions 2
Number of LEDs 19
Cable Length [mm] 1500
Lens Colour Crystal clear
Light colour white; yellow (amber)
Colour Temperature [K] 6800
Plug Type DEUTSCH plug
Frame Colour black
Housing material Aluminium
Housing Colour black
Diffusing Lens Material PC (Polycarbonate)
Diffusing Lens Type Clear diffusing lens
Protection Type (IP Code) IP67; IP69K
Registration Type ECE approved
fulfils ECE standard R10; R148; R149
Temperature range from [°C] -40
Temperature range to [°C] 65
Reference number 17.5
Luminous Flux [lm] 1000
Luminous in boost mode [lm] 1600
Theoretical luminous flux [lm] 2400
Theoretical luminous flux in Boost mode [lm] 2400
max. light cone range at 1 lux (main light function) [m] 270
max. light cone range at 1 lux (high boost function) [m] 325
Weight [g] 1170
Surface Anodized
Assy./disassy. by qualified personnel required!
Brand HELLA
Product line DynaRay
