LAZER LAMPS Ford Transit Custom Electric (2024+) - Grille Mount Kit (includes: 2x Triple-R 750 (Gen2), 1x Grille Mount Brackets, 1x 2L-LP-PL-120)

LAZER LAMPS Ford Transit Custom Electric (2024+) - Grille Mount Kit (includes: 2x Triple-R 750 (Gen2), 1x Grille Mount Brackets, 1x 2L-LP-PL-120)

SKU: GK-FTC-06K

In stock

  • SKU: GK-FTC-06K
  • SKU: GK-FTC-06K
  • SKU: GK-FTC-06K
  • SKU: GK-FTC-06K
  • SKU: GK-FTC-06K
  • SKU: GK-FTC-06K
  • SKU: GK-FTC-06K
  • SKU: GK-FTC-06K
  • SKU: GK-FTC-06K
1 9
Product Details Related Products Reviews

Product Details

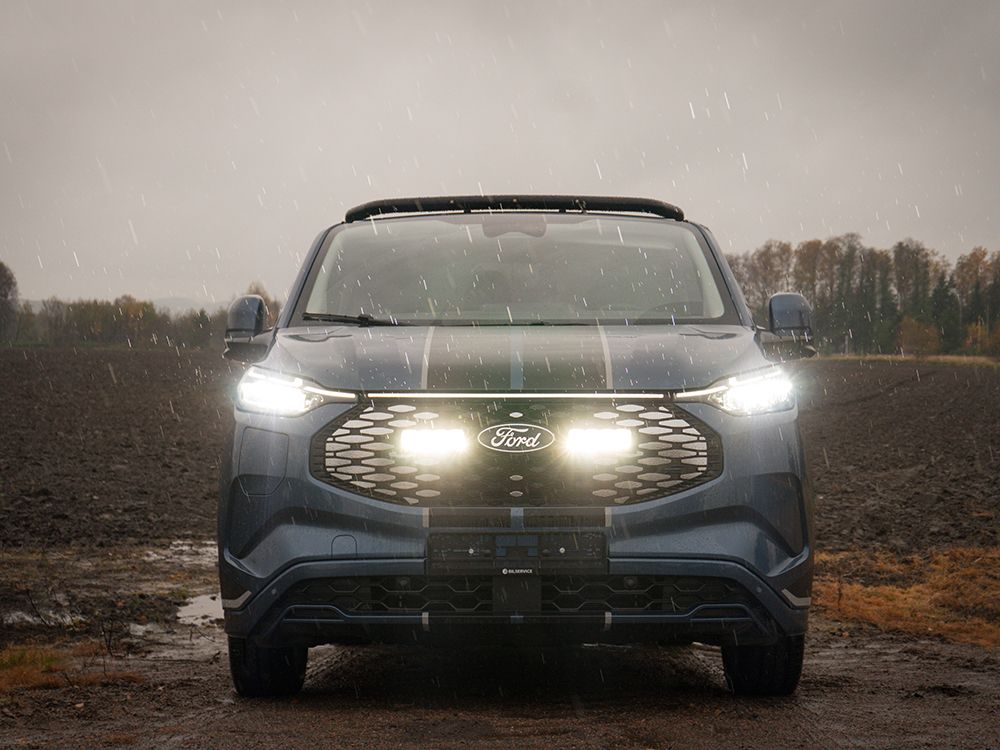

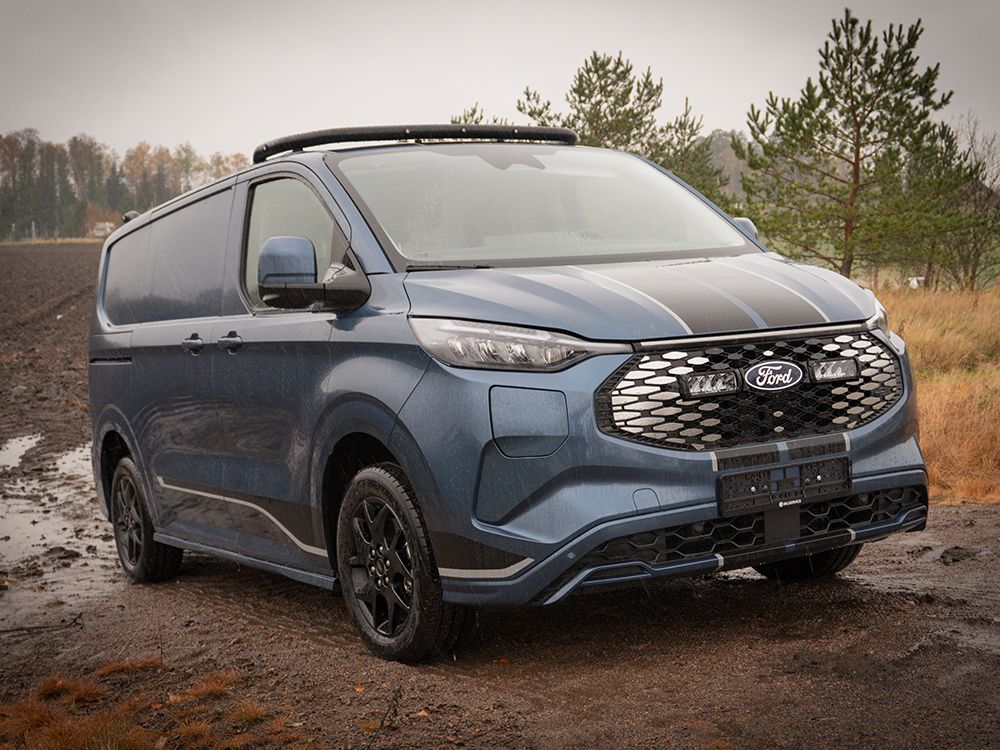

Upgrade the look and performance of your Ford Transit Custom Electric (2024+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.

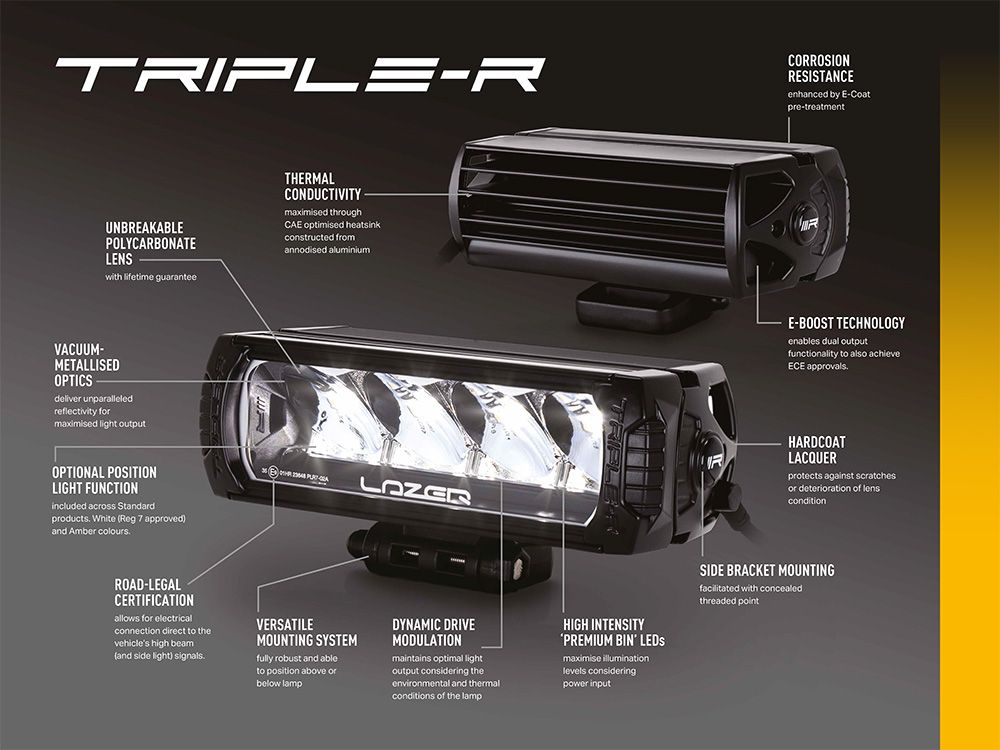

Each kit includes a pair of Triple-R 750 High Performance LED driving lights, available in four variants to suit different driving needs. The Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent distance and spread, plus integrated Position Light function. The Wide offers a broader beam and a lower ECE Regulation 149 reference - no boost cap required, making it ideal for customers in countries with specific lighting regulations. Designed for versatility, the Beacon variant has an integrated amber beacon and Position Light function, along with advanced features like flash-to-dim. For maximum performance, the Elite delivers superior optics and extended range for serious night-time driving.

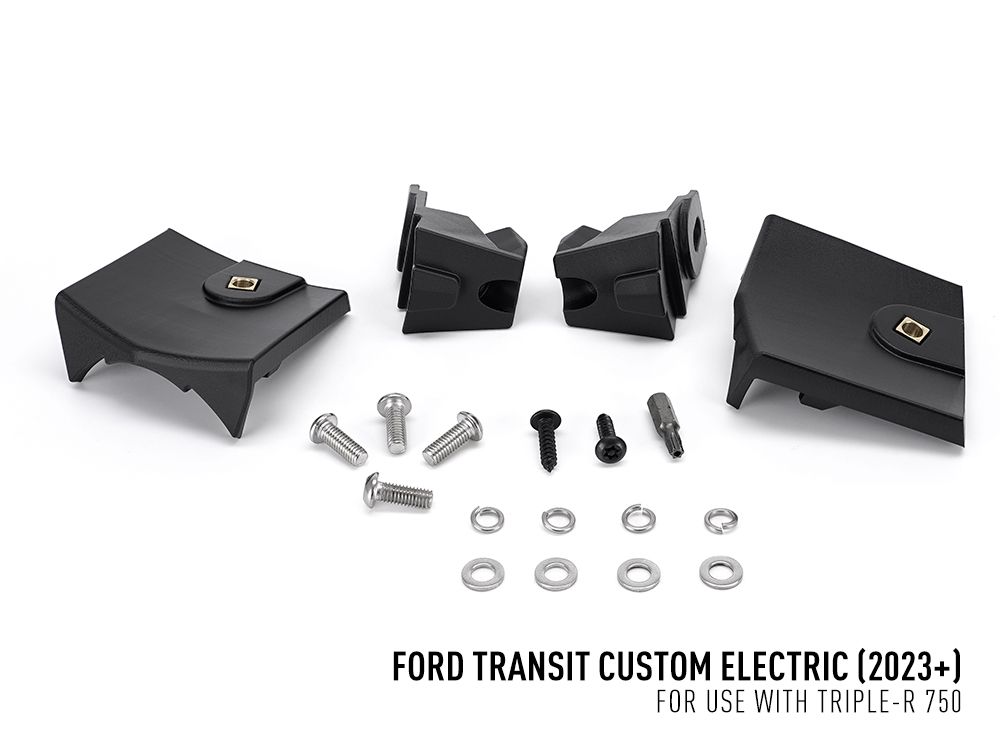

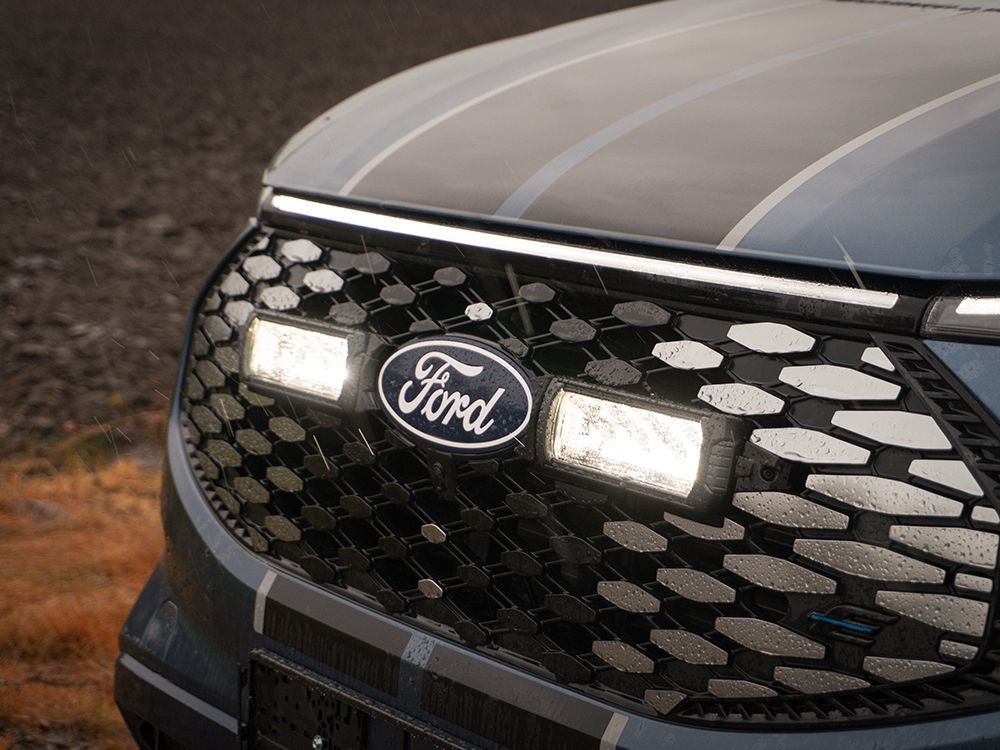

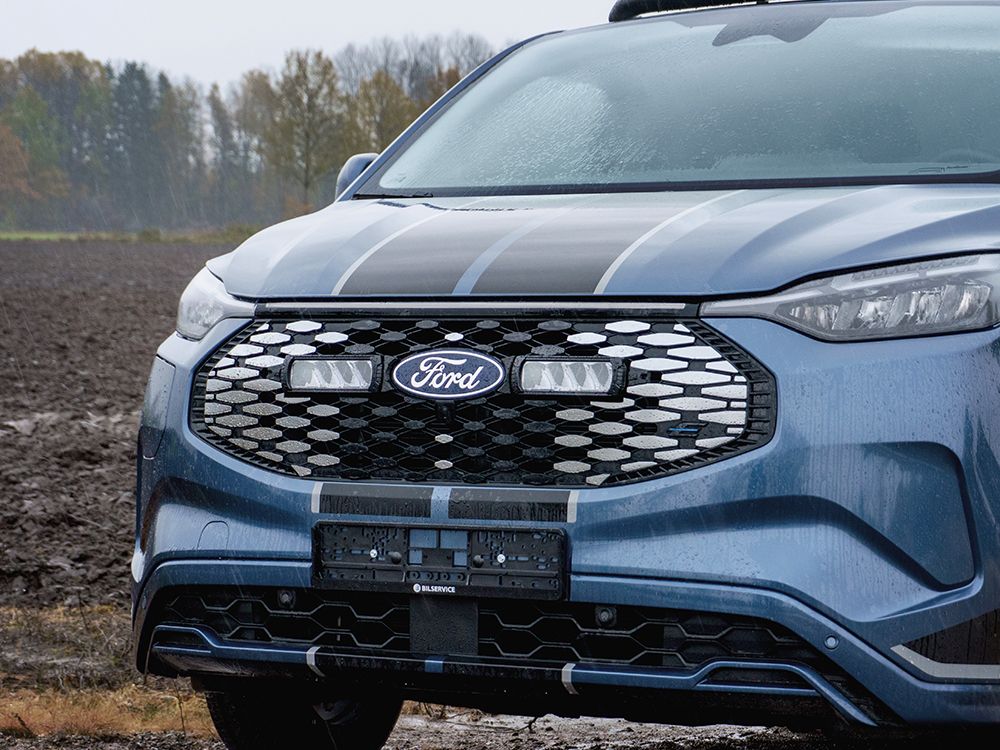

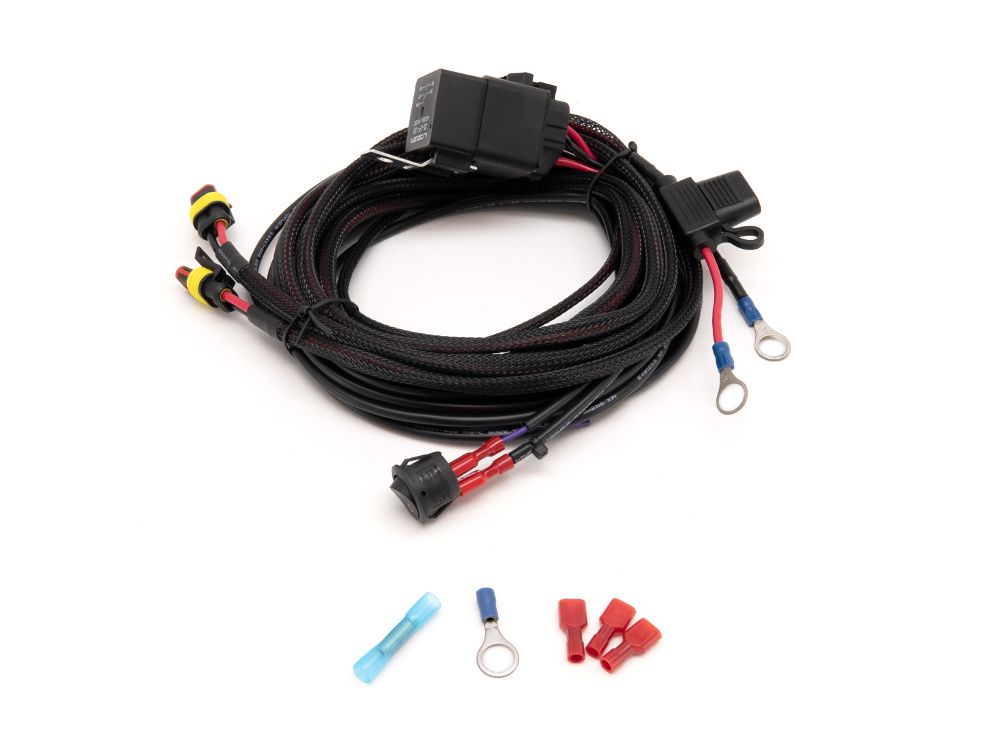

The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.

Please note: Ford Transit Custom Electric (2024+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

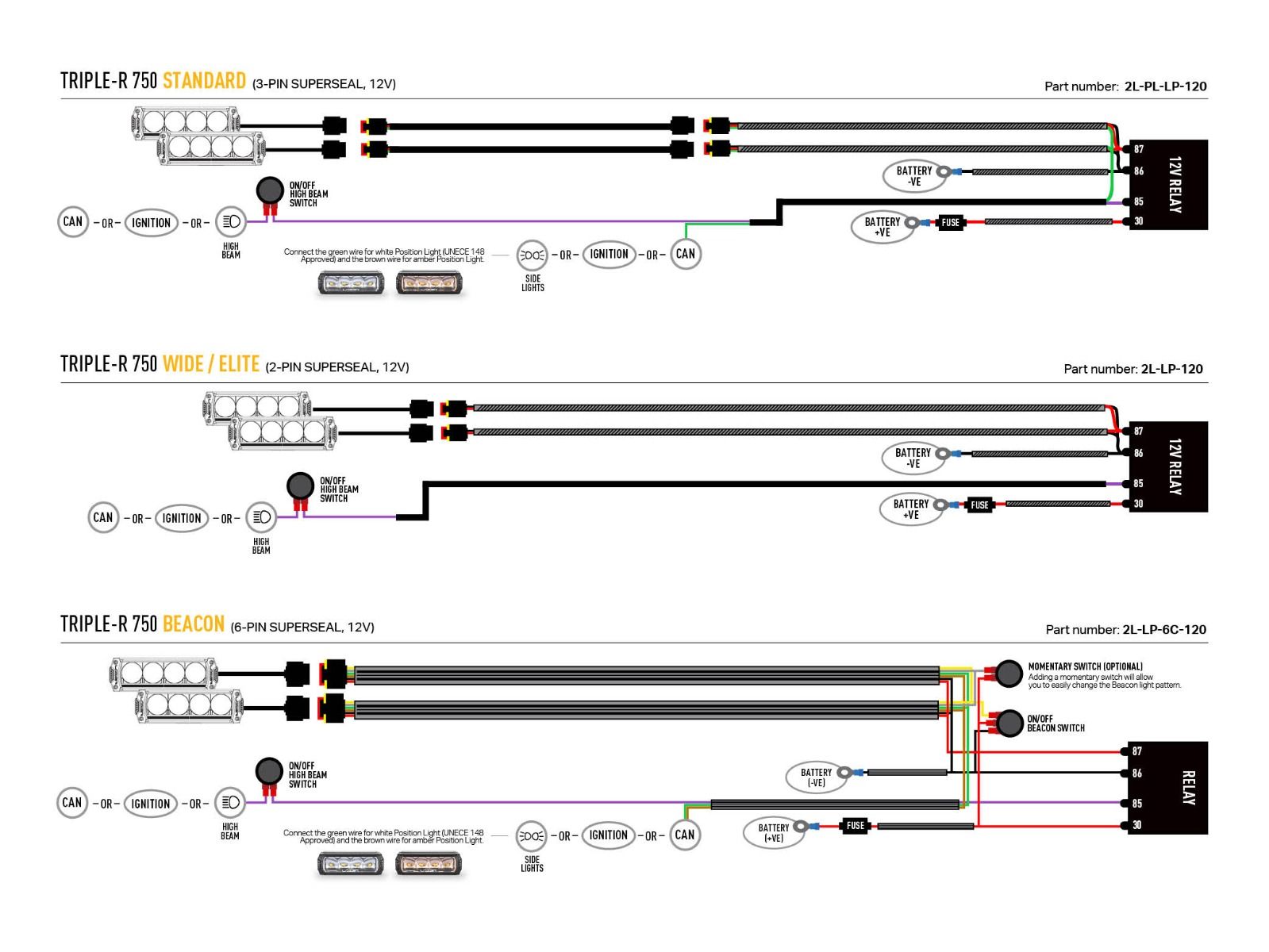

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.

Technical Specifications



2x
TRIPLE-750
WIDE

2x
TRIPLE-R 750

2x TRIPLE-R 750
BEACON
(BOOST MODE)

2x
TRIPLE-R 750 ELITE
(BOOST MODE)

Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours 50,000 hours
Weight 2.6 kg 2.6 kg 2.6 kg 2.6 kg

HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm 9240 Lm 10800 Lm

10136 Lm
Total Driver 'FOV' Flux † 5266 Lm 5572 Lm 2484 Lm 6680 Lm
Colour Temperature 5000K 5000K 5000K 5000K
Power Consumption 88 Watts 88 Watts 104 Watts 104 Watts
Current Draw (14.4V) 6.2 Amps 6.2 Amps 7.4 Amps 7.2 Amps
Connector 2-Pin Superseal
(+25cm Cable)		 3-Pin Superseal
(+25cm Cable)		 6-Pin Superseal
(+25cm Cable)		 2-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68 IP68 IP68
High Beam
(E9 approval)		 ECE R149 - Ref: 2x 20 ECE R112 - Ref: 2x 35 ECE R149 - Ref: 2x 10 (Low Output Mode) ECE R112 - Ref: 2x 12.5
(Low Output Mode)
Position Light (White) N/A ECE R7 ECE R7 N/A
EMC Certification ECE R10 ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2

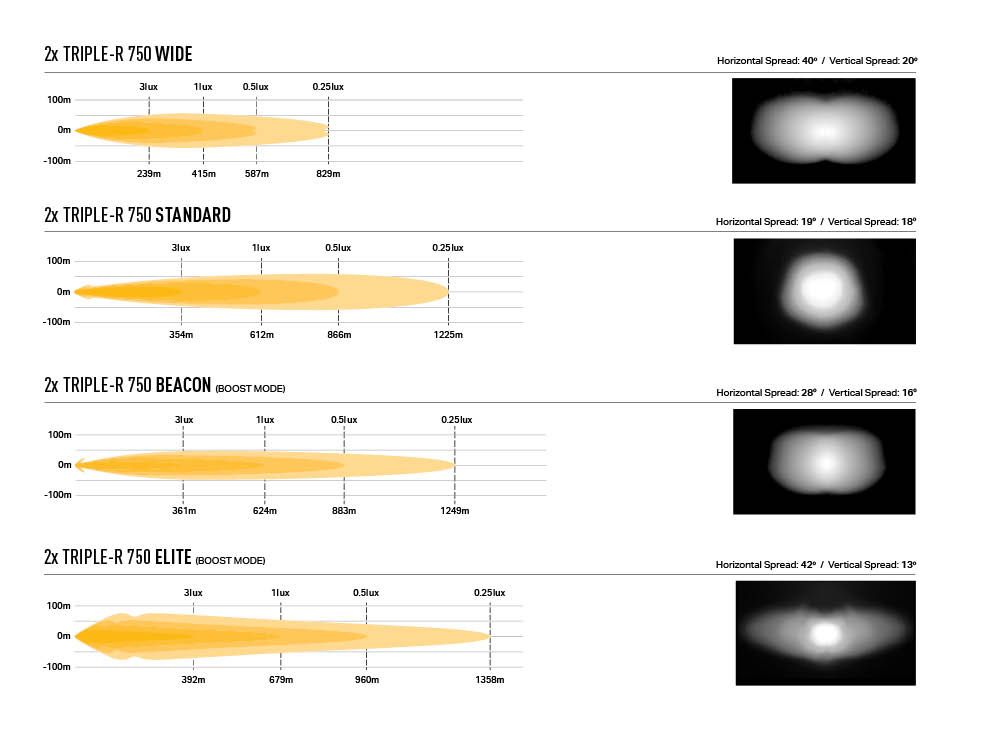

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 40° / 20° 19° / 18° 28° / 16° 42° / 13°
0.25 Lux 829m 1225m 1249m 1358m
0.5 Lux 587m 866m 883m 960m
1 Lux 415m 612m 624m 679m
3 Lux 239m 354m 361m 392m



† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
