LAZER LAMPS Mercedes X-Class (2017-2020) - Grille Mount Kit (includes: 2x Triple-R 750 Beacon, 1x Grille Mount Brackets, 1x 2L-LP-6C-120)

LAZER LAMPS Mercedes X-Class (2017-2020) - Grille Mount Kit (includes: 2x Triple-R 750 Beacon, 1x Grille Mount Brackets, 1x 2L-LP-6C-120)

SKU: GK-MBX-BCN-01K

In stock

  • SKU: GK-MBX-BCN-01K
  • SKU: GK-MBX-BCN-01K
  • SKU: GK-MBX-BCN-01K
  • SKU: GK-MBX-BCN-01K
  • SKU: GK-MBX-BCN-01K
  • SKU: GK-MBX-BCN-01K
1 6
Product Details Related Products Reviews

Product Details

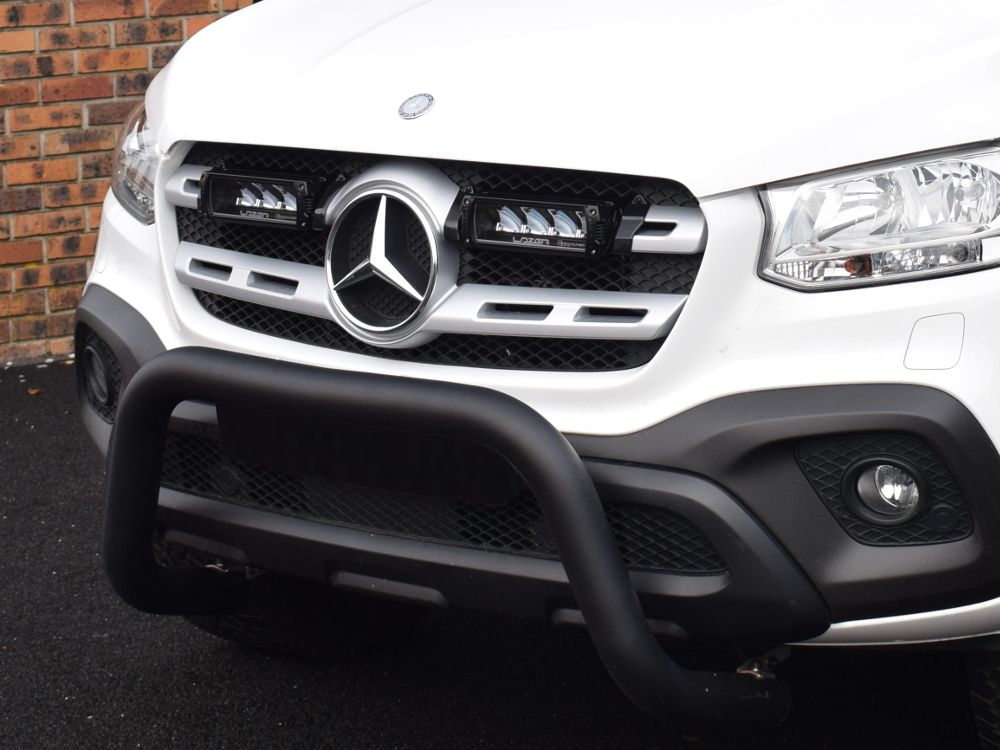

For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure. The Mercedes X-Class integration kit is available for either a pair of ST4 Evolution or Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time. The Mercedes X-Class (2017+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 or ST4 Evolution High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products. Please note the mounting brackets are different depending on whether the light installation is for Triple-R 750 or ST4 lights. It is recommended when fitting the grille kit to the V6 model X-Class to use ST4 lights, given the improved fit considering the larger intercooler behind the front grille.

  • Bespoke mounting bracket kit for Lazer LED Spotlight installation
  • Custom fit for Mercedes X-Class

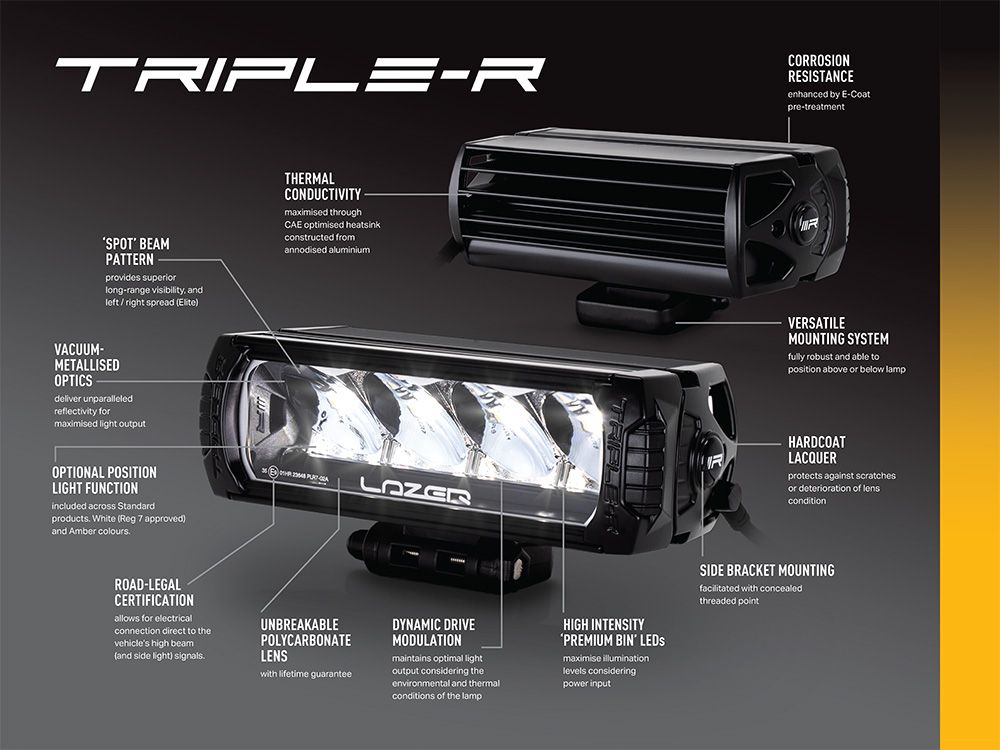

  • Available with: Triple-R 750 or ST4 Evolution High Performance LED Spotlights

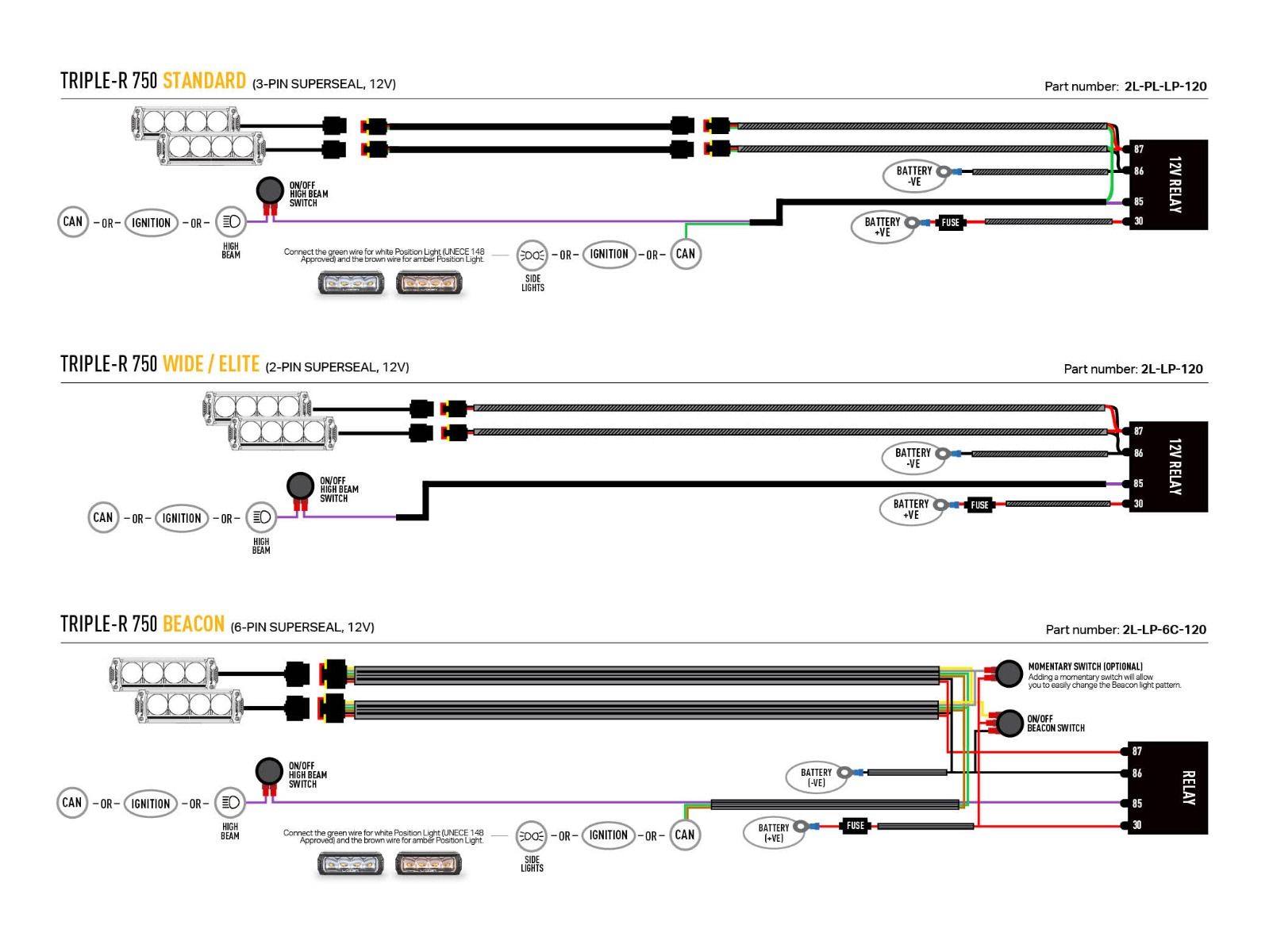

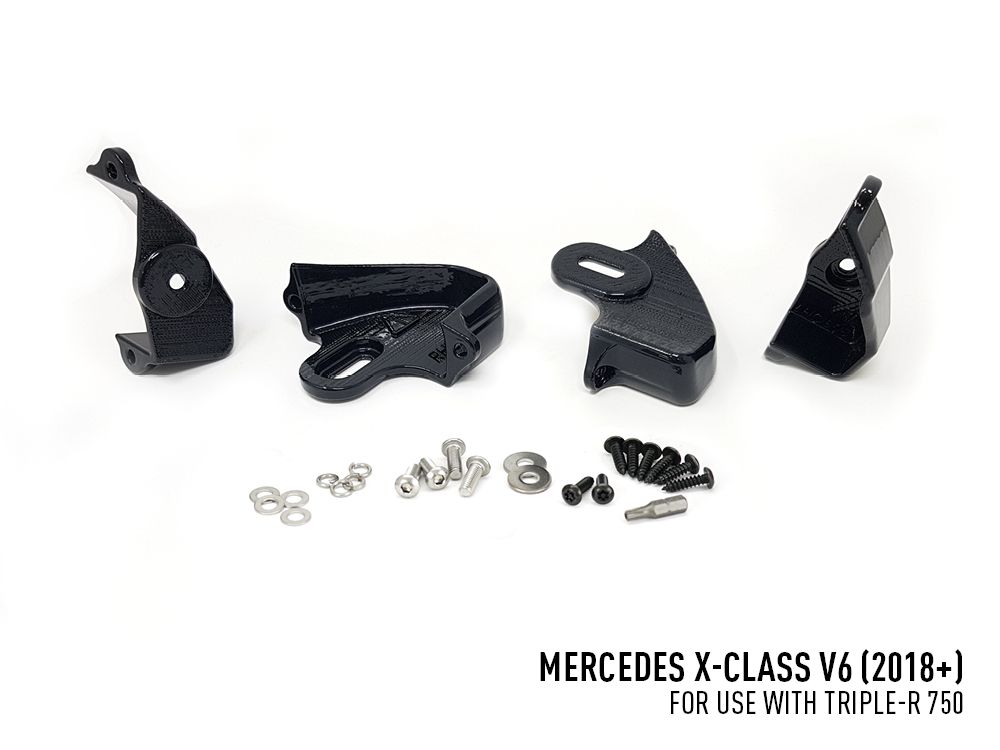

  • Kits include: 4x brackets, cutting guides, wiring loom, and fasteners
  • Made from high strength, UV-stable, composite material
  • Fully UNECE approved for on-road use
  • 5-year warranty
  • Made in Britain
Variant Weight 2600
Variant Weight Unit g
Total Luminous Flux 10800
Colour Temperature 5000k
Power Consumption (Watt) 104
Current Draw (at 14.4V) (Amper) 7.4
Width (mm) 230
Depth (mm) 105
Height (mm) 73

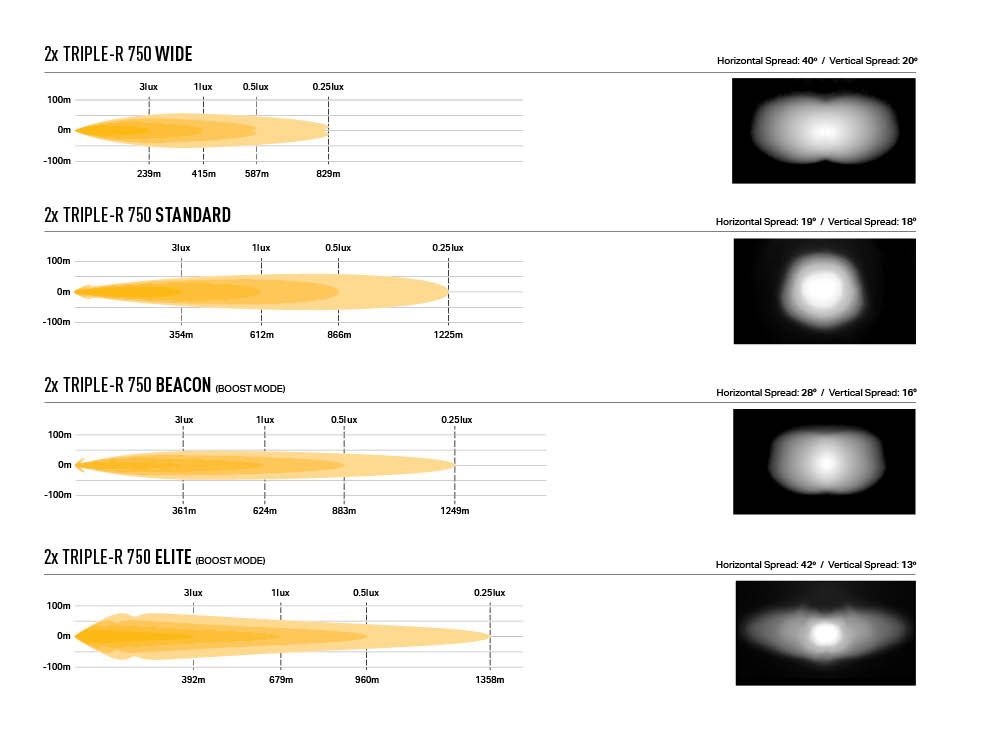

Hor. Beam Angle (degrees) 28
0.25 lx Line (meters) 1249
0.5 lx Line (meters) 883
1 lx Line (meters) 624
3 lx Line (meters) 361
