LAZER LAMPS Sentinel 7" Elite+

LAZER LAMPS Sentinel 7" Elite+

SKU: 0S7-PLUS-PL2-DT

In stock

  • SKU: 0S7-PLUS-PL2-DT
  • SKU: 0S7-PLUS-PL2-DT
  • SKU: 0S7-PLUS-PL2-DT
  • SKU: 0S7-PLUS-PL2-DT
  • SKU: 0S7-PLUS-PL2-DT
  • SKU: 0S7-PLUS-PL2-DT
  • SKU: 0S7-PLUS-PL2-DT
  • SKU: 0S7-PLUS-PL2-DT
  • SKU: 0S7-PLUS-PL2-DT
1 9
Product Details What's Included?Related Products Reviews

Product Details

Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing colour temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.

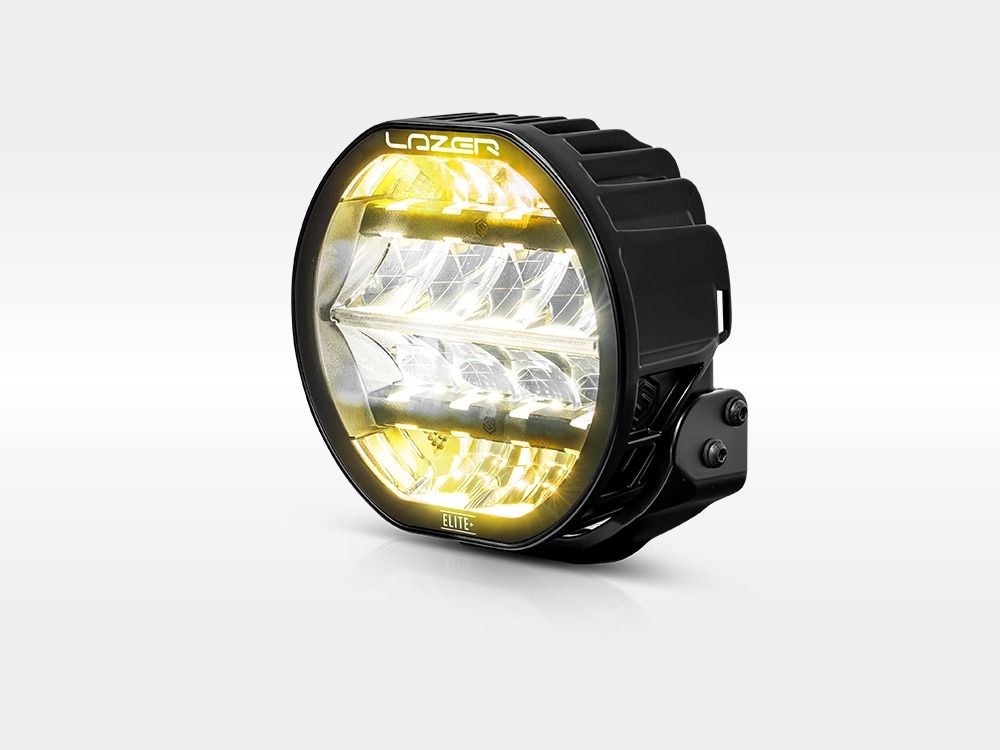

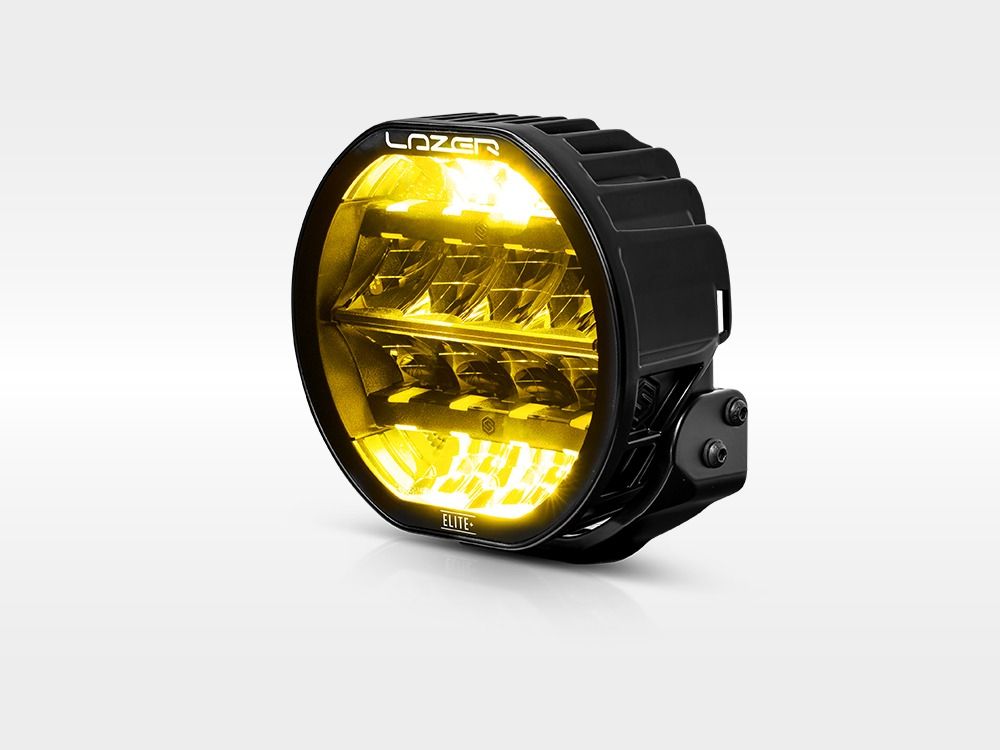

The lights are intended to cycle through the different lighting modes via a momentary switch. The lighting modes are: Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only), and E-mark (white only; road-legal at reduced output compliant with UNECE Reg 149). Additionally, pressing and holding the momentary switch for 2 seconds will result in the light instantly jumping to the E-mark mode.

The addition of Elite+ products to the Sentinel range further reinforces the products status as market-leading round LED lights for all branches of the automotive sector. With the light operating in Boost mode the white LEDs produce 11,214 raw lumen, then switching to ‘Combo’ mode the white and yellow LEDs combine to produce nearly 15,000 raw lumen representing incredible lighting performance for an LED light of its size. All LEDs operating in combination results in 145W power consumption and 11.3Amps current draw (at 14V). To support operation of the lamp and electrical installation, it is recommended to use Lazer’s 2-Lamp DT4 wiring kit (2L-DT4-235).

Like all Lazer products, the Elite+ range has been designed, engineered, and is manufactured in-house in the UK to exacting standards, both in terms of performance, reliability, and appearance. With the light’s contemporary design, the styling and finish is impressive especially up-close, but the true wow moments comes when you turn the light on at night! Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.

  • Combination of highly efficient white (5000k) and PC-yellow LEDs.
  • Yellow LEDs optimised for use in snow / fog / dust conditions.
  • Momentary switch facilitates switching lighting modes.
  • Black PCB and bezel detail result in stealth black internal appearance
  • Ultra-reflective vacuum-metallised spot and wide optics
  • UNECE Reg 149 Class RA Driving Light, approved for on-road high beam (Low Output mode only) and Reg 148 position/side light function (white only).
  • Dynamic start-up / Welcome Mode – two options activated as/if required.
  • Contemporary lamp design
  • Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
  • Electronic thermal management system optimises light output to preserve longevity of the LEDs
  • Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
  • CAE optimised heatsink offers improved thermal dynamics
  • Over voltage protected
  • Reverse polarity protected
  • ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
  • A2 stainless steel fasteners with automotive grade black coating
  • Supplied with Lazer branded black lens cover
  • UNECE approved Reg 10
  • IP68 watertight – 1.5m submersion (30mins)
  • 5-year warranty
  • Supplied with pre-wired male/female 4-pin Deutsch connectors
  • Designed & manufactured in UK
SENTINEL 7'' ELITE+ BOOST MODE LOW OUTPUT / E-MARK MODE FOG / DUST / SNOW MODE COMBO MODE
Voltage Range (DC) 10-32V
LED Life 50,000 hrs
Weight 1.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux 11,214 Lm 2,238 Lm 3,645 Lm 14,859 Lm
Total Driver 'FOV' Flux † 6,392 Lm 1,269 Lm 2,143 Lm 8,529 Lm
Colour Temperature White LED's (5000K)) White LED's (5000K) Yellow LED's White & Yellow LED's
Power Consumption 102 Watts 20 Watts 42 Watts 145 Watts
Current Draw (14.4V) 8.1 Amps 1.9 Amps 2.9 Amps 11.1 Amps
Peak Current Draw 9.8 Amps 3.46 Amps 3.7 Amps 12.8 Amps
Connector 4-Pin Deutsch DT (+25cm Cable)
CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R149 (Class RA) - Ref: 7.5 (in Low Output mode only)
Postion Light ECE R148 (white only)
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

What's Included?

  • x1 Sentinel 7'' Elite+
  • x1 Mounting Bracket
  • x1 Black Lens Cover
  • x1 Installation Instructions
